Phoenix Contact Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 1 Safety Contacts
- RS Stock No.:
- 893-7723
- Mfr. Part No.:
- 2904952
- Manufacturer:
- Phoenix Contact
15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR840.75
| Units | Per Unit |
| 1 + | MYR840.75 |
- RS Stock No.:
- 893-7723
- Mfr. Part No.:
- 2904952
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

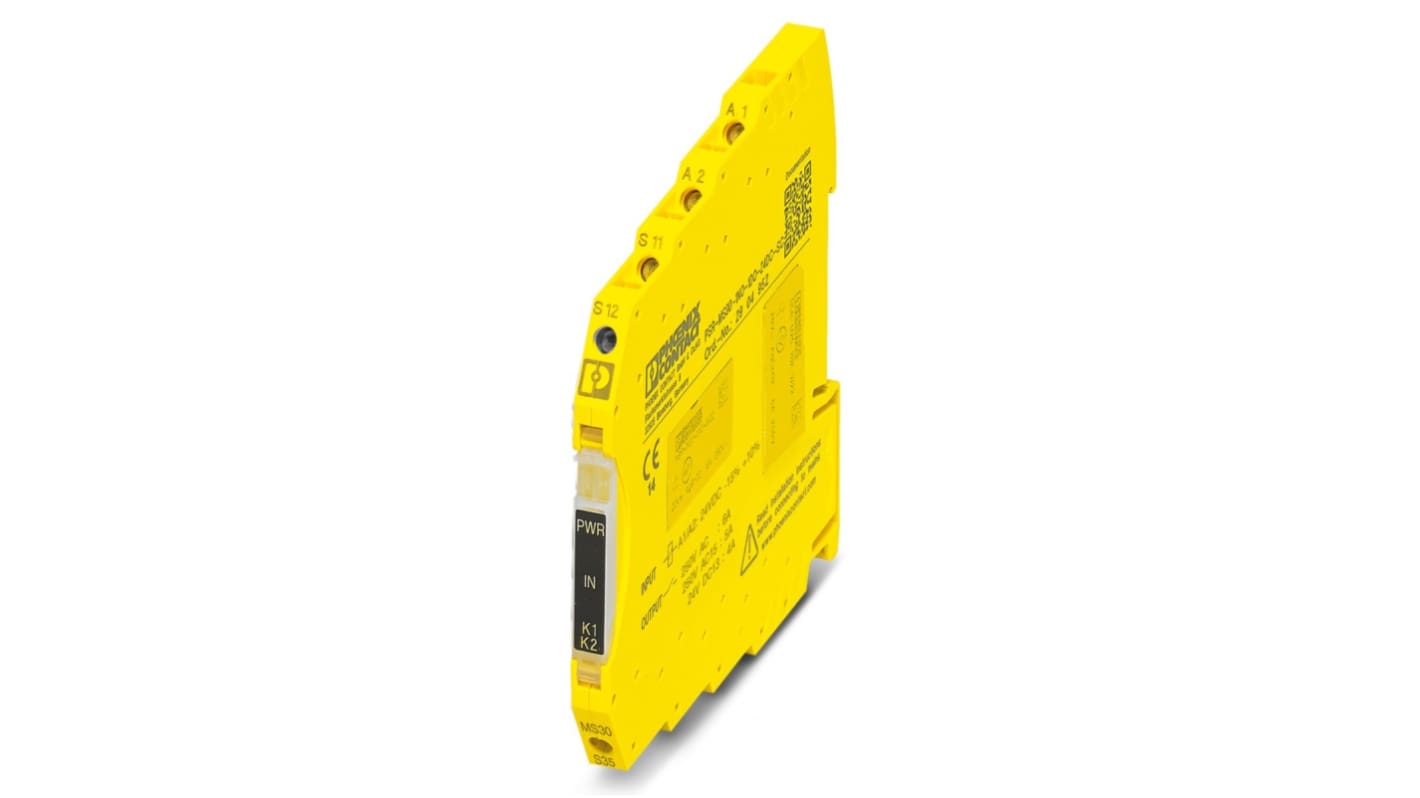

Phoenix Contact PSRmini Safety Relay
The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.
Features and Benefits
• Compatible with all important signal transmitters and safety-relevant systems
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime
Standards
EN ISO 13849-1, EN 62061, IEC 61508.
Approvals
CE, UL, cULus, TUV.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V dc |
| Number of Channels | 2 |
| Safety Contacts | 1 |
| Function | Emergency Stop, Safety Switch/Interlock |
| Auxiliary Contacts | 1 |
| Reset Method | Automatic |
| Range | PSRmini |
| Terminal Type | Screw |
| Depth | 102.5mm |
| Width | 93mm |
| Series | PSR-MS30-1NO-24DC-SC |
| Length | 7mm |
