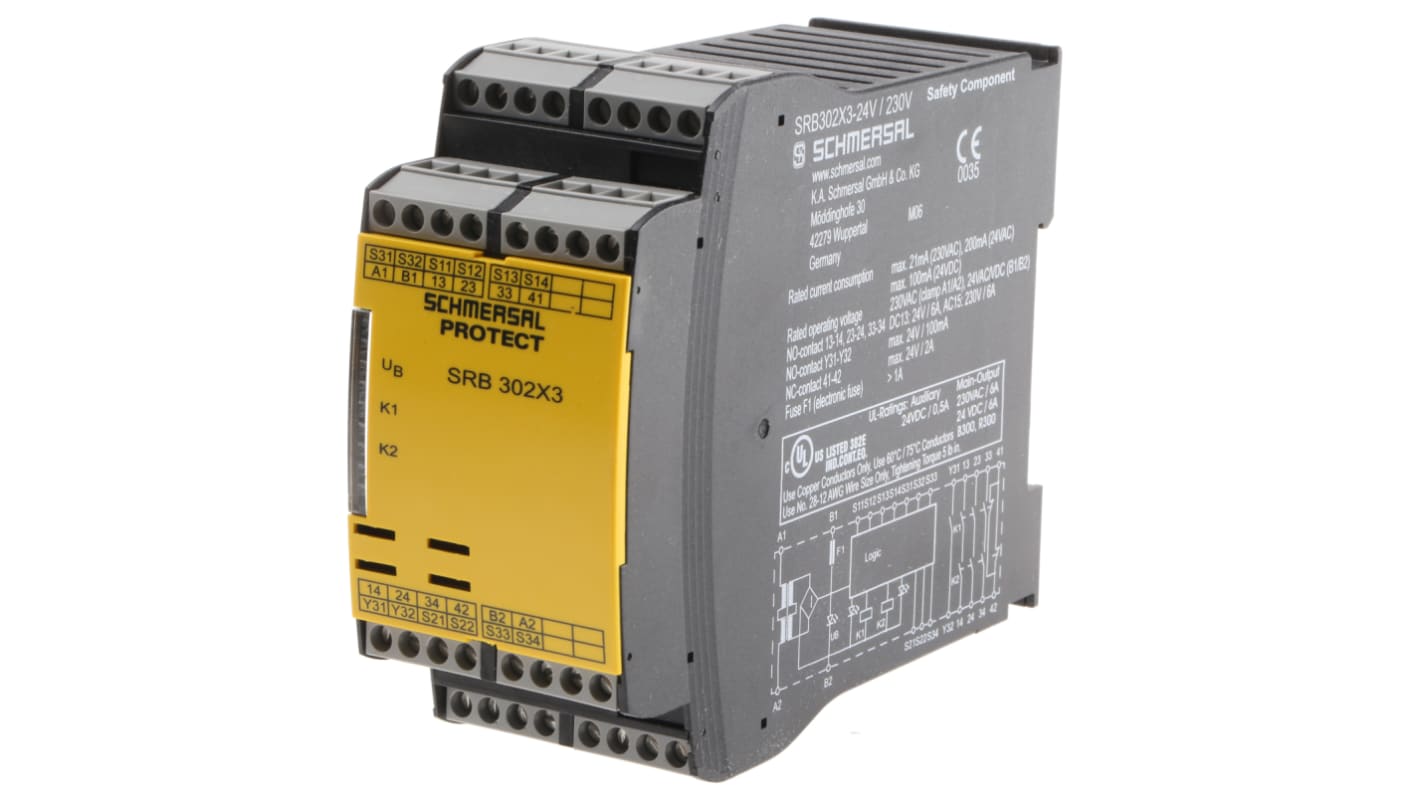

Schmersal Dual-Channel Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 24V ac, 3 Safety Contacts
- RS Stock No.:
- 741-8657
- Mfr. Part No.:
- SRB302X3-24VAC/DC-230VAC
- Manufacturer:
- Schmersal
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR2,089.39
| Units | Per Unit |
| 1 + | MYR2,089.39 |
- RS Stock No.:
- 741-8657
- Mfr. Part No.:
- SRB302X3-24VAC/DC-230VAC
- Manufacturer:
- Schmersal
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Schmersal Dual-Channel Safety Relay, 24V AC/DC, 230V AC - PROTECT SRB 302X3 Series - SRB302X3-24VAC/DC-230VAC
The PROTECT series of Safety Relays from Schmersal, specifically the SRB302X3s are known for their reliability and durability in the field.
Features and benefits
• Suitable for signal processing of potential free outputs (examples being emergency stop buttons, position switches or solenoid interlocks).
• Suitable for signal processing of outputs connected to potentials (AOPDS) for example safety light grids/curtains
• Safety contacts ranging from 3 onwards
• Signalling outputs ranging from 2 onwards
• Snap on DIN rail mounting as standard with this product allowing easy additions & removals, allowing you the flexibility and portability you require.
• Suitable for signal processing of outputs connected to potentials (AOPDS) for example safety light grids/curtains
• Safety contacts ranging from 3 onwards
• Signalling outputs ranging from 2 onwards
• Snap on DIN rail mounting as standard with this product allowing easy additions & removals, allowing you the flexibility and portability you require.
Applications
• Emergency stop buttons
• Security guards
• Emergency pull switches by cable traction
• Safety light curtain
• Security guards
• Emergency pull switches by cable traction
• Safety light curtain
Advantages of the SRB302X3
• 20 year mission time for this device, giving you the confidence in the quality of the build
• Compact in design allowing you more mounting on your DIN rail or equivalent
• Low power consumption compared to other units on the market
This safety relay is relatively maintenance-free. However, you should occasionally check the power cable for damage to ensure safe operation.
Technical safety parameters
• EN 954-1 Category - Cat 4
• EN ISO 13849-1 Performance Level – Ple
• EN 62061 SIL Claim - SIL CL 3
• EN ISO 13849-1 Performance Level – Ple
• EN 62061 SIL Claim - SIL CL 3
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V ac/dc, 230V ac |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Light Beam/Curtain, Safety Switch/Interlock |
| Auxiliary Contacts | 2 |
| Reset Method | Automatic |
| Range | PROTECT |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| SIL IEC 61508 | 3 |
| Terminal Type | Screw |
| Standards Met | IEC60947-1 |
| Series | SRB 30X3 |
| Depth | 121mm |
| Width | 45mm |
| Length | 100mm |
| Performance Level | e |
