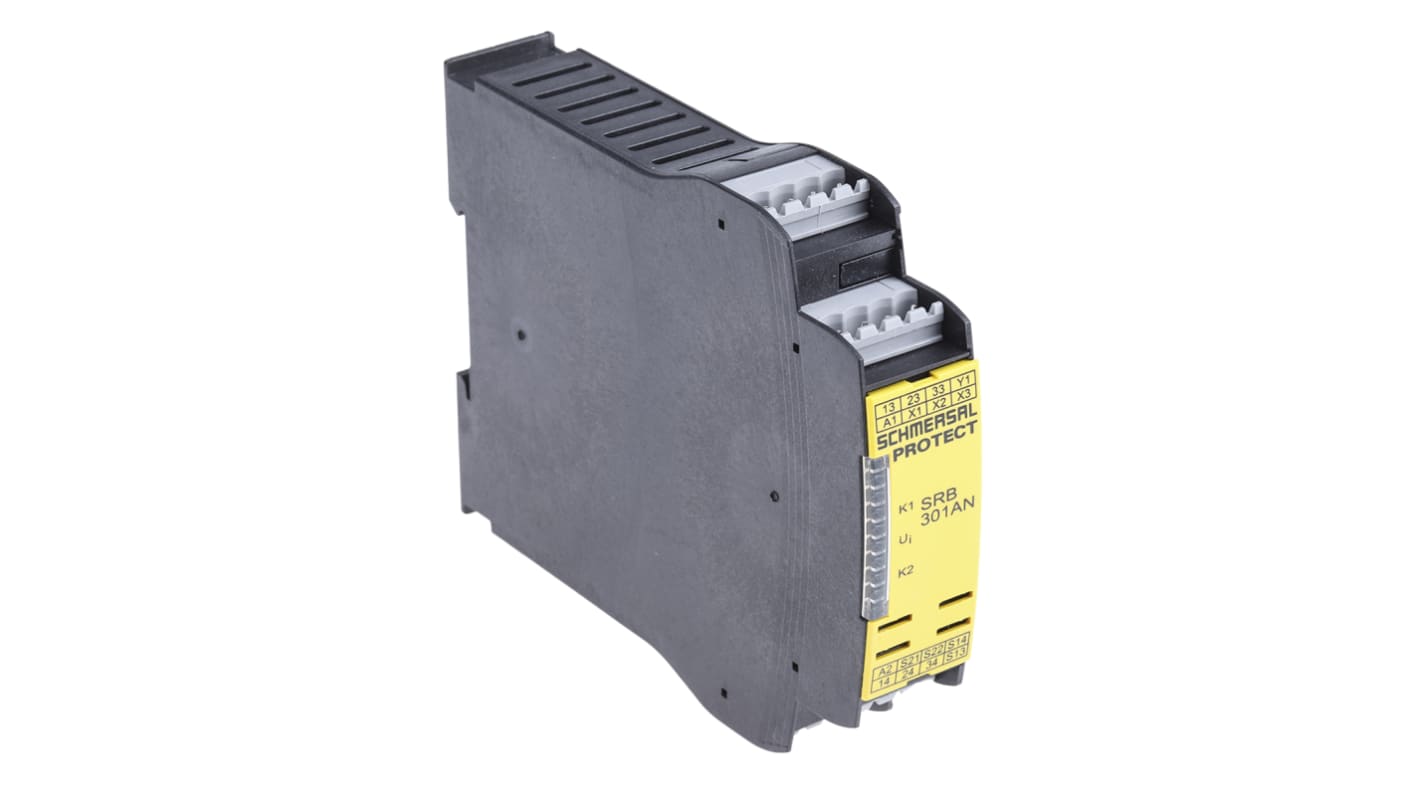

Schmersal 24 V ac/dc Safety Relay Single or Dual Channel With 4 Safety Contacts

  • RS Stock No. 741-8641
  • Mfr. Part No. SRB301AN 24VAC/DC
  • Manufacturer Schmersal
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

PROTECT SRB301 Series Safety Relays

Introducing the PROTECT SRB301 series of Safety Relays. These are a perfect fit for signal evaluation, specifically the outputs of safety magnetic switches. They function well with such safety applications like Light beams/curtains, Safety mats or Safety switches/interlocks.

Approvals

BG, USA/CAN

What are some of the features?

• Monitoring of range magnetic safety sensors
• Instantaneous safety contacts @ STOP 0
• 1 signalling output
• LED status indicators on the device to show you exactly what is going on

Advantages of the SRB301AN

• A 20 year mission time for this device, giving you the confidence in the quality of the build
• Compact in design allowing you more mounting on your DIN rail or equivalent
• Low power consumption compared to other units on the market

Technical safety parameters

• EN 954-1 Category - Cat 4
• EN ISO 13849-1 Performance Level – Ple
• EN 62061 SIL Claim - SIL CL 3

Specifications
Attribute Value
Supply Voltage 24 V ac/dc
Number of Channels 1, 2
Function Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock
Safety Contacts 4
Range PROTECT
Width 22.5mm
Length 100mm
Depth 121mm
18 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,399.97
units
Per unit
1 +
MYR1,399.97
