Phoenix Contact 24 V dc Safety Relay Single Channel With 6 Safety Contacts Compatible With Expansion Module 3

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Multi-application Modular System - PSR-SPP Series

This can be quickly and reliably assembled to form a tailor-made safety solution. To connect using TBUS correctly you will need one PSR-TBUS per module. For the last additional module use one PSR-TBUS-TP instead, this will close the feedback loop. The interface module is used for the connection of up to four safety sensors with NC/NO contacts to the safety relay PSR-SDC4, with screw connection.

Features and Benefits

Quick system extension up to 10 modules, offering a safety system with up to 42 contacts
Automatic identification of desired operating mode, no need to set switches or define parameters
The system is based on a master relay (PSR-SDC) that monitors e-stops, guard doors (interlock or non-contact) and optical devices (e.g. light curtains)
Safe cross-wiring with T-BUS renders the usual cross-wiring of supply voltage, enable signal and confirmation path redundant. Making commissioning and future expansion simple
24Vdc supply voltage
Semiconductor output
Depending on the wiring Safety category 2 or 4 can be maintained
One or Two channel switches are used for control
Note: The device has a rear interface for the DIN Rail connector T-BUS. Via this T-BUS interface extension devices PSR-URM4-B (undelayed contacts) and PSR-URD (drop-out delay contacts) can be controlled and monitored over one channel. These in combination form a T-BUS unit, the feedback path must be connected to the final (right hand) extension device (see datasheet for more details) or by using connection plug PSR-TBUS-TP

Note

The device has a rear interface for the DIN Rail connector T-BUS. Via this T-BUS interface extension devices PSR-URM4-B (undelayed contacts) and PSR-URD (drop-out delay contacts) can be controlled and monitored over one channel. These in combination form a T-BUS unit, the feedback path must be connected to the final (right hand) extension device (see datasheet for more details) or by using connection plug PSR-TBUS-TP.

PSR-SPP-24DC/URM4/4X1/2X2/B

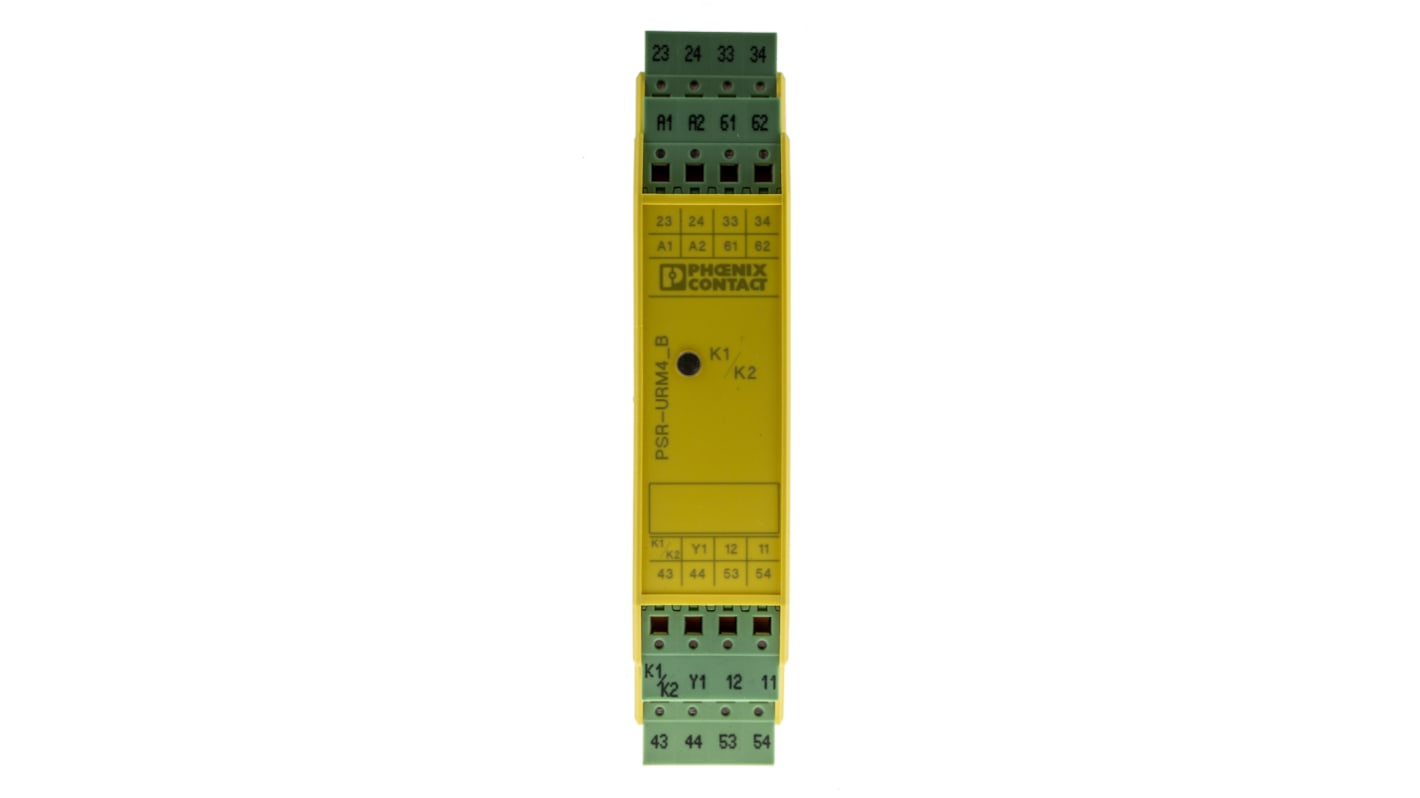

Phoenix Contact 2981680 DIN rail mounting, safety relay has screw terminals and is 22.5mm wide.

Features and Benefits

• 4 N/O contacts
• 1 N/C contact
• 1 confirmation current path

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Channels 1
Function Expansion Module
Safety Contacts 6
Safety Category 3
Terminal Type Screw
Depth 114.5mm
Width 22.5mm
Length 112mm
6 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,333.38
units
Per unit
1 +
MYR1,333.38
