Pilz 24 V ac/dc Safety Relay Single or Dual Channel With 2 Safety Contacts Compatible With Safety Switch/Interlock

  • RS Stock No. 324-7280
  • Mfr. Part No. 774325
  • Manufacturer Pilz
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

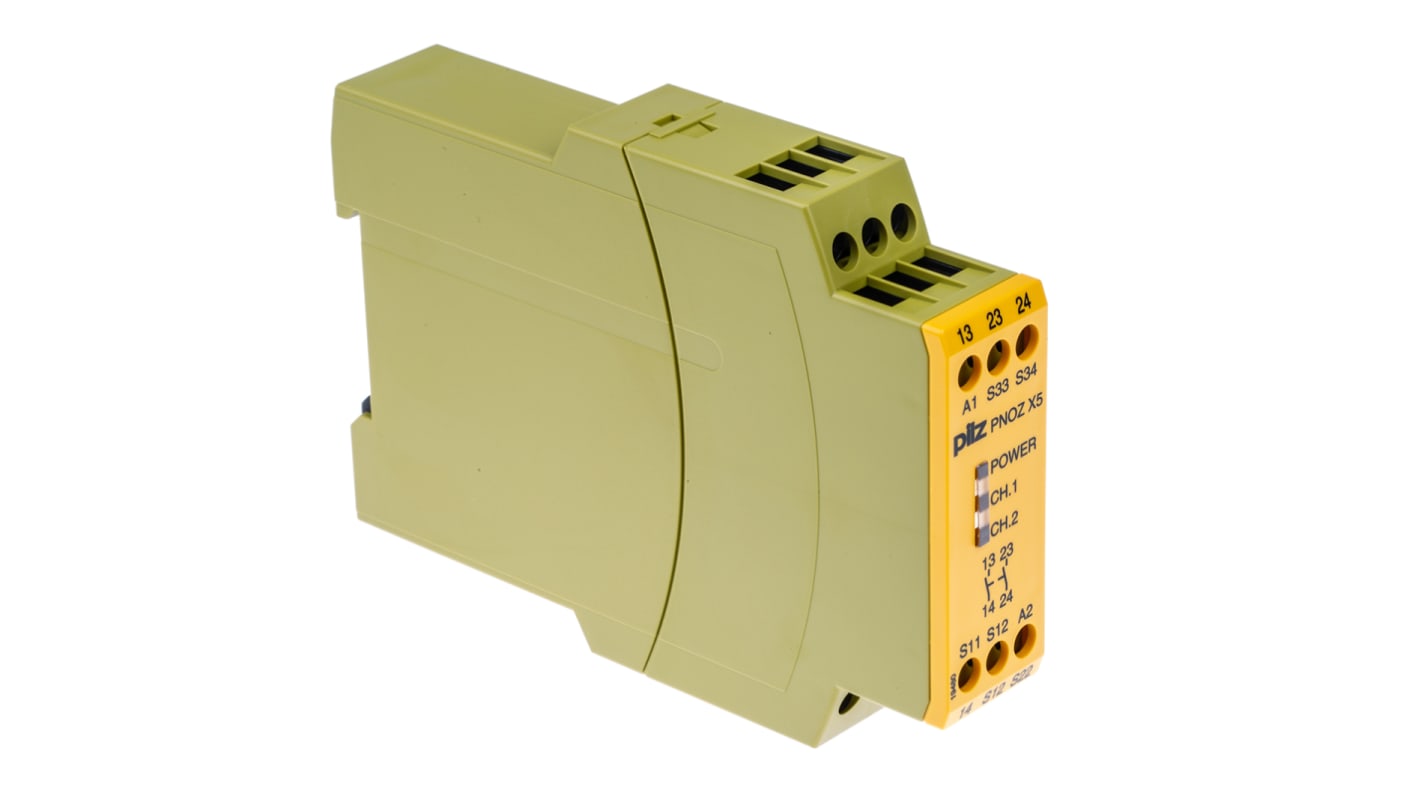

PNOZ X5, Dual Channel by PILZ

The PNOZ X5 range of Safety Relays by PILZ introduces your circuit to a safety related interruption wherein the primary applications are typically in potential hazardous environments where you need that quick power cut off. Particularly useful in automated environments with high foot traffic such as factories, warehouse and the like.
PNOZ safety relays prove themselves every day in millions of applications worldwide. PNOZ Safety relays have quickly progressed to be the world’s most commonly used safety relay. These ranges of PNOZ relays are continually being developed to ensure safety is synonymous with the PILZ PNOZ relays.

Features and benefits

• 2 N/O Safety Contacts
• DIN Rail mounting as standard
• LED status indication to show supply voltage in the device
• Automatic or manual reset facility
• Simple, fast wiring
• Separate opening for checking the voltage
• Great contact security, even when faced with heavy shock and vibration of certain machine types
• High plant availability and short downtimes thanks to the convenient diagnostic options built into the device
• Complete solutions comprising of evaluation devices, compatible with sensor technology and control and signal devices.
• Universal power supply
• Tailor-made safety for each function
• Electromechanical, potential-free

Safety features

• Redundancy is built in with self-monitoring available
• Self-monitoring relay of the circuit to ensure redundancy when needed
• Component failure does not compromise the device or circuit it is intended to look after
• Electronic fuses built in as standard
• Automatic testing of the on-off cycle
• International certification, ensuring your safety

Applications

• Monitoring relays
• Line inspection devices
• Small control systems
• ESTOP pushbuttons

Technical safety parameters

• EN 60947-5-1
• EN 60204-1
• VDE 0113-1

Standards

BS EN 60204-1

Specifications
Attribute Value
Supply Voltage 24 V ac/dc
Number of Channels 1, 2
Function Safety Switch/Interlock
Safety Contacts 2
Range PNOZ X
Terminal Type Screw
Length 87mm
Width 22.5mm
Depth 121mm
26 Within 4 working day(s) (Global stock)
20 Within 4 working day(s) (Global stock)
Price Each
MYR 826.69
units
Per unit
1 - 5
MYR826.69
6 +
MYR799.60
