Pilz 24 V ac/dc Safety Relay Single Channel With 2 Safety Contacts Compatible With Safety Switch/Interlock

  • RS Stock No. 324-7274
  • Mfr. Part No. 774059
  • Manufacturer Pilz
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

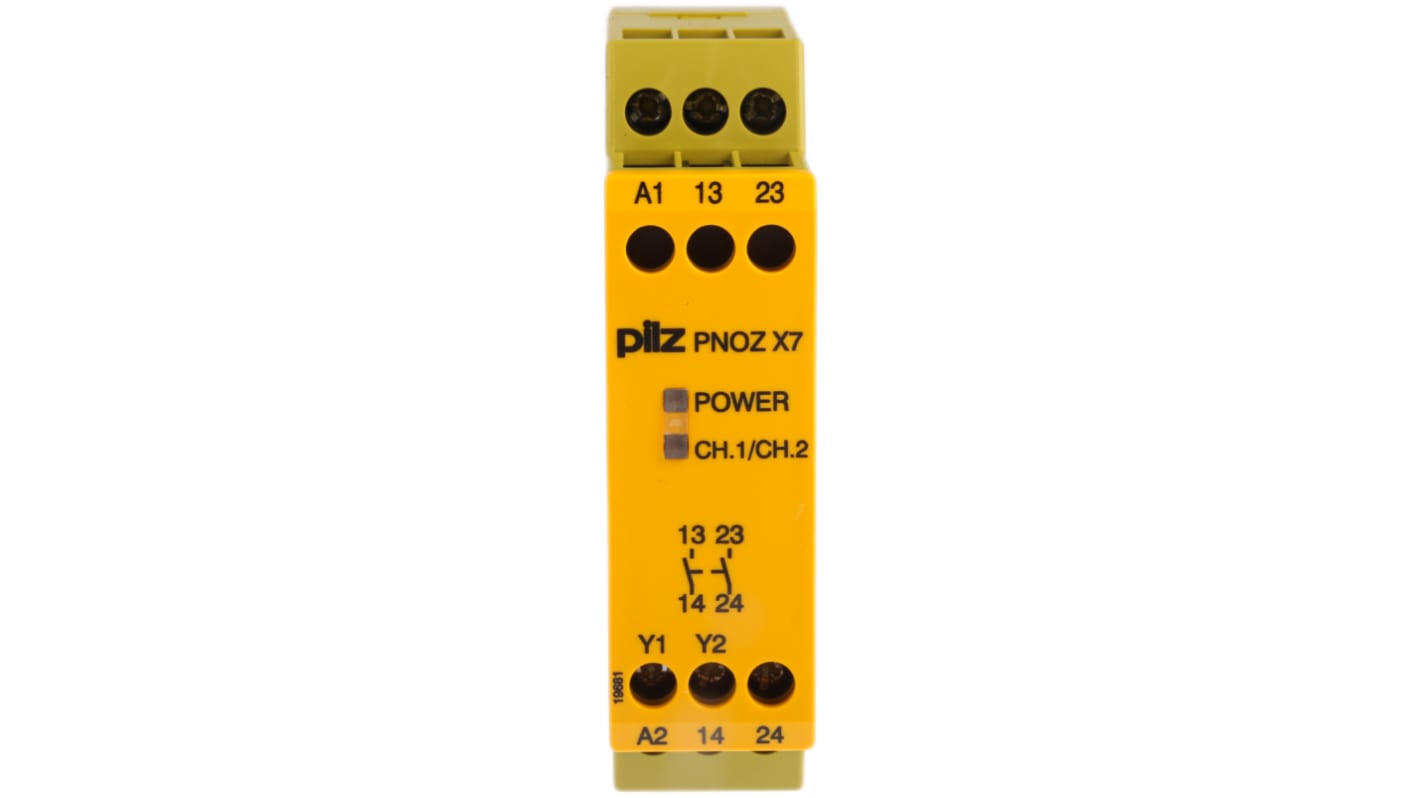

PNOZ X7 series by PILZ, Single Channel

The PNOZ X7 range of Safety Relays by PILZ introduces your circuit to a safety related interruption wherein the primary applications are typically in potential hazardous environments where you need that quick power cut off. Particularly useful in automated environments with high foot traffic such as factories, warehouse and the like.

Features and benefits

• 2 N/O Safety Contacts
• Feedback control loop is available, this allows you to monitor external relays/contractors
• LED status indication as standard with the X7 giving you complete assurance as you monitor things like the supply voltage.
• Redundancy is built in with self-monitoring available.
• The X7 will automatically test its self at each power up giving you complete reliability and assurance every time your circuit needs to continue its work.
• DIN rail mounting as standard.
• Automatic and manual reset facilities available with the X7.

Safety features

• The circuit is redundant with built in self-monitoring
• The safety function of the device remains effective even in the event of a component failure along the line
• Automatic testing on each on-off cycle

Applications

• Emergency stop buttons
• Reset buttons
• External relays/contactors

Technical safety parameters

• EN 60204-1
• IEC 60204-01

Warning

  • ! This device is not suitable for non-contact barriers as there is no way to initiate a dynamic start and also the unit can be started during the delay-on de-energisation time !
Specifications
Attribute Value
Supply Voltage 24 V ac/dc
Number of Channels 1
Function Safety Switch/Interlock
Safety Contacts 2
Range PNOZ X
Terminal Type Screw
Length 87mm
Depth 121mm
Width 22.5mm
53 Within 4 working day(s) (Global stock)
169 Within 4 working day(s) (Global stock)
Price Each
MYR 765.33
units
Per unit
1 - 5
MYR765.33
6 +
MYR741.92
