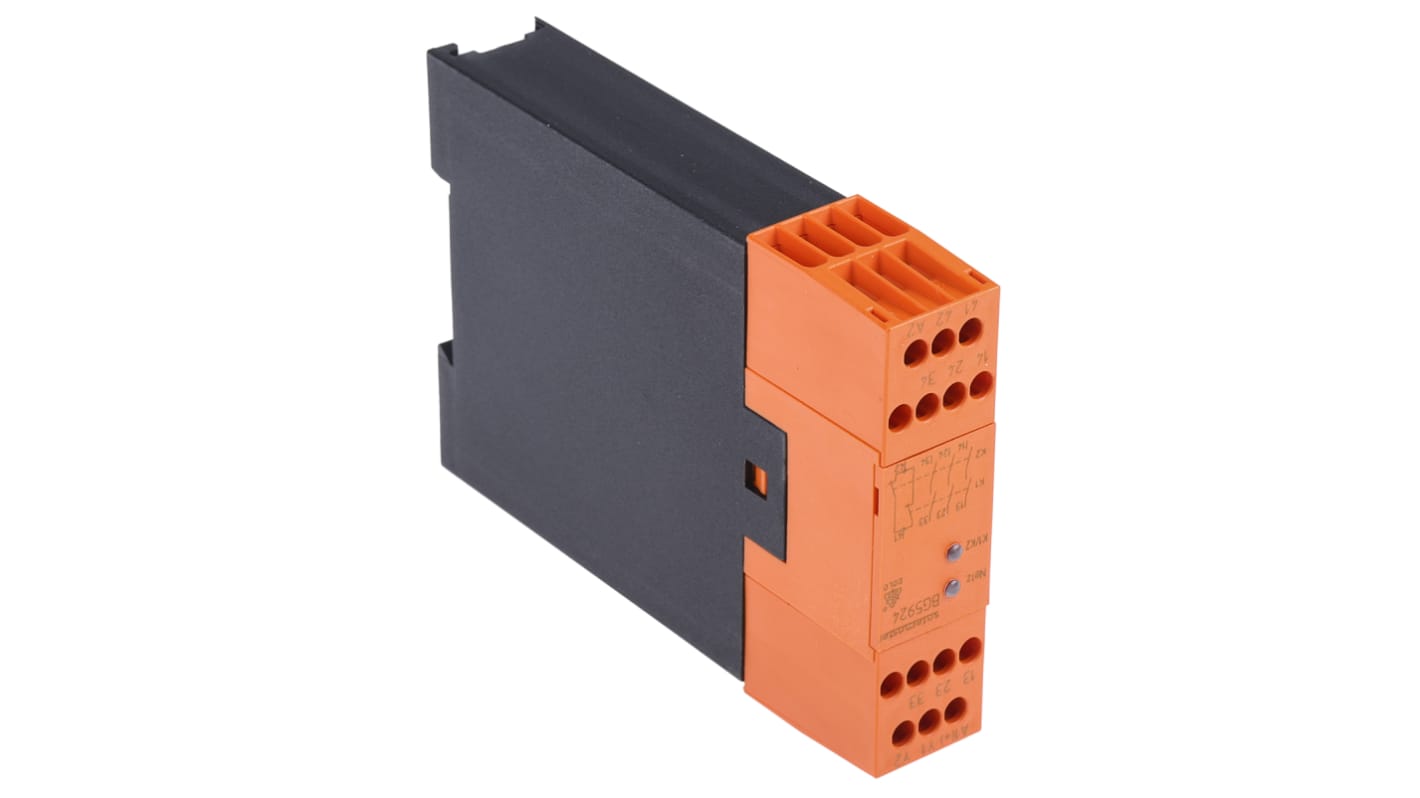

Dold 24 V dc Safety Relay Single Channel With 4 Safety Contacts Compatible With Emergency Stop

  • RS Stock No. 291-3201
  • Mfr. Part No. BG5924.48 AC/DC24V
  • Manufacturer Dold
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Emergency Stop Module, BG5924

Single-channel circuit
Safety category conforms to EN 954 internal: 4 external: 2
Output: 3 NO / 1 NC for AC 250 V
Operating status display
LED display for channel 1//2
Short-circuit detection on Y1
22.5 mm overall width

The BG5924 is a highly compact safety switch device for the construction of emergency stop switches. It serves to protect personnel and machines in accordance with the EC directive for machines 89/392/EEC, IEC 204-1, EN 60204-1, DIN VDE 0113-1

Standards

EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1

//media.rs-online.com/t_line/LD291320-01.gif
Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Channels 1
Function Emergency Stop
Safety Contacts 4
Range Safemaster
Width 22.5mm
Depth 121mm
Length 84mm
10 Within 4 working day(s) (Global stock)
43 Within 4 working day(s) (Global stock)
Price Each
MYR 1,099.01
units
Per unit
1 +
MYR1,099.01
