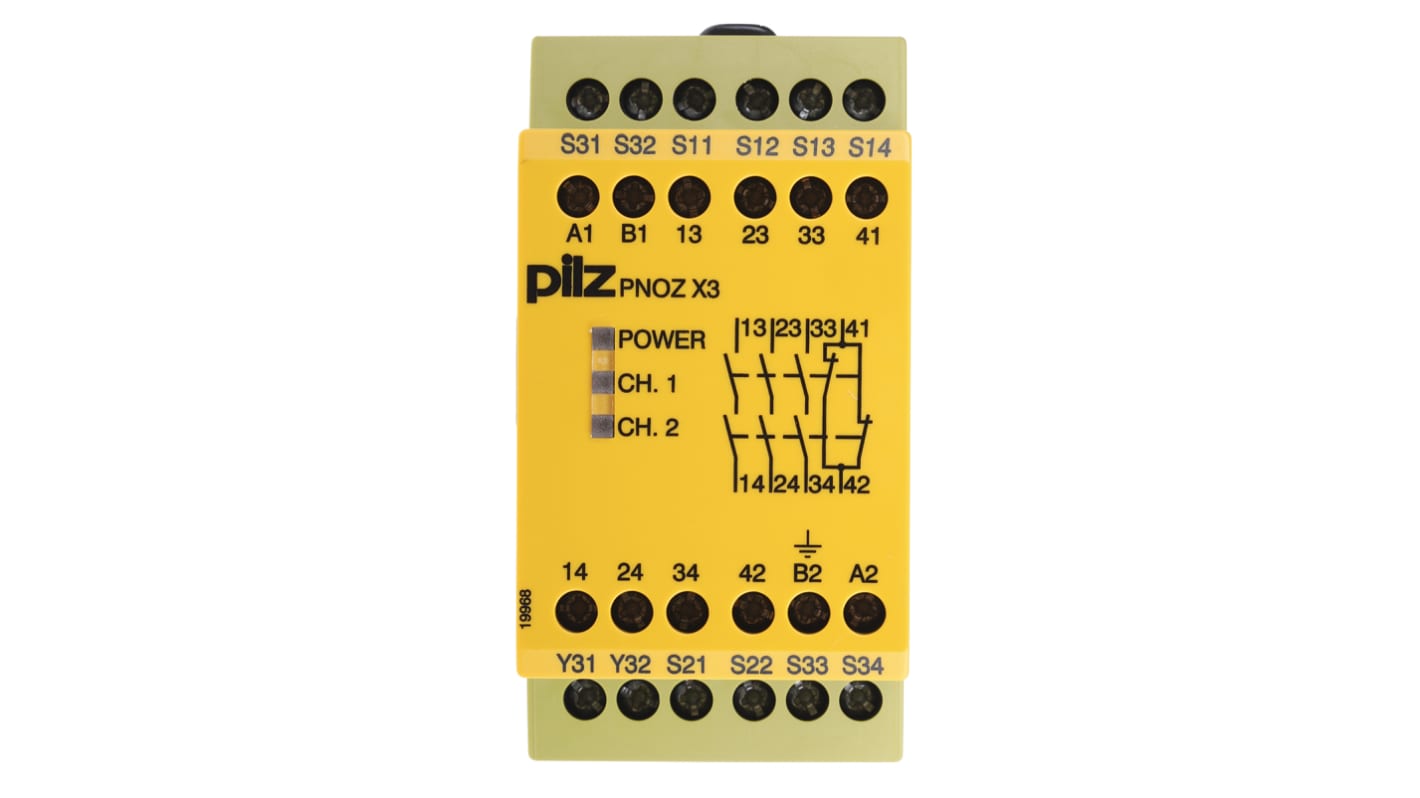

Pilz Dual-Channel Safety Switch/Interlock Safety Relay, 24 V dc, 110V ac, 3 Safety Contacts
- RS Stock No.:
- 239-1061
- Mfr. Part No.:
- 774314
- Manufacturer:
- Pilz
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR1,478.50
| Units | Per Unit |
| 1 + | MYR1,478.50 |
- RS Stock No.:
- 239-1061
- Mfr. Part No.:
- 774314
- Manufacturer:
- Pilz
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
PNOZ X3 Series of Safety Relays by PILZ
The PNOZ X3 range of Safety Relays by PILZ introduces your circuit to a safety related interruption wherein the primary applications are typically in potential hazardous environments where you need that quick power cut off. Particularly useful in automated environments with high foot traffic such as factories and warehouses.
Features and benefits
• LED indicator statuses to support switching channel status between 1 or 2 signals & also for monitoring the supply voltage currently in the relay
• Semiconductor output signals: switch status channel 1 / 2
• 3 safety contacts and 1 auxiliary contact
• Several connection outputs & status indicators
• Your opening and closing of the safety function relays is tested automatically within each on-off cycle
• A monitored manual reset is available in this unit
• DIN rail mounting as standard
• Semiconductor output signals: switch status channel 1 / 2
• 3 safety contacts and 1 auxiliary contact
• Several connection outputs & status indicators
• Your opening and closing of the safety function relays is tested automatically within each on-off cycle
• A monitored manual reset is available in this unit
• DIN rail mounting as standard
Safety features
• The circuit is redundant with built in self-monitoring
• Reliable X3 functionality means your safety function remains effective even in the event of component failure
• The transformer is short circuit proof and an electronic fuse is used on a DC supply.
• Reliable X3 functionality means your safety function remains effective even in the event of component failure
• The transformer is short circuit proof and an electronic fuse is used on a DC supply.
Applications
• Emergency stop buttons
• Safety gate limit switches
• Reset buttons
• Light barriers
Technical safety parameters
• EN 60204-1
• EN (IEC) 62061
• EN ISO 13849-1
• VDE 0113-1
• EN 60947-5-1
• EN (IEC) 62061
• EN ISO 13849-1
• VDE 0113-1
• EN 60947-5-1
Approvals
CE, cULus Listed, TÜV, KOSHA, CCC.
Additional features:
Supply Voltage (V): 110, Supply Voltage 2 (V): 24
Automatic start: Unit is active once the input circuit has been closed
Monitored reset: monitor your reset once the input circuit has been closed and once the reset circuit is closed.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc, 110V ac |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Safety Switch/Interlock |
| Auxiliary Contacts | 1 |
| Reset Method | Automatic, Monitored |
| Range | PNOZ X |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| SIL IEC 61508 | 3 |
| Terminal Type | Screw |
| Depth | 121mm |
| Width | 45mm |
| Series | PNOZ X3 |
| Length | 87mm |
| Performance Level | e |
