Pilz 24 V ac/dc Safety Relay Single Channel With 3 Safety Contacts and 1 Auxilary Contact

  • RS Stock No. 239-1033
  • Mfr. Part No. 774300
  • Manufacturer Pilz
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

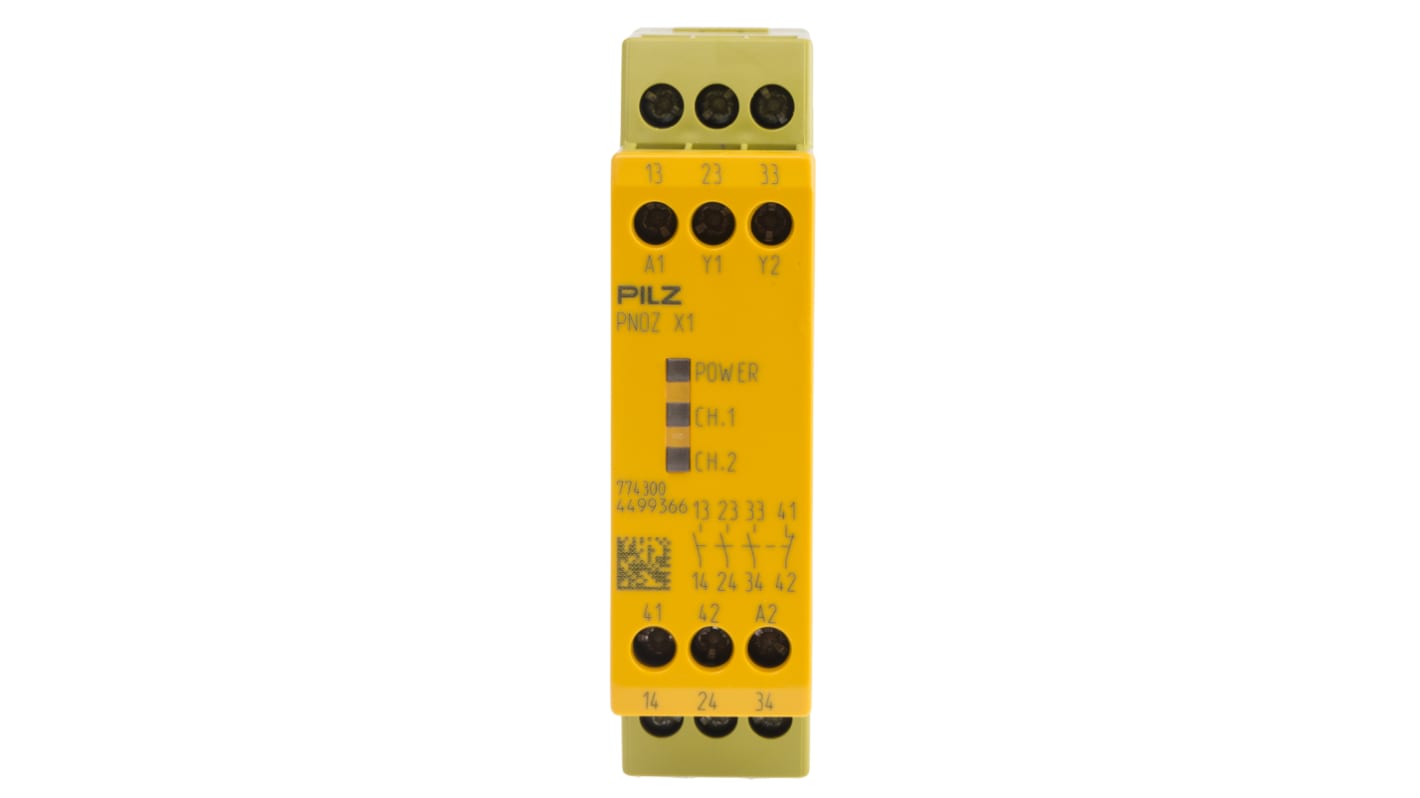

PILZ PNOZ X1 Safety Relay, Single Channel

The PNOZ X1 series from PILZ is a reliable and affordable safety relay that will give you the confidence to run your safety circuits in a safe manner.

Features and benefits

• Specially designed for two handed control/operation. The P2HZ series will not function unless the operator has their hands outside the danger zone area during hazardous movement.
• LED indicator for switching your channel status from 1 to 2 and also to monitor your supply voltage
• Single or Dual channel input operation (Single channel are used more beneficially with smaller type machines where you need to use a dedicated logic device that only has a small function to cut off in an emergency – Dual allows you to take control of more safety circuits and control a greater amount of control zones at any given time)
• Suitable for DIN rail mounting
• Durable and has an extended service life vs. competitors

Safety features

• The relay will provide the circuit self-monitoring.
• The safety functions of the device remain in effect even in the case of component failures.
• The correct opening and closing of the safety relays functions are tested automatically at the end of each on/off cycle.

Applications

• Mechanical presses
• Hydraulic presses
• General safety circuits (in accordance with EN 60204-1)
• Emergency stop buttons
• Safety curtains

Technical safety parameters

• EN 60204-1
• EN 954-1
• EN (IEC) 62061
• EN ISO 13849-1
• IEC 61511 – SIL 3

Specifications
Attribute Value
Supply Voltage 24 V ac/dc
Number of Channels 1
Auxiliary Contacts 1
Function Safety Switch/Interlock
Safety Contacts 3
Range PNOZ X
Reset Method Automatic, Manual
Terminal Type Screw
Length 87mm
Depth 121mm
Width 22.5mm
199 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 908.22
units
Per unit
1 - 5
MYR908.22
6 +
MYR879.39
