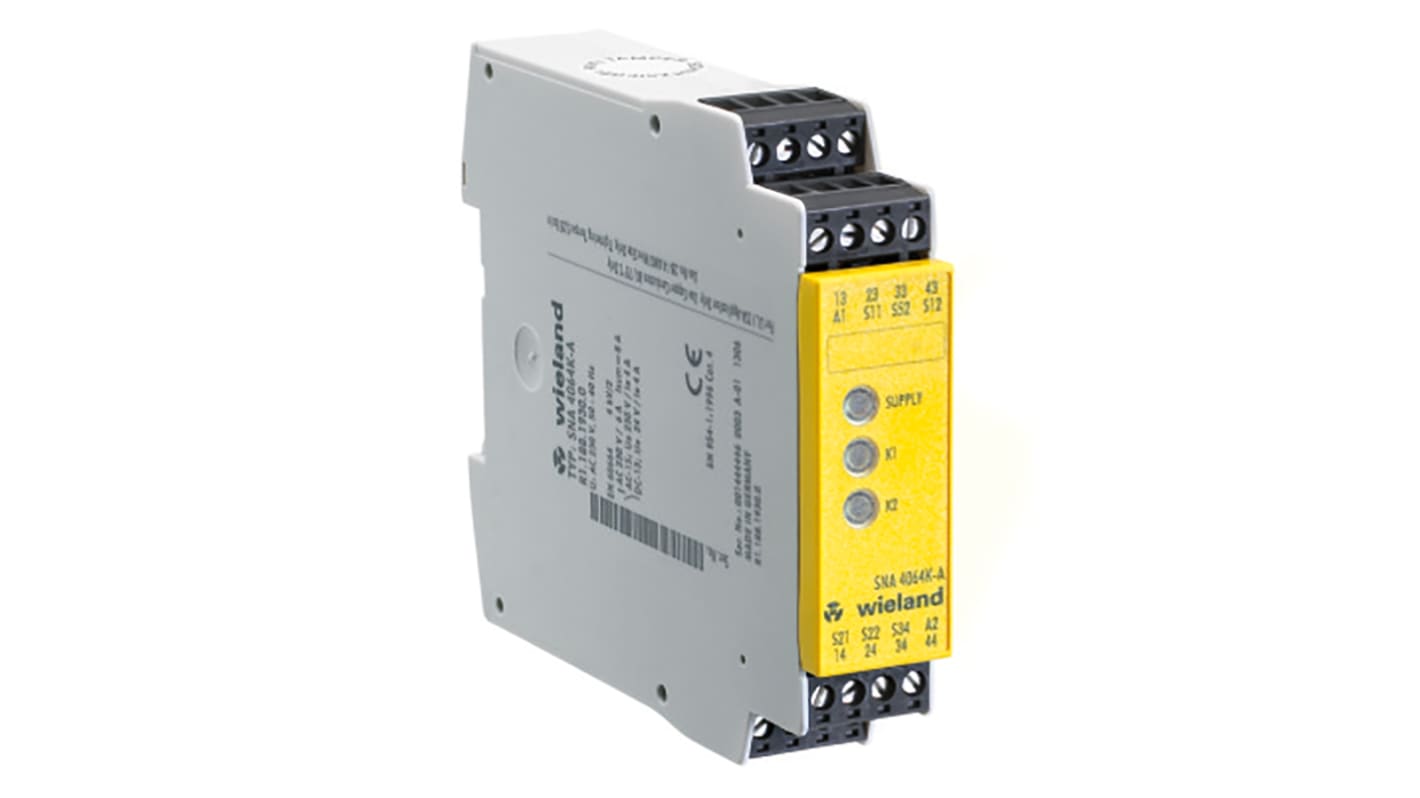

Wieland Dual-Channel Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 230V ac, 3 Safety
- RS Stock No.:
- 122-2493
- Mfr. Part No.:
- R1.188.1840.0
- Manufacturer:
- Wieland
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,851.89
| Units | Per Unit |
| 1 + | MYR1,851.89 |
- RS Stock No.:
- 122-2493
- Mfr. Part No.:
- R1.188.1840.0
- Manufacturer:
- Wieland
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
SNA 4043K Safety Relay for all Devices including Elevators and Heaters
Stop-Category 0 acc. EN 60204-1
Applications up to Category 4 acc. EN 954-1 or to SIL 3 respectively according to EN 62061 and PL e accoring to EN13849-1
Can be used as emergency stop and safety gate monitor
Each unit offers manual or automatic reset and cross monitoring
One or two-channel wiring
External device monitoring (EDM)
LED indication
Applications up to Category 4 acc. EN 954-1 or to SIL 3 respectively according to EN 62061 and PL e accoring to EN13849-1
Can be used as emergency stop and safety gate monitor
Each unit offers manual or automatic reset and cross monitoring
One or two-channel wiring
External device monitoring (EDM)
LED indication
Approvals
TUV, cULus
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230V ac |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock |
| Auxiliary Contacts | 1 |
| Reset Method | Manual |
| Range | safeRELAY |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| Terminal Type | Screw |
| Series | SNA 4043K |
| Width | 114mm |
| Depth | 96.5mm |
| Performance Level | e |
| Length | 22.5mm |
