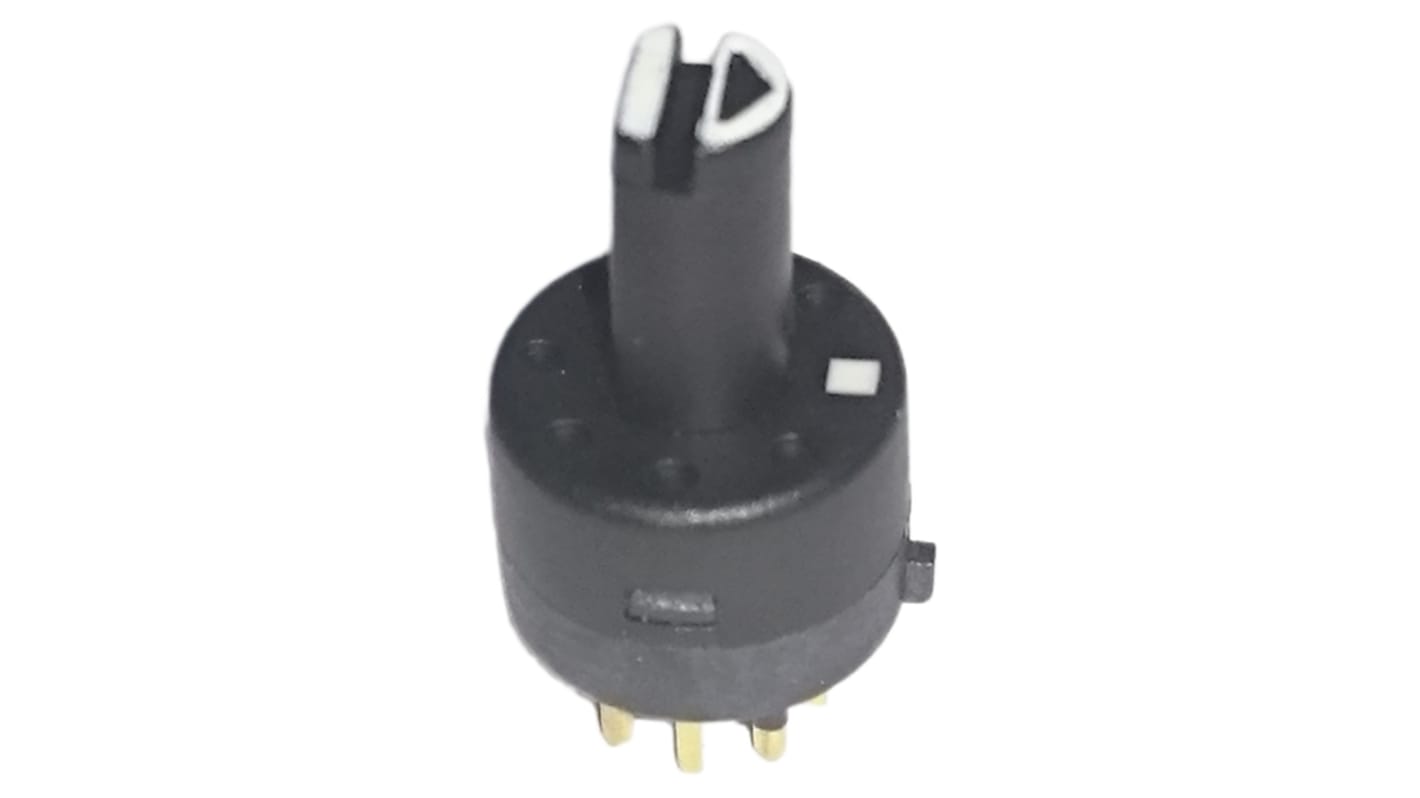

Lorlin, 4 Position Rotary Switch, 500 mA, PCB Pin

  • RS Stock No. 899-8567
  • Mfr. Part No. MTL-21-40
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Subminiature TO-5 Rotary Switch

Compact rotary switch in a convenient 9.2mm diameter TO-5 package
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Current Rating 500 mA
Number of Switch Positions 4
Number of Contacts 8
Voltage Rating 24V ac/dc
Diameter 9.2mm
Dimensions 9.2 (Dia.) x 14.2mm
Mounting Type PCB
Mounting Hole Size 0.76 mm
Terminal Type PCB Pin
Contact Material Gold Plated Brass
Angle of Throw 135°
Minimum Operating Temperature -30°C
Height 14.2mm
Mechanical Life >5000Cycles
Contact Type Shorting
Actuator Colour Black
Case Material Glass Filled Polyester PBT
Maximum Operating Temperature +65°C
14 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 15.69
units
Per unit
1 - 9
MYR15.69
10 - 24
MYR15.17
25 - 49
MYR14.47
50 - 199
MYR12.76
200 +
MYR11.56
