Lorlin, 6 Position Rotary Switch, 500 mA, PCB Pin
- RS Stock No.:
- 899-8564
- Mfr. Part No.:
- MTL-21-60
- Manufacturer:
- Lorlin
Temporarily out of stock - back order for despatch 27/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR29.54
| Units | Per Unit |
| 1 - 9 | MYR29.54 |
| 10 - 24 | MYR28.91 |
| 25 - 49 | MYR28.04 |
| 50 - 199 | MYR27.36 |
| 200 + | MYR26.78 |
- RS Stock No.:
- 899-8564
- Mfr. Part No.:
- MTL-21-60
- Manufacturer:
- Lorlin
Technical data sheets
Legislation and Compliance
Product Details

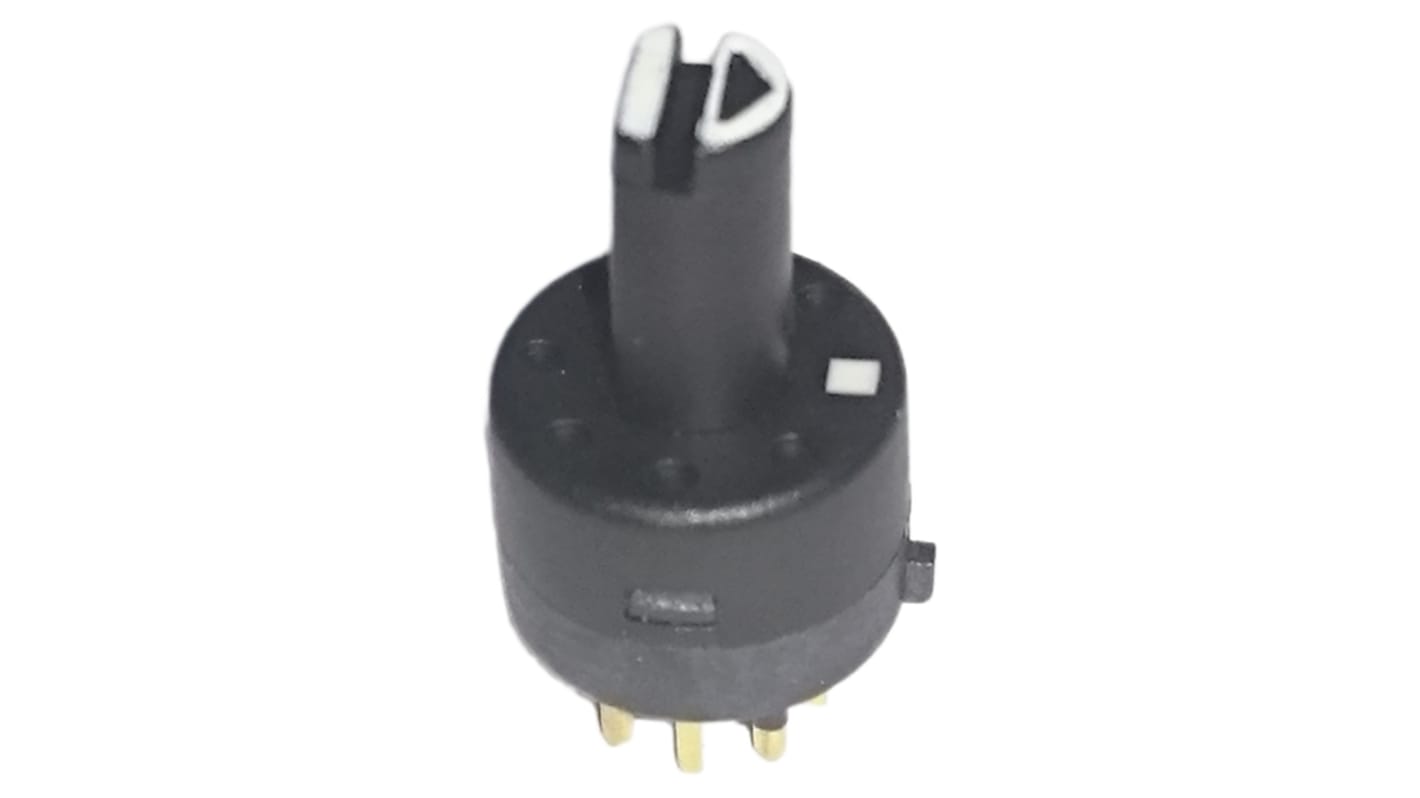

Subminiature TO-5 Rotary Switch
Compact rotary switch in a convenient 9.2mm diameter TO-5 package
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
|---|---|
| Contact Current Rating | 500 mA |
| Number of Switch Positions | 6 |
| Number of Contacts | 8 |
| Voltage Rating | 24V ac/dc |
| Diameter | 9.2mm |
| Dimensions | 9.2 (Dia.) x 14.2mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.76mm |
| Terminal Type | PCB Pin |
| Case Material | Glass Filled Polyester PBT |
| Contact Material | Gold Plated Brass |
| Height | 14.2mm |
| Minimum Operating Temperature | -30°C |
| Angle of Throw | 225° |
| Actuator Colour | Black |
| Contact Type | Shorting |
| Maximum Operating Temperature | +65°C |
| Mechanical Life | >5000Cycles |
