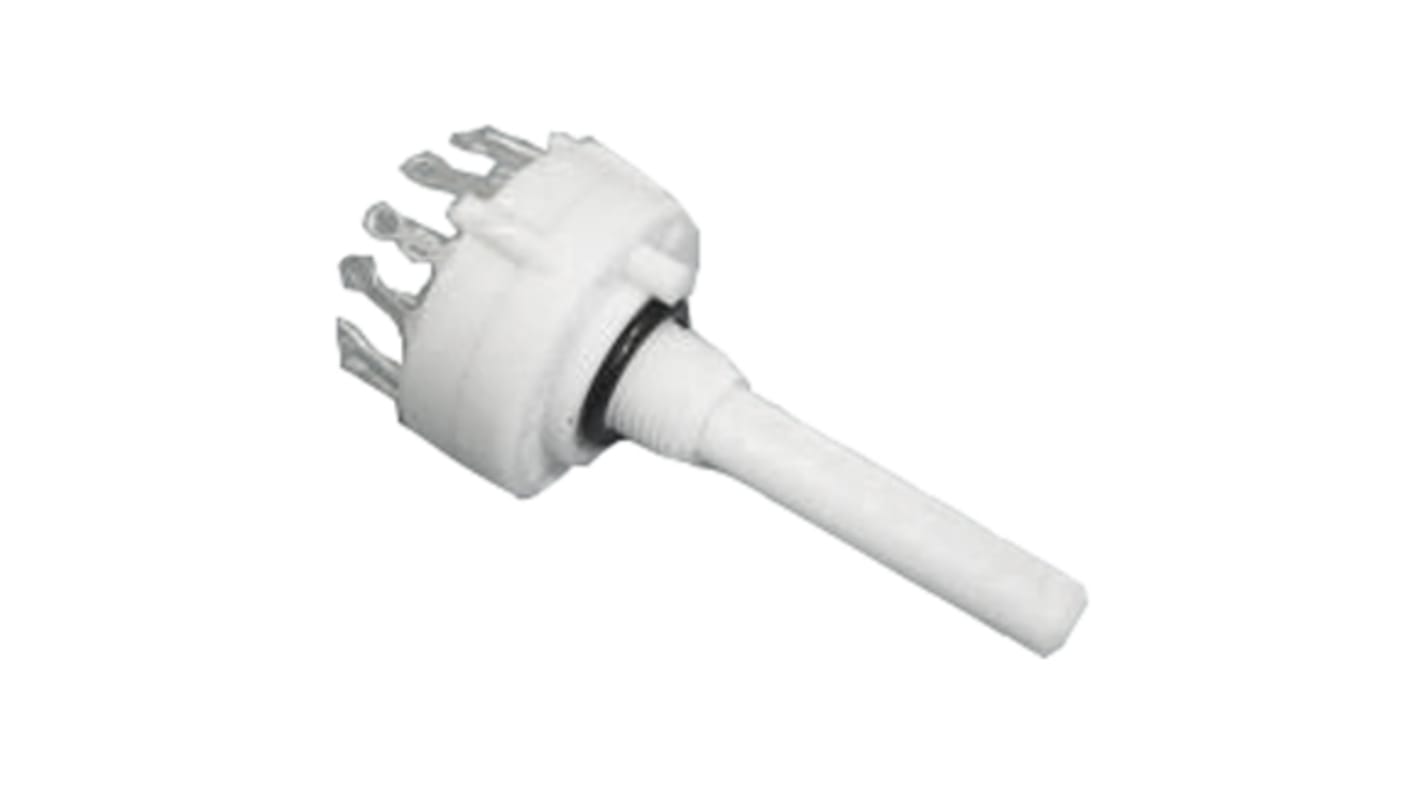

Lorlin, 4 Position Rotary Switch, Solder Tag

RS Stock No.:: 896-7831
Mfr. Part No.:: CKF1026
Manufacturer:: Lorlin

Lorlin, 4 Position Rotary Switch, Solder Tag

37 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR38.33

Units	Per Unit
1 - 19	MYR38.33
20 - 49	MYR37.53
50 - 99	MYR36.39
100 - 249	MYR35.50
250 +	MYR34.73

RS Stock No.:: 896-7831
Mfr. Part No.:: CKF1026
Manufacturer:: Lorlin

Technical data sheets

CKF Series Datasheet.pdf

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Lorlin CKF Series IP65 Sealed Rotary Switches

The CKF series has been designed to offer the same form, fit and electrical ratings as the popular CK but with the added IP65 front panel seal rating. Featuring dampened indexing and reduced axial play helps to ensure a high-quality single deck multi-pole switch suitable for a wide variety of signal applications. These switches also feature up to 4 poles per switch with a maximum 12 positions, and also offer the option of either solder or PCB terminals.

Made in UK
Cost effective single wafer switch
Moulded 27.5 mm diameter
Standard 30° indexing
Solder or Printed Circuit Board Terminals
Up to 4 poles per switch
Maximum 12 positions
Shorting (make before break 30° indexing only) or non-shorting (break before make) contacts
Dampened indexing & reduced shaft play gives smooth feel
Front panel sealed to IP65

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Number of Switch Positions	4
Number of Contacts	3
Voltage Rating	250 V ac/dc, 24V dc
Width	26.2 (Dia.)mm
Dimensions	26.2 (Dia.) x 47.1mm
Terminal Type	Solder Tag
IP Rating	IP65
Minimum Operating Temperature	-30°C
Angle of Throw	90°
Maximum Operating Temperature	+85°C
Standards Met	RoHS Compliant, UL-V0
Actuator Colour	Black
Contact Type	Non-Shorting
