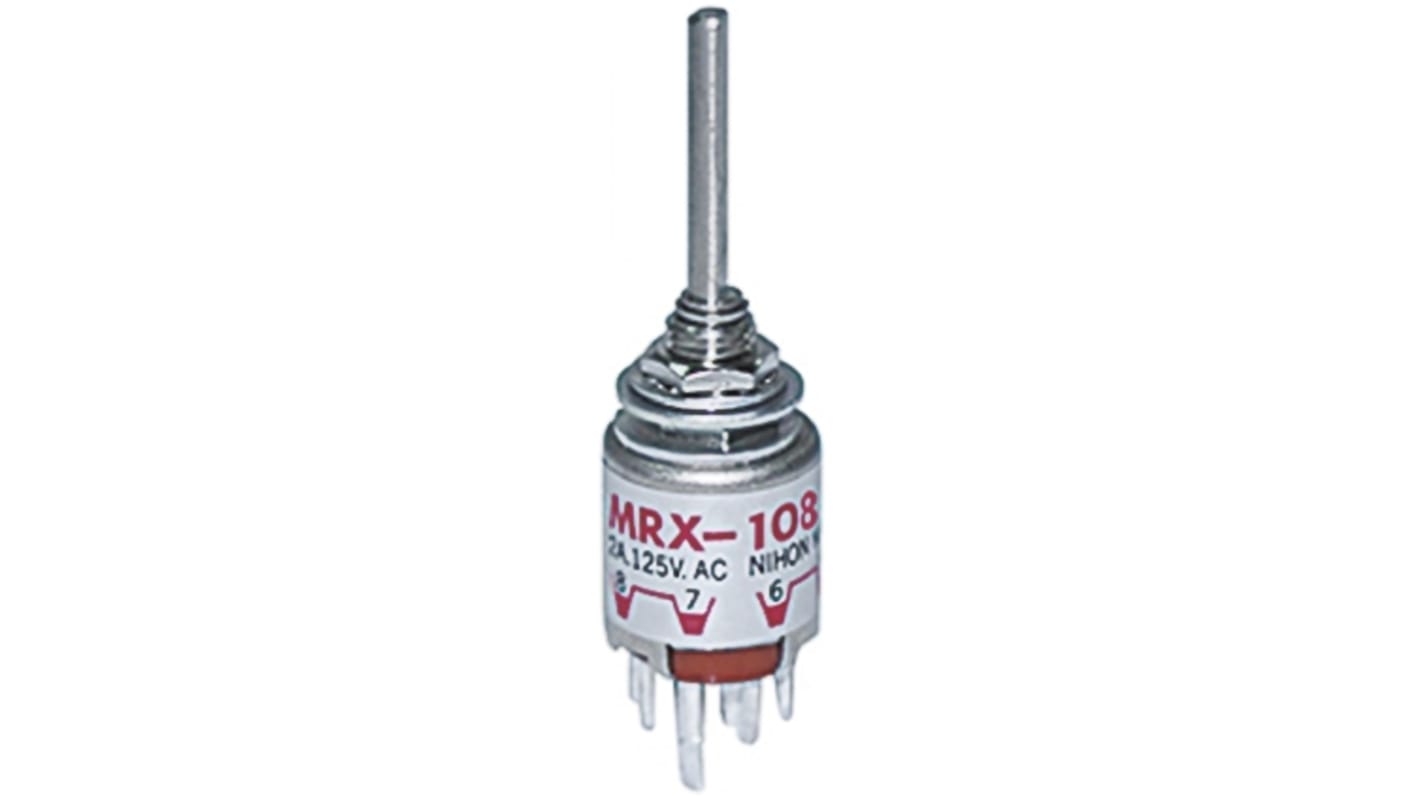

NKK Switches, 7 Position SPST Rotary Switch, 1 A @ 30 V dc, 2 A @ 125 V ac, Through Hole
- RS Stock No.:
- 354-3926
- Mfr. Part No.:
- MRX-108
- Manufacturer:
- NKK Switches
36 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR96.23
| Units | Per Unit |
| 1 + | MYR96.23 |
- RS Stock No.:
- 354-3926
- Mfr. Part No.:
- MRX-108
- Manufacturer:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Rotary switch MR series (X-shape)
Self-cleaning sliding contact type gives high contact reliability
Terminal insert moulding prevents flux penetration and loosening of terminals
Stopper can be freely configured to set the desired number of switch positions
Terminal insert moulding prevents flux penetration and loosening of terminals
Stopper can be freely configured to set the desired number of switch positions
Note
Procedure when changing stopper setting
Turn the knob fully to the left
Loosen the nut at the top of the switch and insert the protruding part of the stopper into the terminal numbered hole
Tighten the nut to between 196 and 294 m N m
Turn the knob fully to the left
Loosen the nut at the top of the switch and insert the protruding part of the stopper into the terminal numbered hole
Tighten the nut to between 196 and 294 m N m
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Contact Current Rating | 1 A @ 30 V dc, 2 A @ 125 V ac |
| Number of Switch Positions | 7 |
| Number of Contacts | 1 |
| Voltage Rating | 30 V dc, 125V ac |
| Depth | 14mm |
| Width | 14mm |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Contact Material | Silver Alloy |
| Case Material | Brass |
| Height | 42.9mm |
| Angle of Throw | 50° |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -10°C |
| Mechanical Life | 15000Operations |
