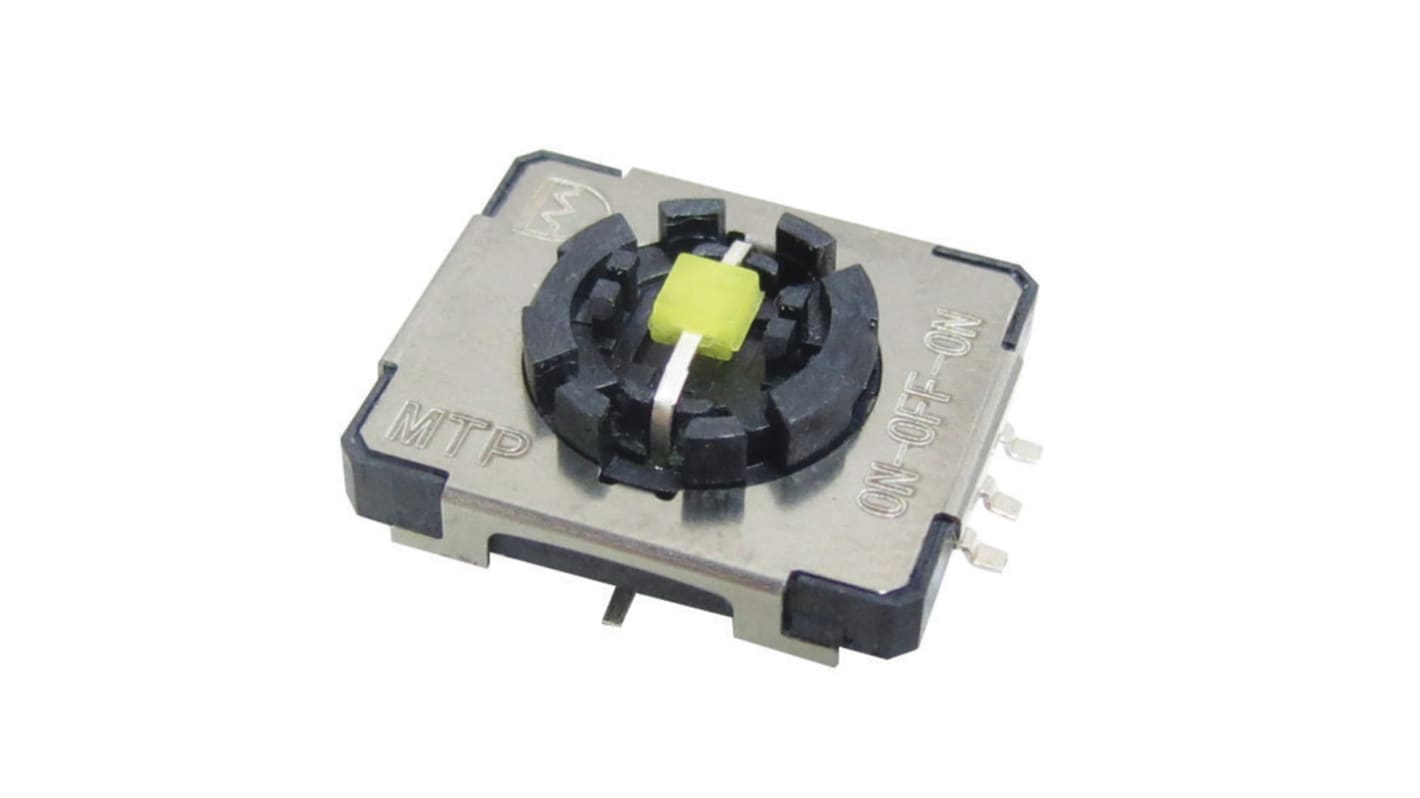

RS PRO, 3 Position SPST Push-Rotary Switch, 50 mA, Solder
- RS Stock No.:
- 175-9860
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 21/10/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 20)
MYR22.365
| Units | Per Unit | Per Reel* |
| 20 - 20 | MYR22.365 | MYR447.30 |
| 40 - 180 | MYR21.873 | MYR437.46 |
| 200 + | MYR18.002 | MYR360.04 |
| *price indicative | ||
- RS Stock No.:
- 175-9860
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Sub-Miniature Pushbutton Switches
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Series | MTP |
| Contact Current Rating | 50 mA |
| Number of Switch Positions | 3 |
| Number of Contacts | 1 |
| Voltage Rating | 12V dc |
| Depth | 13.5mm |
| Width | 15.2mm |
| Dimensions | 15.2 x 13.5 x 5.6mm |
| Mounting Type | PCB |
| Terminal Type | Solder |
| Case Material | Stainless Steel |
| Minimum Operating Temperature | -20°C |
| Contact Material | Copper Over Silver |
| Actuator Colour | Black |
| Height | 5.6mm |
| Maximum Operating Temperature | +70°C |
| Legend Text Colour | Green |
| Mechanical Life | 10000 / 30000Cycles |
| Angle of Throw | 80° |
| Illuminated | Yes |
