TE Connectivity, 12 Position SPST Rotary Switch, 400 mA @ 20 V, Through Hole

RS Stock No.:: 161-4201
Mfr. Part No.:: MRJE1-1204
Manufacturer:: TE Connectivity

TE Connectivity, 12 Position SPST Rotary Switch, 400 mA @ 20 V, Through Hole

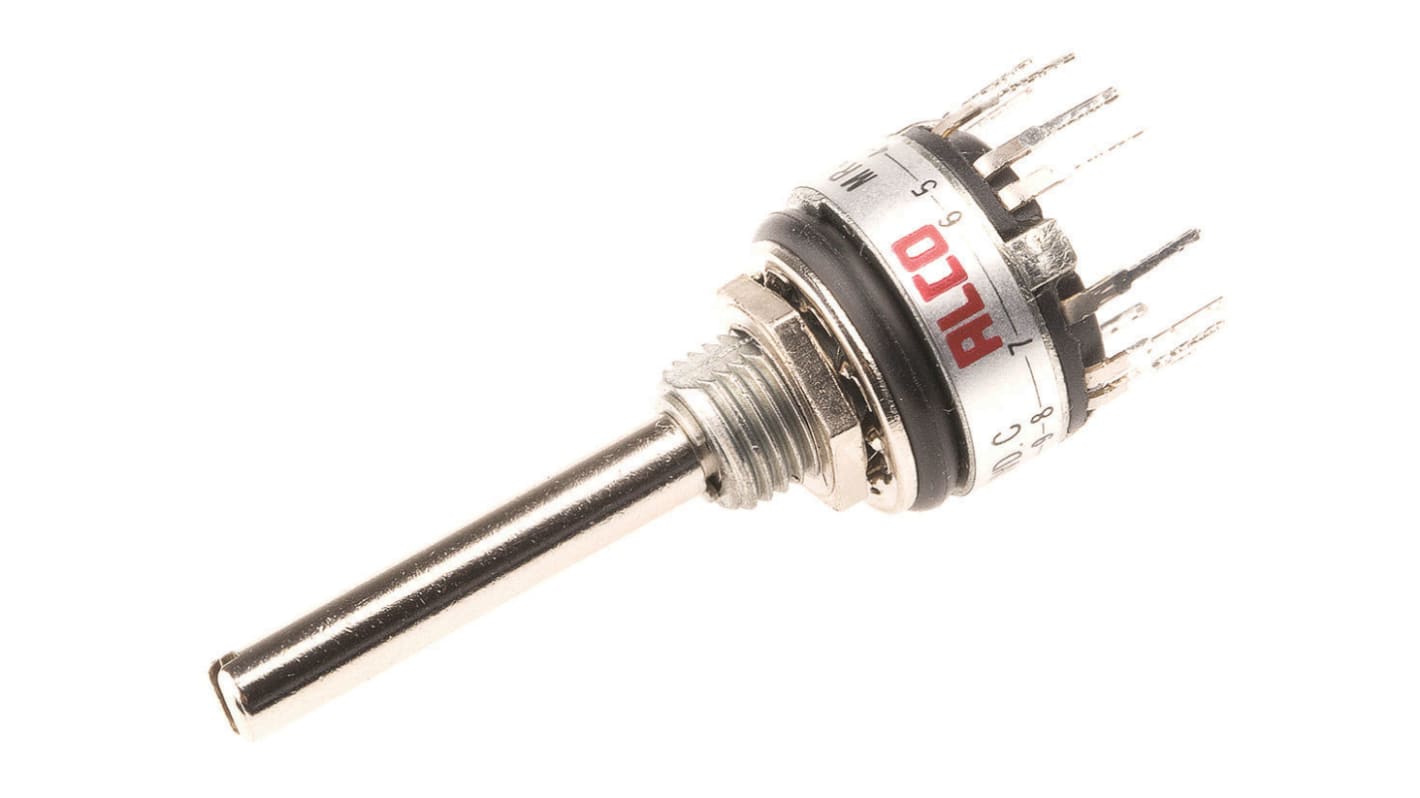

This image is representative of the product range

In Global stock for delivery within 4 - 6 working days

Added

Price Each (In a Bag of 25)

MYR164.471

Units	Per Unit	Per Bag*
25 - 25	MYR164.471	MYR4,111.775
50 - 75	MYR161.938	MYR4,048.45
100 +	MYR158.78	MYR3,969.50
*price indicative

RS Stock No.:: 161-4201
Mfr. Part No.:: MRJE1-1204
Manufacturer:: TE Connectivity

Technical data sheets

MRJE Series_E

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Miniature Rotary Switches, IP67

Miniature enclosed rotary switches which are protected to IP67
The gold plated-plated nickel break-before-make contacts have a wiping action to ensure long and reliable life. Screwdriver slot on the shaft end allows use without knob
Applications include communication and portable test/monitoring equipment
Suitable for dry circuit switching
Panel or PCB mounting
Panel cut-out: Ø6.4mm
Shaft: Ø3.30mm; Length: 19mm

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Contact Configuration	SPST
Contact Current Rating	400 mA @ 20 V
Number of Switch Positions	12
Number of Contacts	1
Voltage Rating	20V ac/dc
Depth	11.94mm
Width	11.94mm
Dimensions	11.94 x 11.94 x 34.04mm
Mounting Type	Panel Mount
Terminal Type	Through Hole
IP Rating	IP67
Case Material	Epoxy
Angle of Throw	30°
Minimum Operating Temperature	-20°C
Contact Material	Brass
Height	34.04mm
Maximum Operating Temperature	+70°C
