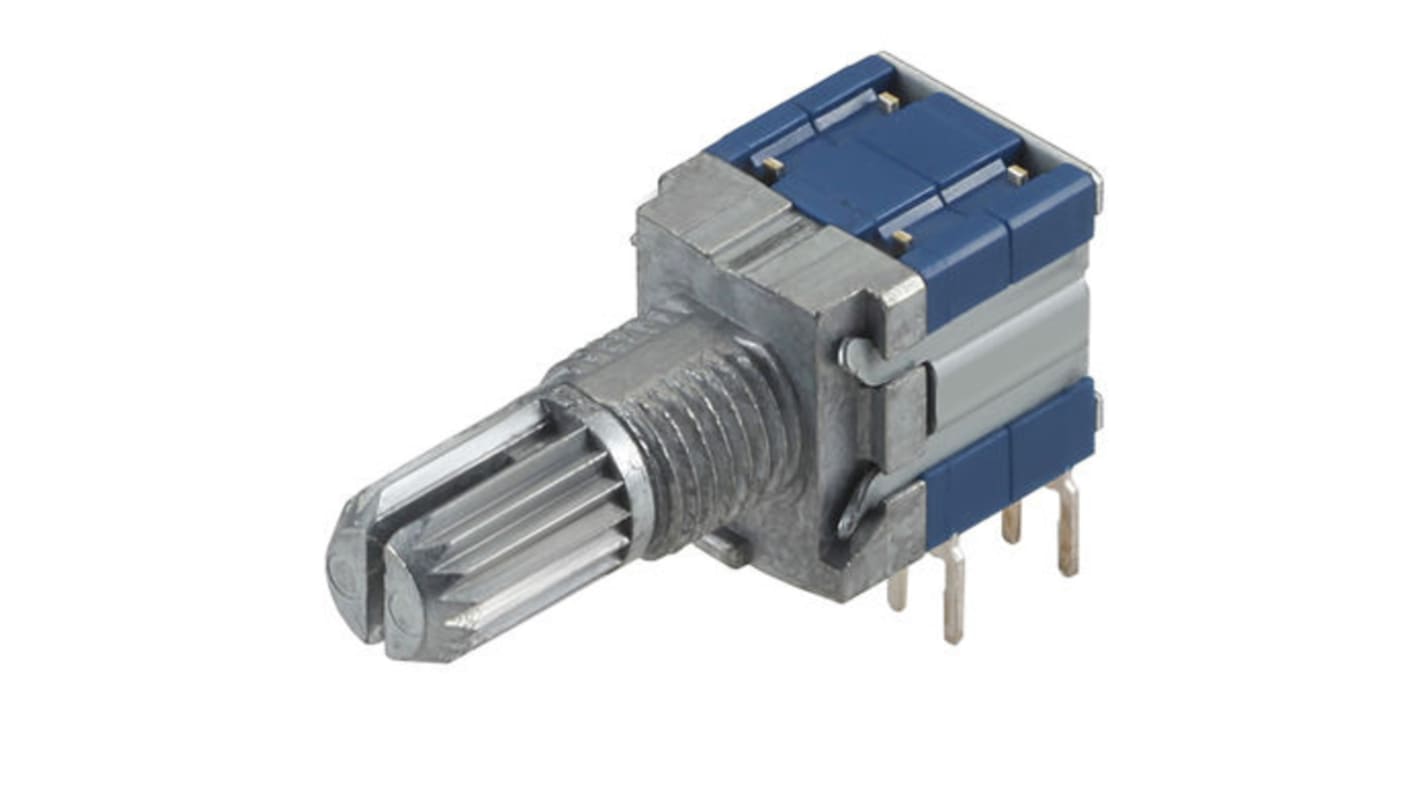

Alps Alpine, 4 Position DPDT Rotary Switch, 100 mA, PC Pin
- RS Stock No.:
- 123-9601
- Mfr. Part No.:
- SRBM140700
- Manufacturer:
- Alps Alpine
19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR44.41
| Units | Per Unit |
| 1 - 19 | MYR44.41 |
| 20 - 49 | MYR43.48 |
| 50 - 99 | MYR42.14 |
| 100 + | MYR41.12 |
- RS Stock No.:
- 123-9601
- Mfr. Part No.:
- SRBM140700
- Manufacturer:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps SRB / SRR Series Rotary Switches
Features and Benefits
Non shorting changeover timing
Number of wafer, 1
Rotational Torque 30±3°
Non shorting changeover timing
Number of wafer, 1
Rotational Torque 30±3°
Note
Actuator length 15mm or 20mm
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Contact Current Rating | 100 mA |
| Number of Switch Positions | 4 |
| Number of Contacts | 2 |
| Voltage Rating | 16V dc |
| Depth | 11mm |
| Width | 27.5mm |
| Dimensions | 27.5 x 10 x 11mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.9mm |
| Terminal Type | PC Pin |
| Application | Car AV Equipment |
| Angle of Throw | 30° |
| Minimum Operating Temperature | -30°C |
| Actuator Colour | Grey |
| Contact Type | Non-Shorting |
| Mechanical Life | 10000Cycles |
| Maximum Operating Temperature | +85°C |
| Height | 10mm |
