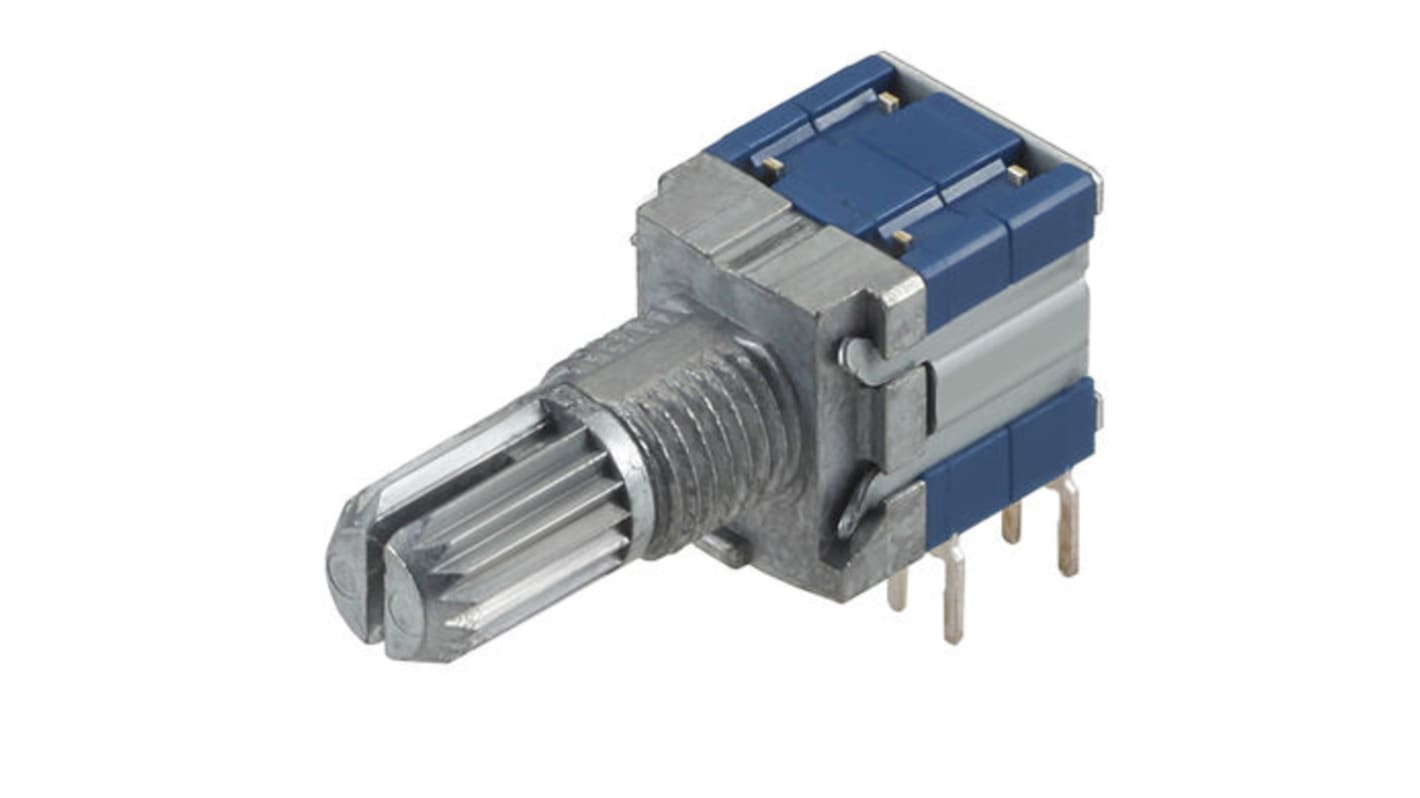

Alps Alpine, 3 Position DP3T Rotary Switch, 100 mA, Pc Pin

  • RS Stock No. 123-9599
  • Mfr. Part No. SRBM131300
  • Manufacturer Alps Alpine
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Alps SRB / SRR Series Rotary Switches

Features and Benefits
Non shorting changeover timing
Number of wafer, 1
Rotational Torque 30±3°

Note

Actuator length 15mm or 20mm

Specifications
Attribute Value
Contact Configuration DP3T
Contact Current Rating 100 mA
Number of Switch Positions 3
Number of Contacts 2
Voltage Rating 16V dc
Depth 11mm
Width 27.5mm
Dimensions 27.5 x 10 x 11mm
Mounting Type PCB
Mounting Hole Size 0.9 mm
Terminal Type PC Pin
Application Car AV Equipment
Contact Type Non-Shorting
Angle of Throw 30°
Actuator Colour Grey
Height 10mm
Mechanical Life 10000Cycles
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
79 Within 4 working day(s) (Global stock)
148 Within 6 working day(s) (Global stock)
Price Each
MYR 38.16
units
Per unit
1 - 4
MYR38.16
5 - 19
MYR34.40
20 - 49
MYR32.69
50 - 99
MYR31.06
100 +
MYR30.53
