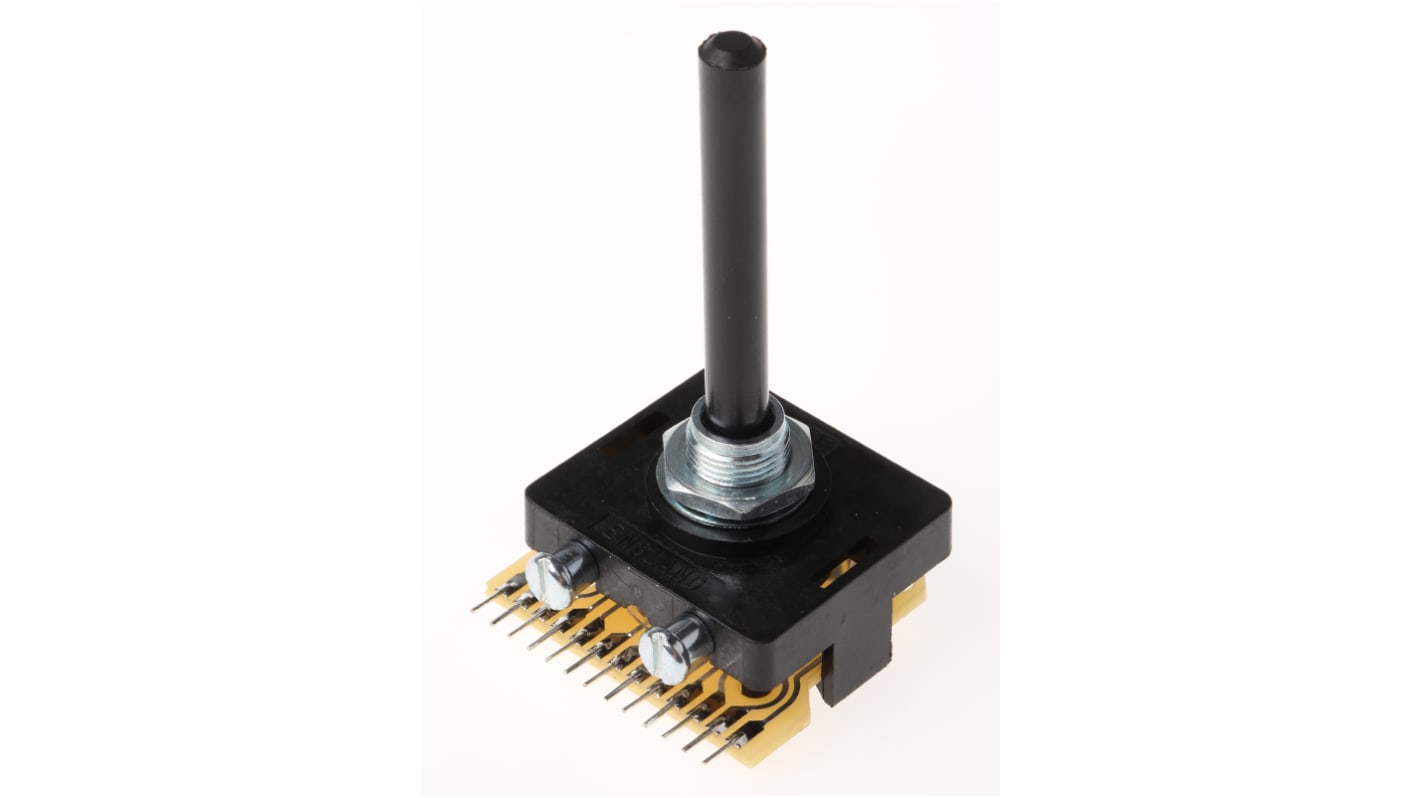

Lorlin, 12 Position SP12T Rotary Switch, 500 mA @ 250 V, Through Hole
- RS Stock No.:
- 665-837
- Mfr. Part No.:
- PT6594
- Manufacturer:
- Lorlin
102 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR97.14
| Units | Per Unit |
| 1 - 49 | MYR97.14 |
| 50 - 99 | MYR94.23 |
| 100 - 249 | MYR91.32 |
| 250 - 499 | MYR89.37 |
| 500 + | MYR87.43 |
- RS Stock No.:
- 665-837
- Mfr. Part No.:
- PT6594
- Manufacturer:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
PCB Switch Kit
A rotary switch mechanism with adjustable stop which will take up to a maximum of five extra wafers from the variety available
A spacer kit is available to maintain a 6.35mm pitch between individual wafers
Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer
Shaft diameter 6mm
All wafers are break before make
A spacer kit is available to maintain a 6.35mm pitch between individual wafers
Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer
Shaft diameter 6mm
All wafers are break before make
Note
The 'spacers' contain a selection of items - qty 10 spacers, qty 2 front insulators, qty 1 rear driver shafts, qty 1 retaining strap, qty 2 tie rods, and qty 2 push-on fixings.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP12T |
| Contact Current Rating | 500 mA @ 250 V |
| Number of Switch Positions | 12 |
| Number of Contacts | 1 |
| Voltage Rating | 250 V ac, 250V dc |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Contact Material | Silver Plated Phosphor Bronze |
