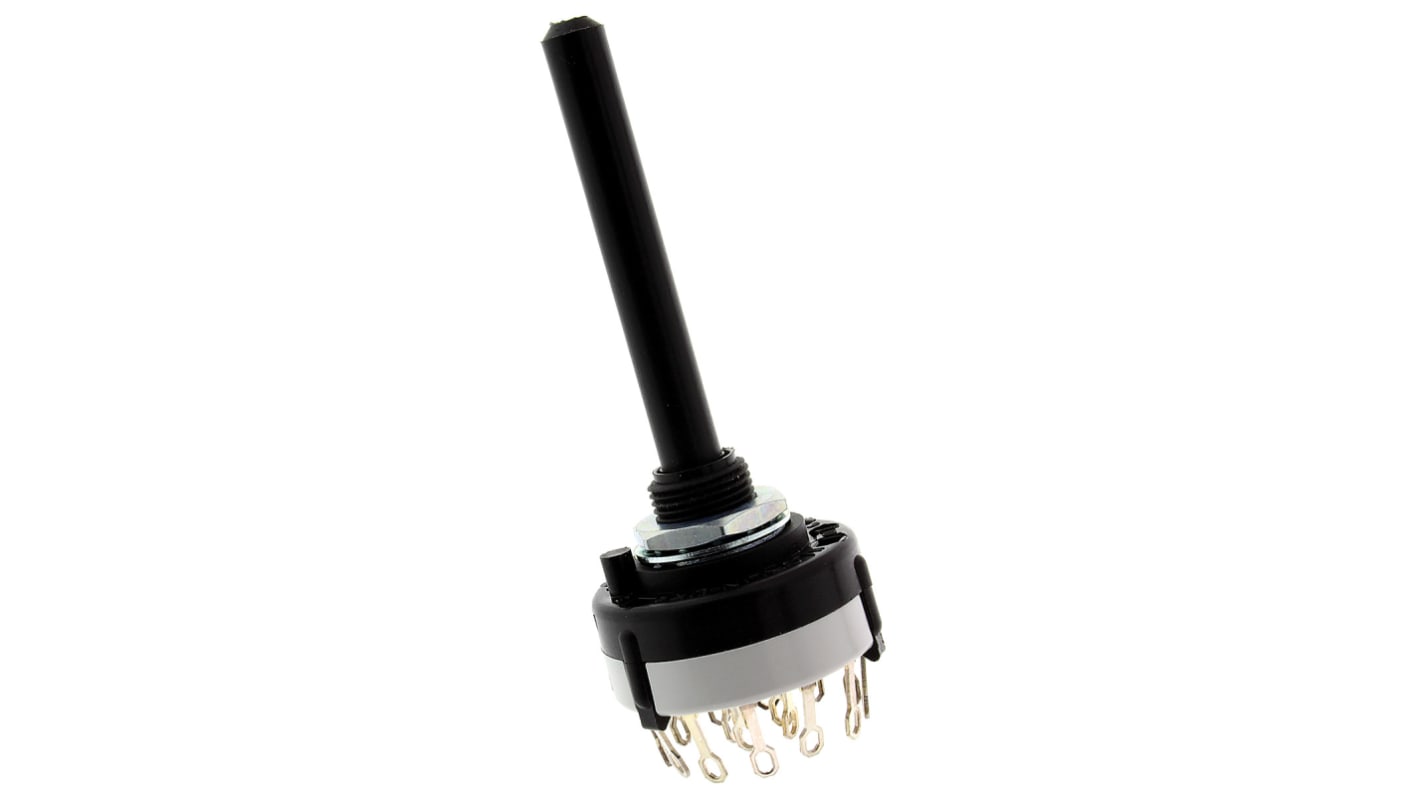

Lorlin, 3 Position 4P Rotary Switch, 150 mA@ 250 V ac, Solder Tab

  • RS Stock No. 320-742
  • Mfr. Part No. CK1042
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Midget Wafer Switch 6mm Spindle - CK Series

A selection of Lorlin CK rotary switches with various switch configurations.

Contacts rated 150mA @ 250Vac/dc
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread

Note

739-2930 features continuous rotation without indexing stops

//media.rs-online.com/t_line/LD665180-01.gif
Specifications
Attribute Value
Contact Configuration 4P
Contact Current Rating 150 mA@ 250 V ac
Number of Switch Positions 3
Number of Contacts 4
Voltage Rating 250 V ac, 250 V dc
Depth 27.5mm
Width 27.5mm
Mounting Type Panel Mount
Terminal Type Solder Tab
Height 71.1mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
Contact Material Silver Plated Brass
487 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 9.82
units
Per unit
1 - 49
MYR9.82
50 - 99
MYR9.32
100 - 249
MYR8.72
250 - 499
MYR8.15
500 +
MYR7.44
