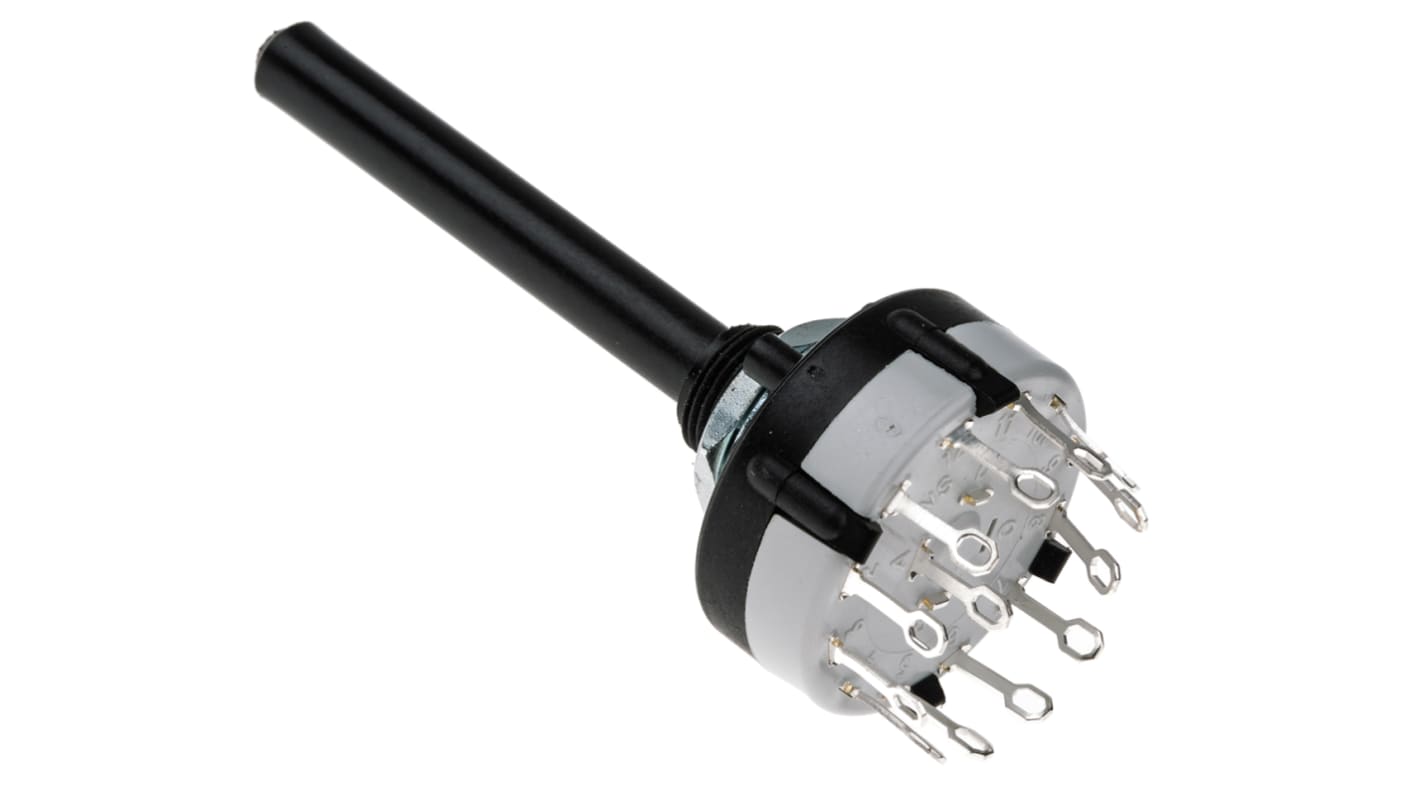

Lorlin, 12 Position SPST Rotary Switch, 150 mA @ 250 V ac, Solder Tab

RS Stock No.:: 320-679
Mfr. Part No.:: CK1029
Manufacturer:: Lorlin

Lorlin, 12 Position SPST Rotary Switch, 150 mA @ 250 V ac, Solder Tab

8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

57 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR30.85

Units	Per Unit
1 - 49	MYR30.85
50 - 99	MYR29.94
100 - 249	MYR29.01
250 - 499	MYR28.40
500 +	MYR27.77

RS Stock No.:: 320-679
Mfr. Part No.:: CK1029
Manufacturer:: Lorlin

Technical data sheets

CK Rotary Switch Datasheet

Legislation and Compliance

Product Details

Midget Wafer Switch 6mm Spindle - CK Series

A selection of Lorlin CK rotary switches with various switch configurations.

Contacts rated 150mA @ 250Vac/dc
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread

Note

739-2930 features continuous rotation without indexing stops

Specifications

Attribute	Value
Contact Configuration	SP
Contact Current Rating	150 mA @ 250 V ac
Number of Switch Positions	12
Number of Contacts	1
Voltage Rating	250 V ac, 250V dc
Depth	27.5mm
Width	27.5mm
Mounting Type	Panel Mount
Terminal Type	Solder Tab
Height	71.1mm
Contact Material	Silver Plated Brass
Contact Type	Non-Shorting
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-30°C
