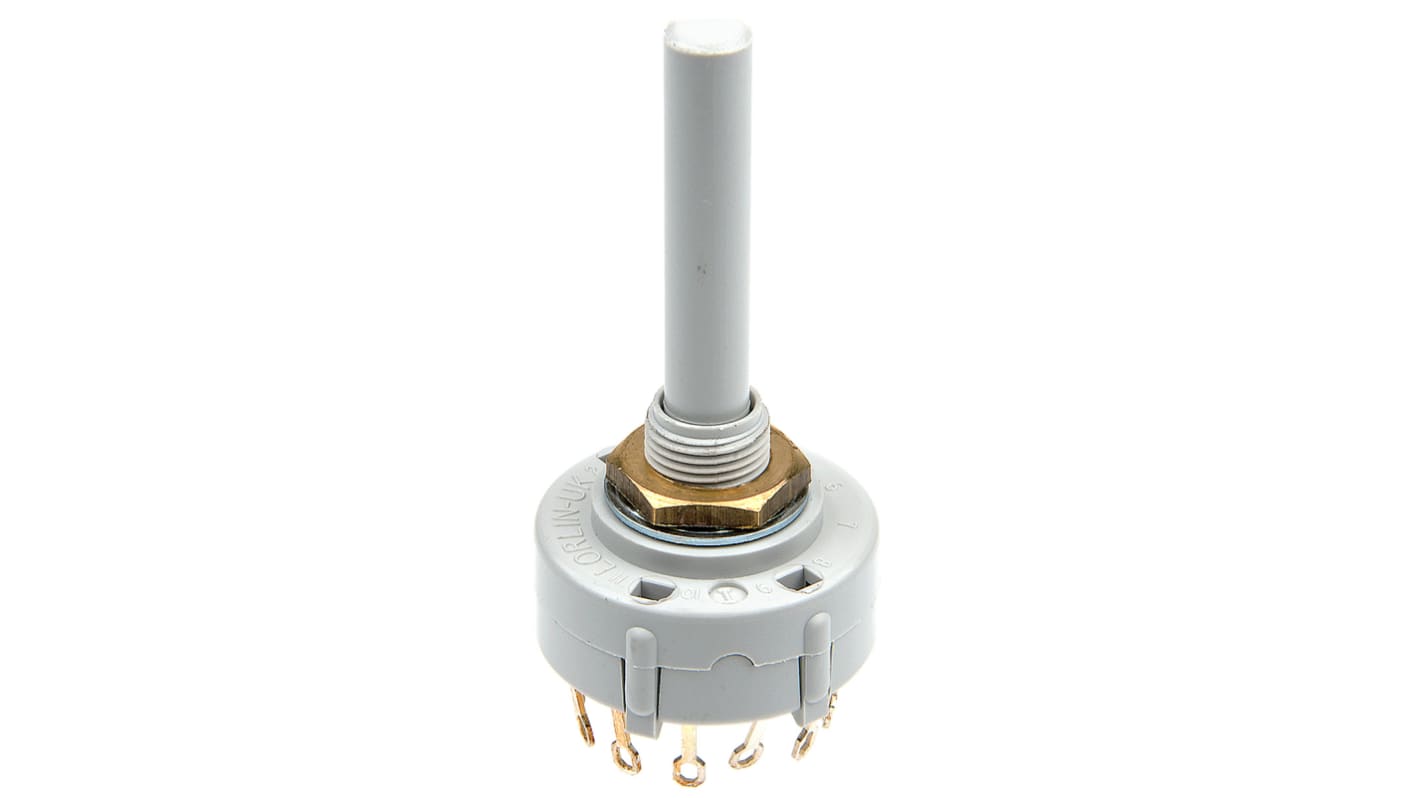

Lorlin, 12 Position SP Rotary Switch, 150 mA @ 250 V ac, Solder Tab

  • RS Stock No. 320-180
  • Mfr. Part No. CK1024
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Midget Wafer Switch - CK Series Imperial

A selection of Lorlin CK rotary switches with various switch configurations.

Contacts rated 150mA @ 250Vac/dc
Solder terminals
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) and non-shorting BBM (break before make) contacts
Adjustable stop and continuous rotation options
Dimensions:1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread

Specifications
Attribute Value
Contact Configuration SP
Contact Current Rating 150 mA @ 250 V ac
Number of Switch Positions 12
Number of Contacts 1
Voltage Rating 250 V ac, 250 V dc
Depth 27.5mm
Width 27.5mm
Mounting Type Panel Mount
Terminal Type Solder Tab
Angle of Throw 90°
Contact Material Silver Plated Brass
Height 59.1mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
Contact Type Non-Shorting
