Cylindrical Roller Bearing NU 205 ECP, 25mm I.D, 52mm O.D

  • RS Stock No. 285-1822
  • Mfr. Part No. NU 205 ECP
  • Manufacturer SKF
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

NU Series ECP

Typical applications for roller bearings include stationary or automotive gearboxes, electric motors, pumps and compressors, material handling equipment and paper machines to name a few.

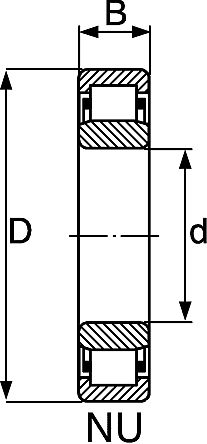

The NU design has integral flanges at the outer ring and a displaceable inner ring without flanges
Permits axial displacement between shaft and housing in both directions - allowing linear expansion which makes bearing ideal for use as a floating or guide bearing
Used where heavy loads are combined with high speeds
High operational reliability and running accuracy
Quiet operation, low vibration and operating temperatures
Easy mounting, little maintenance and a long service life

//media.rs-online.com/t_line/LD285182-01.gif
//media.rs-online.com/t_line/LF285182-10.gif

Single Row - Cylindrical

Typical applications for roller bearings include gearboxes and gear trains. Bearings supplied with instruction leaflet.

Specifications
Attribute Value
Inside Diameter 25mm
Outside Diameter 52mm
Roller Bearing Type Cylindrical
Race Width 15mm
Bore Type Parallel
Static Load Rating 27kN
Cage Material Fibreglass Reinforced PA
Number of Rows 1
Dynamic Load Rating 28.6kN
End Type Open
Reference Speed 14000rpm
Limiting Speed 16000rpm
Fatigue Limit Load 3.35kN
6 Within 4 working day(s) (Global stock)
15 Within 4 working day(s) (Global stock)
Price Each
Was MYR214.75
MYR 212.52
units
Per unit
1 - 5
MYR212.52
6 - 11
MYR205.27
12 +
MYR196.04
