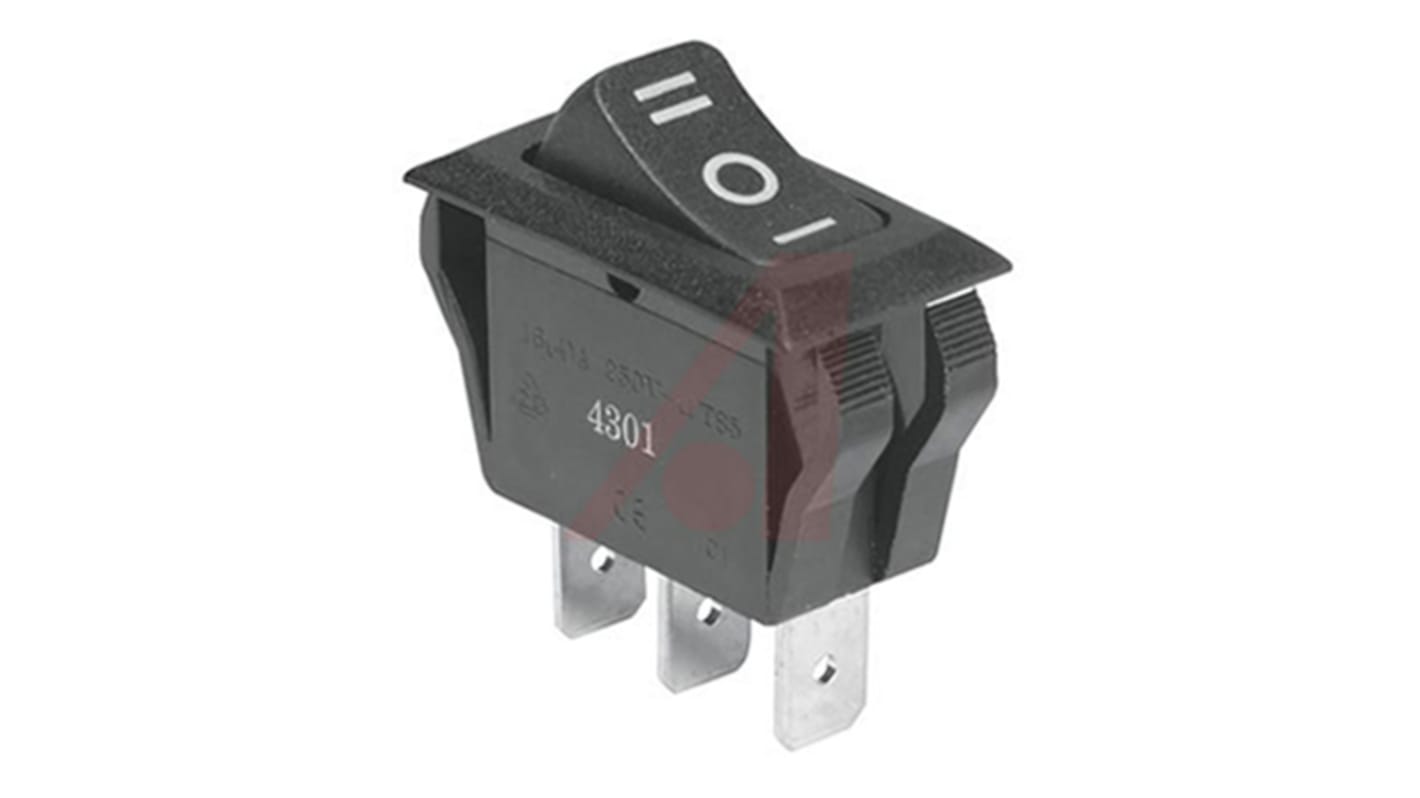

ZF SPDT, On-Off-On Rocker Switch Panel Mount
- RS Stock No.:
- 868-1590
- Mfr. Part No.:
- CRE24F2HBBNE
- Manufacturer:
- ZF
Temporarily out of stock - back order for despatch 09/05/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 50)
MYR8.62
| Units | Per Unit | Per Pack* |
| 50 + | MYR8.62 | MYR431.00 |
| *price indicative | ||
- RS Stock No.:
- 868-1590
- Mfr. Part No.:
- CRE24F2HBBNE
- Manufacturer:
- ZF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Cherry CR Series
Cherry CR series single pole rocker switches are a rugged design capable of switching up to 20 A. The CR series offers a high mechanical life and a compact design, making the switches suitable for a wide range of applications.
Rugged design to switch up to 20 amps
Fits 3 panel cut-out widths
Splash-proof option available
Mechanical life: min. 100,000 operations
SPST silver alloy contacts
Fits 3 panel cut-out widths
Splash-proof option available
Mechanical life: min. 100,000 operations
SPST silver alloy contacts
Approvals
VDE; UL; CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 29.21mm |
| Panel Cut Out Height | 12.1mm |
| Contact Current Rating | 20 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol); On (symbol) |
| Panel Cut Out Size | 12.1 x 29.21mm |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 125 V, 250V |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 20mΩ |
| Case Material | Nylon 66 |
| Operating Temperature Range | -20 → +85°C |
| Contact Material | Silver Alloy |
| Mechanical Life | 100000Operations |
| Maximum Operating Temperature | +85°C |
