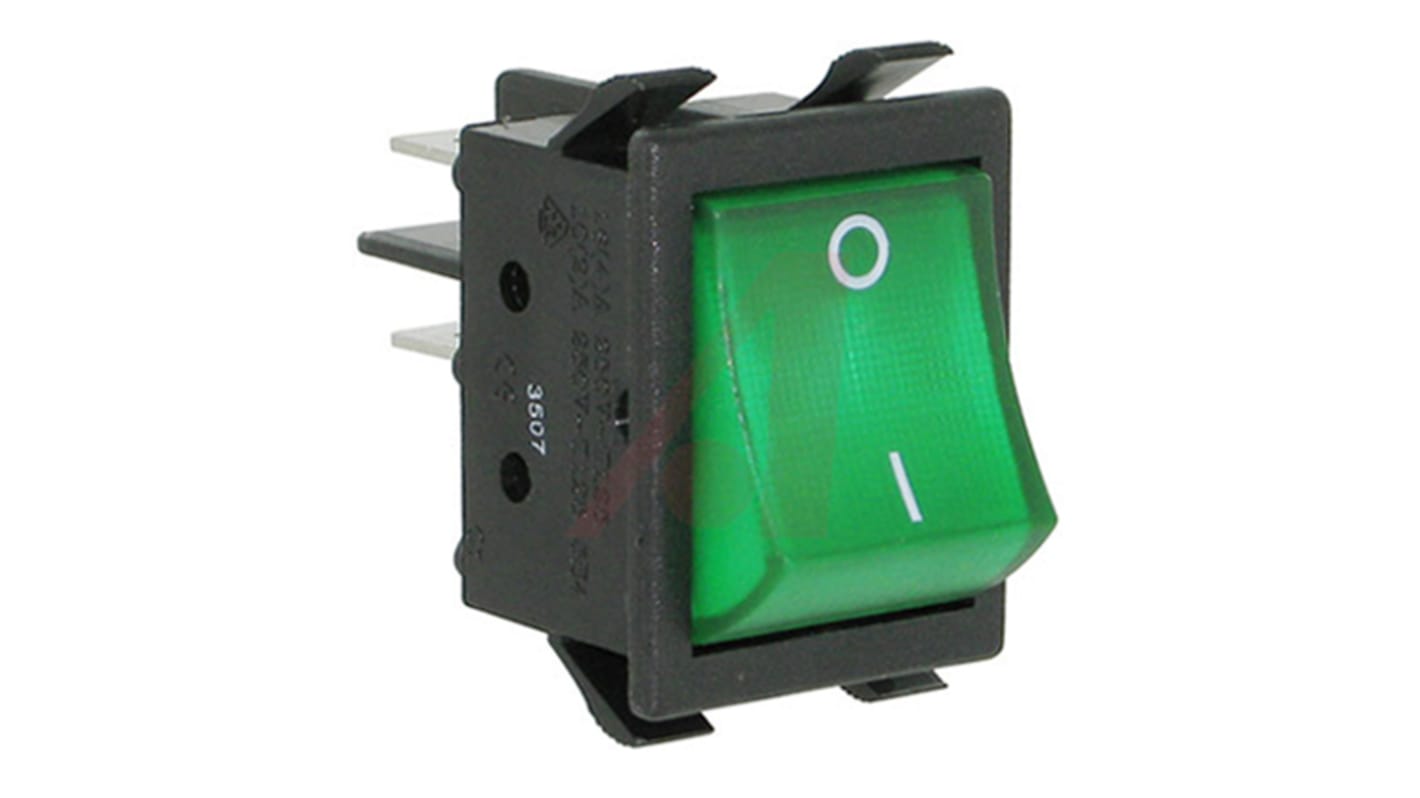

ZF Illuminated Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 868-1521
  • Mfr. Part No. WRG32F2FBGLN
  • Manufacturer ZF
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

WR Series Double Pole Power Rocker switch

Rugged construction for 2-pole, high-current applications
Mechanical life: min. 50,000 operations

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation On-None-Off
Panel Cut Out Width 30.48mm
Panel Cut Out Height 22.02mm
Contact Current Rating 16 A
Illuminated Yes
Actuator Colour Green
Mounting Type Panel Mount
Terminal Type Quick Connect
Legend Text On (symbol); Off (symbol)
Actuator Shape Rectangular
Minimum Operating Temperature -20°C
AC Voltage Rating 125 V, 250 V
Contact Material Silver Alloy
Contact Resistance 20mΩ
Panel Cut Out Size 22.02 x 30.48mm
Case Material Nylon 66
Mechanical Life 50000Operations
Operating Temperature Range -20 → +65°C
Maximum Operating Temperature +65°C
140 Within 2 working day(s)
360 Within 4 working day(s) (Global stock)
Price Each (In a Pack of 10)
MYR 10.539
units
Per unit
Per Pack*
10 +
MYR10.539
MYR105.39
*price indicative
