Product Details

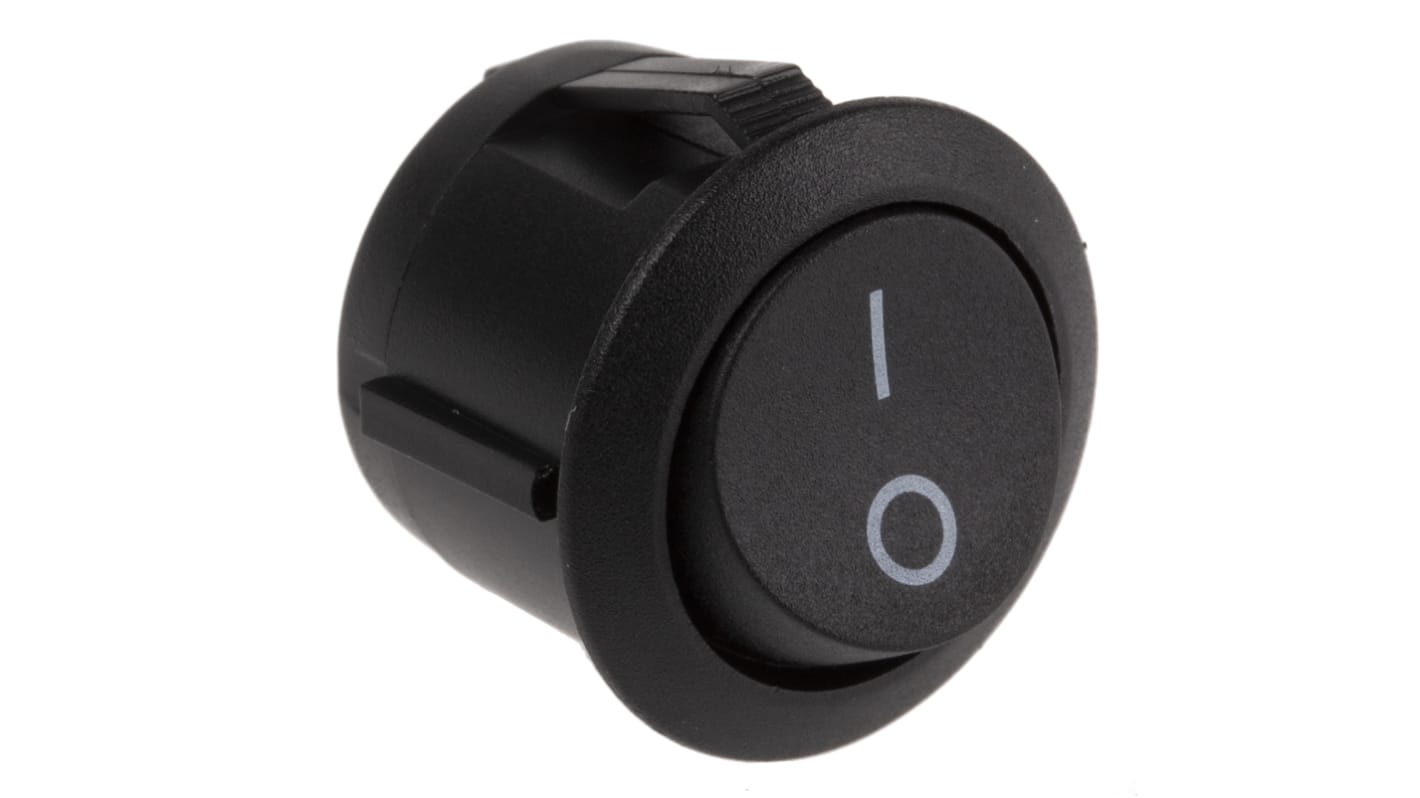

Circular Rocker
Contact rating 6 A@ 250 V ac / 10 A @ 125 V ac
Fitted with 4.8mm blade style terminals
Snap-in mounting, easy to install into panel
Nylon housing and rocker to UL 94V-2
Electrical life of more than 10000 cycles
Fitted with 4.8mm blade style terminals
Snap-in mounting, easy to install into panel
Nylon housing and rocker to UL 94V-2
Electrical life of more than 10000 cycles
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-Off |
Panel Cut Out Width | 20.8mm |
Panel Cut Out Height | 20.6mm |
Panel Cut Out Diameter | 20mm |
Contact Current Rating | 5 A @ 250 V ac |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Legend Text | On (symbol); Off (symbol) |
Actuator Shape | Round |
AC Voltage Rating | 250V |
Panel Cut Out Size | 20.6 x 20.8mm |
Maximum Operating Temperature | +125°C |
Mechanical Life | 10000Operations |
Operating Temperature Range | -25 → +125°C |
Contact Resistance | 30mΩ |
Contact Material | Copper Alloy |
Case Material | Nylon |
Minimum Operating Temperature | -25°C |
