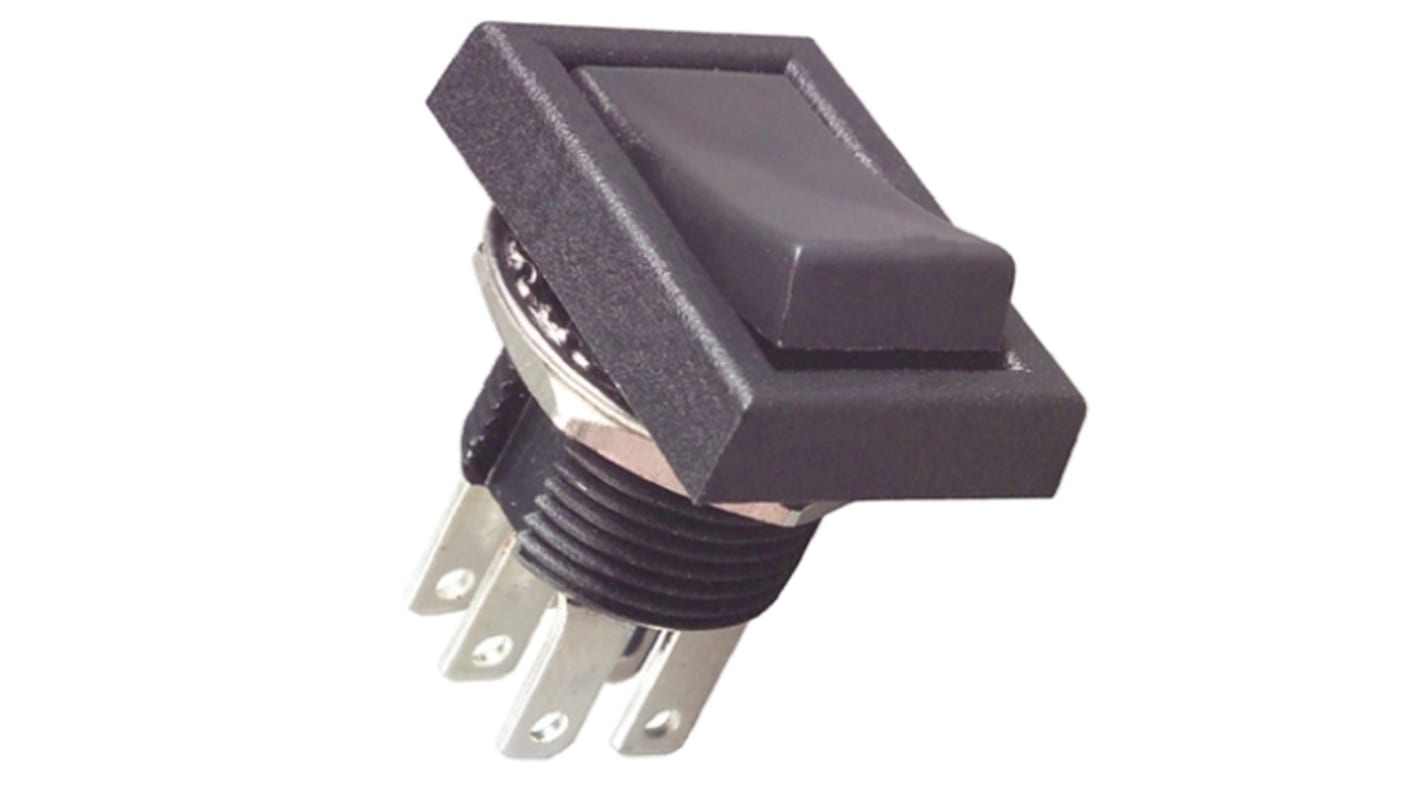

TE Connectivity DPDT, On-On Rocker Switch Panel Mount
- RS Stock No.:
- 783-1110
- Mfr. Part No.:
- TRD23N10QC04
- Manufacturer:
- TE Connectivity
22 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR108.48
| Units | Per Unit |
| 1 - 4 | MYR108.48 |
| 5 - 9 | MYR106.21 |
| 10 - 14 | MYR103.03 |
| 15 - 24 | MYR100.51 |
| 25 + | MYR98.31 |
- RS Stock No.:
- 783-1110
- Mfr. Part No.:
- TRD23N10QC04
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
TR Series Rocker Switch
TR Series subminiature rocker switches from Te Connectivity. Switch case and actuator have a polyamide construction and are available in single or double pole.
Silver or gold contact variants
Contact resistance 20 milliohms max
500 V Dielectric strength
Contact resistance 20 milliohms max
500 V Dielectric strength
Tyco Series
Easy snap in installation
Black housing
Illuminated rocker & various legend options
Black housing
Illuminated rocker & various legend options
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-On |
| Panel Cut Out Diameter | 15/32in |
| Contact Current Rating | 3 A @ 125 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Panel Cut Out Size | 11.91 (Dia.)mm |
| AC Voltage Rating | 125V |
