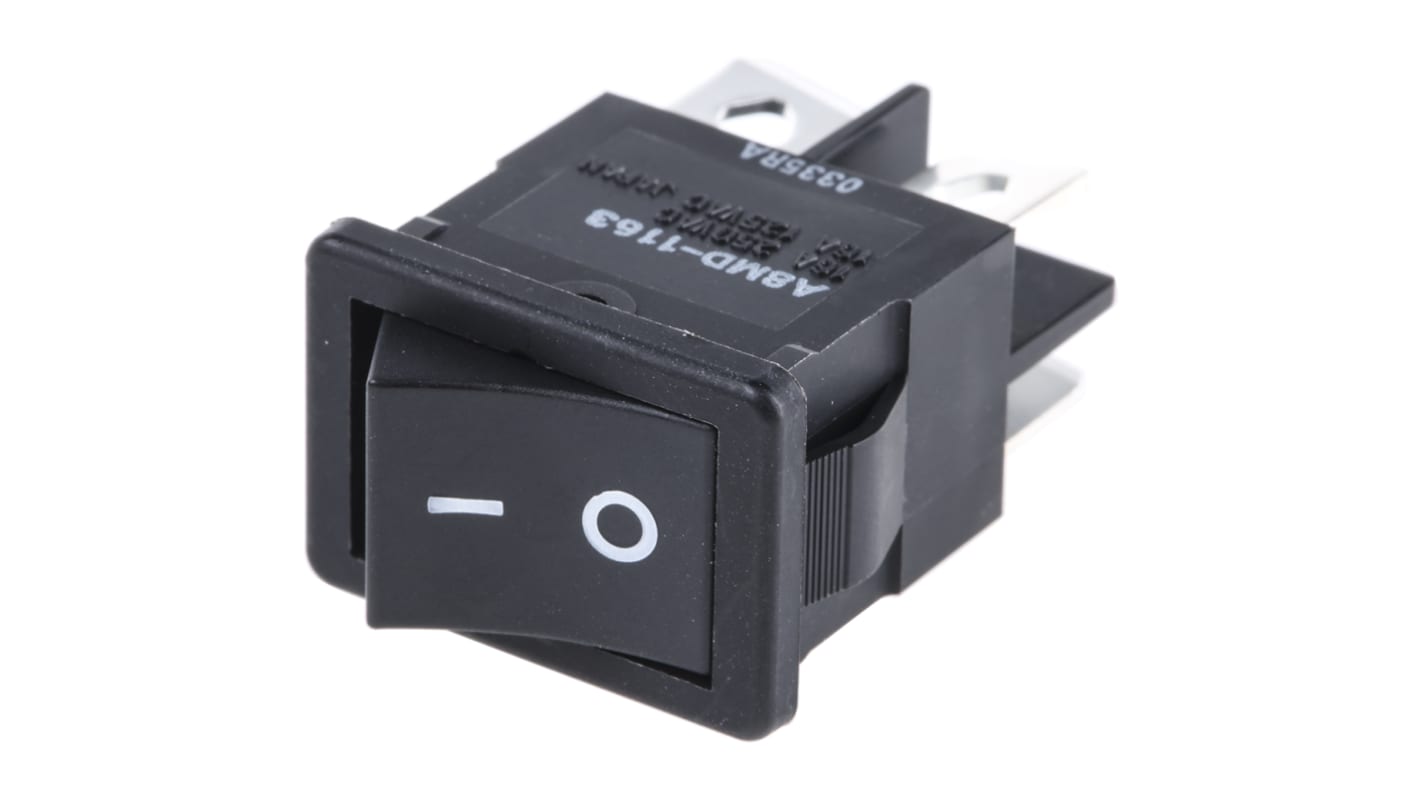

Omron DPST, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 707-7347
- Mfr. Part No.:
- A8MD-1163
- Manufacturer:
- Omron
Available for back order.
Added
Price Each
MYR31.10
| Units | Per Unit |
| 1 - 49 | MYR31.10 |
| 50 - 99 | MYR25.62 |
| 100 - 249 | MYR21.51 |
| 250 - 499 | MYR18.83 |
| 500 + | MYR17.44 |
- RS Stock No.:
- 707-7347
- Mfr. Part No.:
- A8MD-1163
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Miniature High Current rocker Switch - A8M Series
High current switching of 16 A
Two push button operation
UL and cUL standard approved
Conforms to EN standards
Two push button operation
UL and cUL standard approved
Conforms to EN standards
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | Latching |
| Panel Cut Out Width | 19.8mm |
| Panel Cut Out Height | 12.9mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| Panel Cut Out Size | 12.9 x 19.8mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
| Mechanical Life | 50000Operations |
| Operating Temperature Range | -25 → +55°C |
