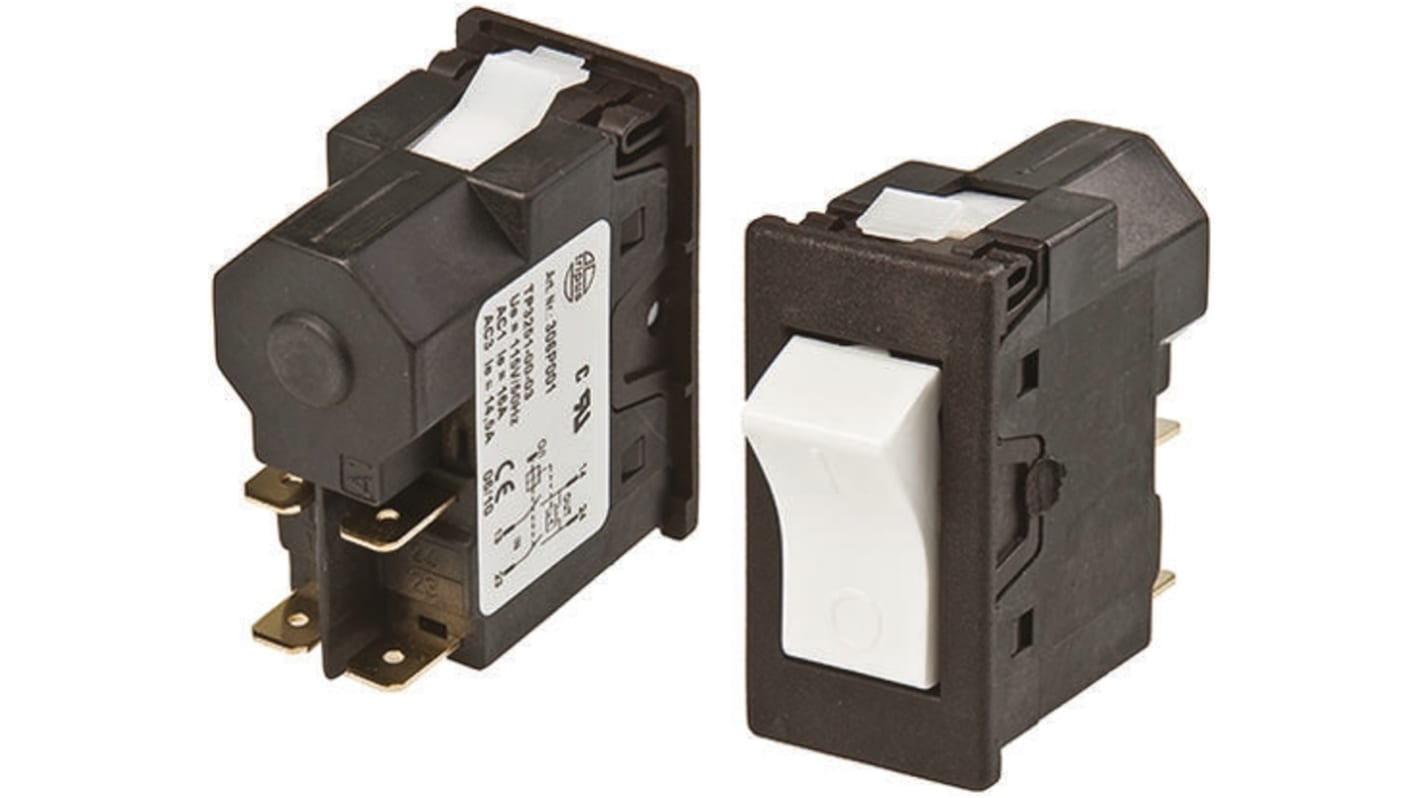

APEM DPST Rocker Switch Panel Mount

  • RS Stock No. 693-1244
  • Mfr. Part No. 306.001
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Tripus No-Volt Release Switches

From Apem, this no-volt release switch features a colour coded off and on momentary action switch. Typically used in industrial environments, the switch is protected to IP65 on the button side, thanks to a clear flexible barrier.

Stock No: 693-1256 is a more basic no-volt release switch that forgoes the colour coding and protective barrier, and as such is only protected to IP40.

Approvals

UL; VDE; DIN

Specifications
Attribute Value
Contact Configuration DPST
Panel Cut Out Width 22.1mm
Panel Cut Out Height 46.5mm
Contact Current Rating 16 A @ 115 V ac
Actuator Colour White
Mounting Type Panel Mount
IP Rating IP40
Panel Cut Out Size 46.5 x 22.1mm
23 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 73.61
units
Per unit
1 - 9
MYR73.61
10 - 49
MYR62.17
50 - 99
MYR53.54
100 - 249
MYR47.82
250 +
MYR45.22
