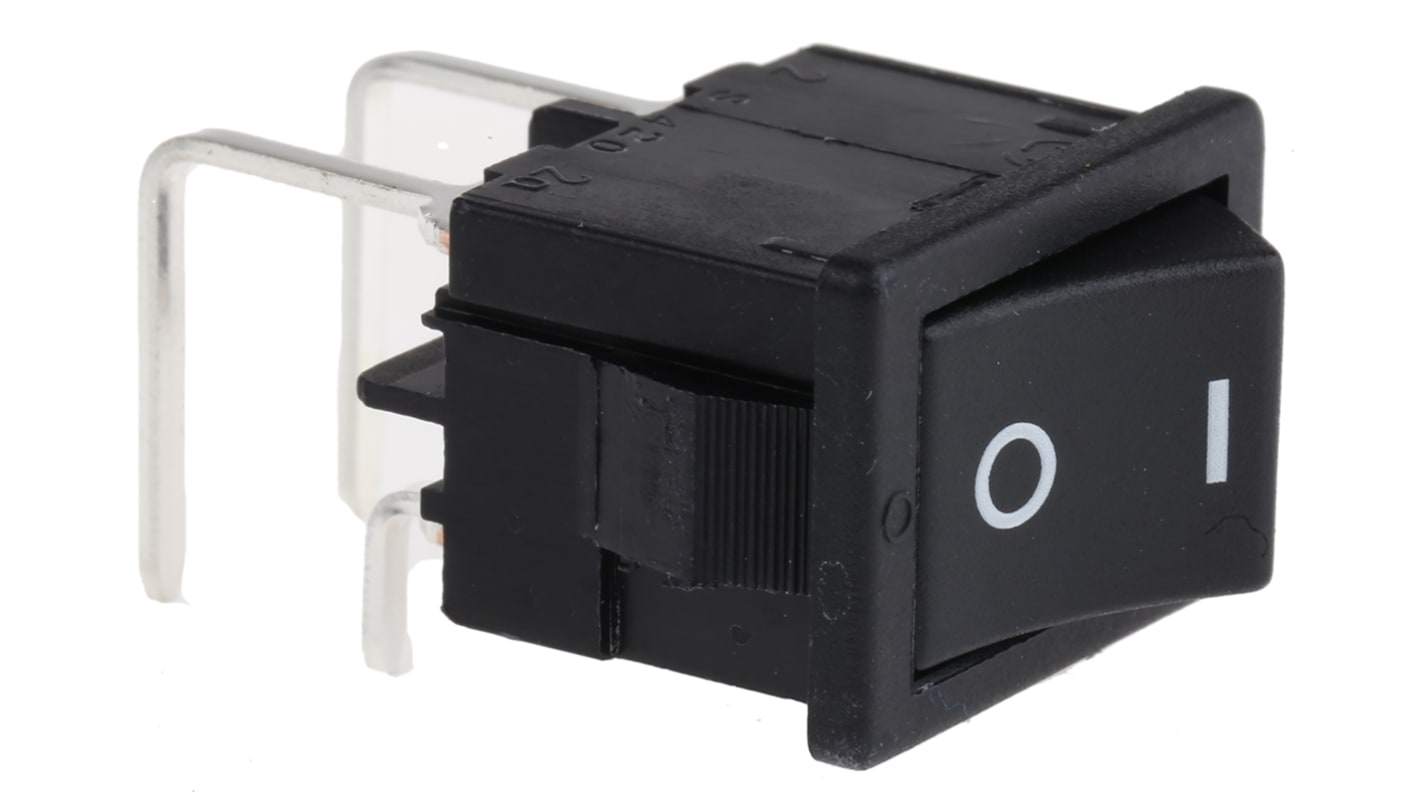

Marquardt Double Pole Single Throw (DPST), Latching Rocker Switch PCB

  • RS Stock No. 607-7539
  • Mfr. Part No. 1858.4205
  • Manufacturer Marquardt
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Marquardt 1858 Series Rocker Switches

Marquardt 1858 series of miniature double pole single throw rocker switches. The non illuminated 1858 rocker switches are suitable for use in Class II appliances and are available in a choice of PCB mount or 4.8mm Faston/Quick Connect style tab terminals with or without abrasion-proof on-off legends. The miniature rocker switch material is immediately self-extinguishing to UL94V-0 and has a silk matt surface finish that snap fits into panel cut-outs with a panel thickness of between 0.75 and 3mm, the fixing ribs on the switch housing ensures a tight fit. These rocker switches have silver contacts with a DPST (on-off) switching format, a contact resistance <100mΩ and an insulation resistance of >100MΩ.
A transparent PVC cover is available to protect the 1858 series of rocker switches from dust and water ingression and to give the rocker switch actuator an IP64 rating.

High inrush current (capacitive) up to 100A
Contact distance ≥3mm
Operating force ≤5N
UL 94 V-0 flammability rated
Conforms to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30

Note

See stock number 133-6287 for a suitable splashproof PVC cover.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC

Marquardt Rocker Switches

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation Latching
Panel Cut Out Width 12.9mm
Panel Cut Out Height 19.2mm
Contact Current Rating 12 A
Illuminated No
Actuator Colour Black
Mounting Type PCB
IP Rating IP40
Terminal Type Right Angle PC Pin
Actuator Shape Rectangular
AC Voltage Rating 250V
Panel Cut Out Size 19.4 x 12.9mm
369 Within 4 working day(s) (Global stock)
1107 Within 4 working day(s) (Global stock)
Price Each
MYR 16.78
units
Per unit
1 - 49
MYR16.78
50 - 99
MYR16.28
100 - 249
MYR15.80
250 - 499
MYR15.51
500 +
MYR15.14
