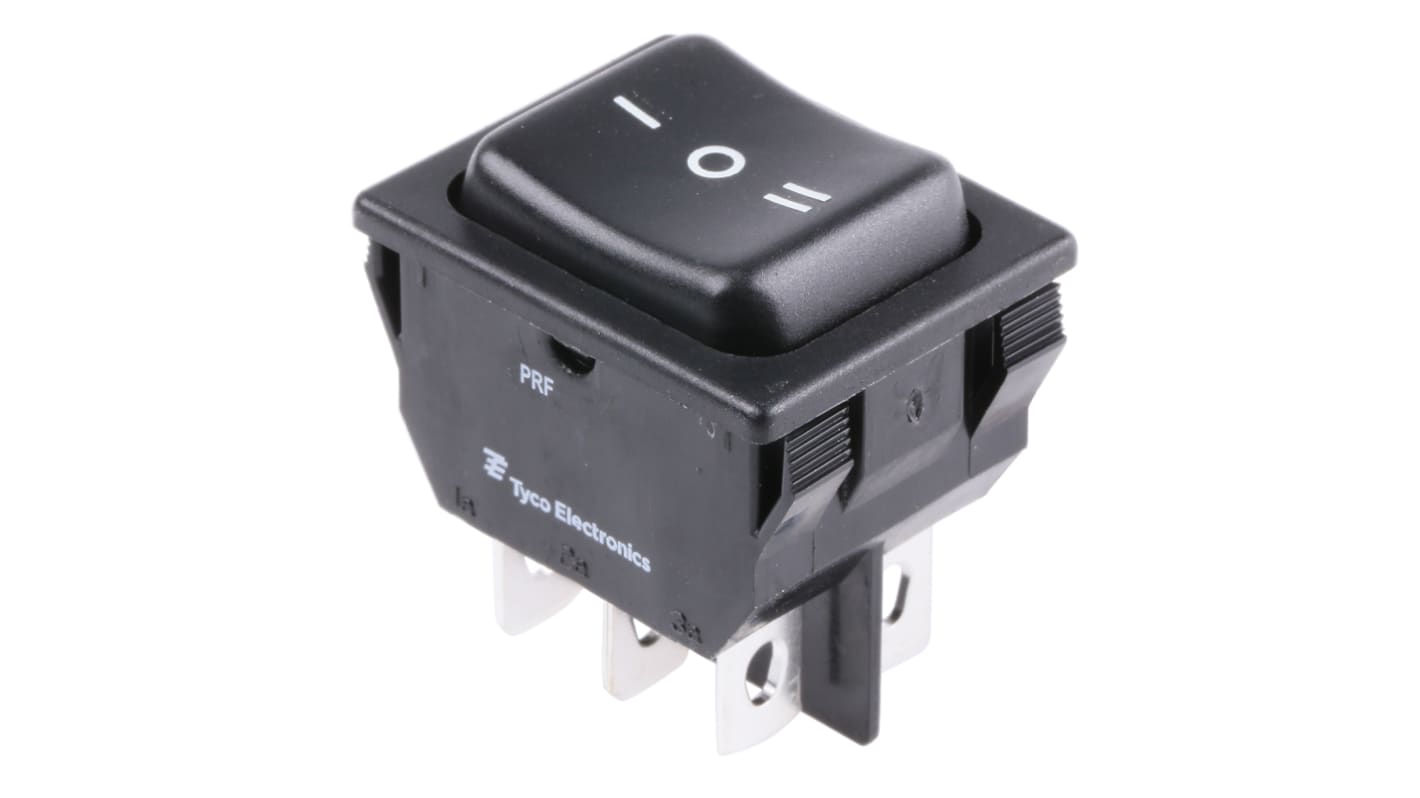

TE Connectivity Double Pole Double Throw (DPDT), On-Off-On Rocker Switch Panel Mount

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

PRF Series

PRF or Power Rocker Switches are the most common and universally used types if switches, due to their key characteristics of reliability and ease of use. Typically, this device is an on-off switch that rocks back and forth like a see-saw, hence the name ’Rocker’.

TE Connectivity presents their PRF Series which include a full line of single or double-pole power rocker switches for three different industry compatible panel cut-out sizes.

Feature and Benefits

• Easy to install snap-in mounting
• Dual colour rocker option
• Full-illuminated rocker option
• LED window illuminated option
• Wide range of marking options and functions available
• Cost competitive

Applications

• Home Appliances
• Power Tools
• Floor Care Equipment
• Small Appliances
• Lighting
• And more…

//media.rs-online.com/t_line/L495399-01.gif

Tyco Series

Easy snap in installation
Black housing
Illuminated rocker & various legend options

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation On-Off-On
Panel Cut Out Width 22.2mm
Panel Cut Out Height 30.2mm
Contact Current Rating 16 A @ 125 V ac
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Contact Resistance 50mΩ
Panel Cut Out Size 30.2 x 22.2mm
Mechanical Life 100000Operations
Contact Material Silver Tin Oxide
Case Material Nylon 66
782 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 13.67
units
Per unit
1 - 49
MYR13.67
50 - 99
MYR12.99
100 - 249
MYR12.34
250 - 499
MYR11.72
500 +
MYR11.13
