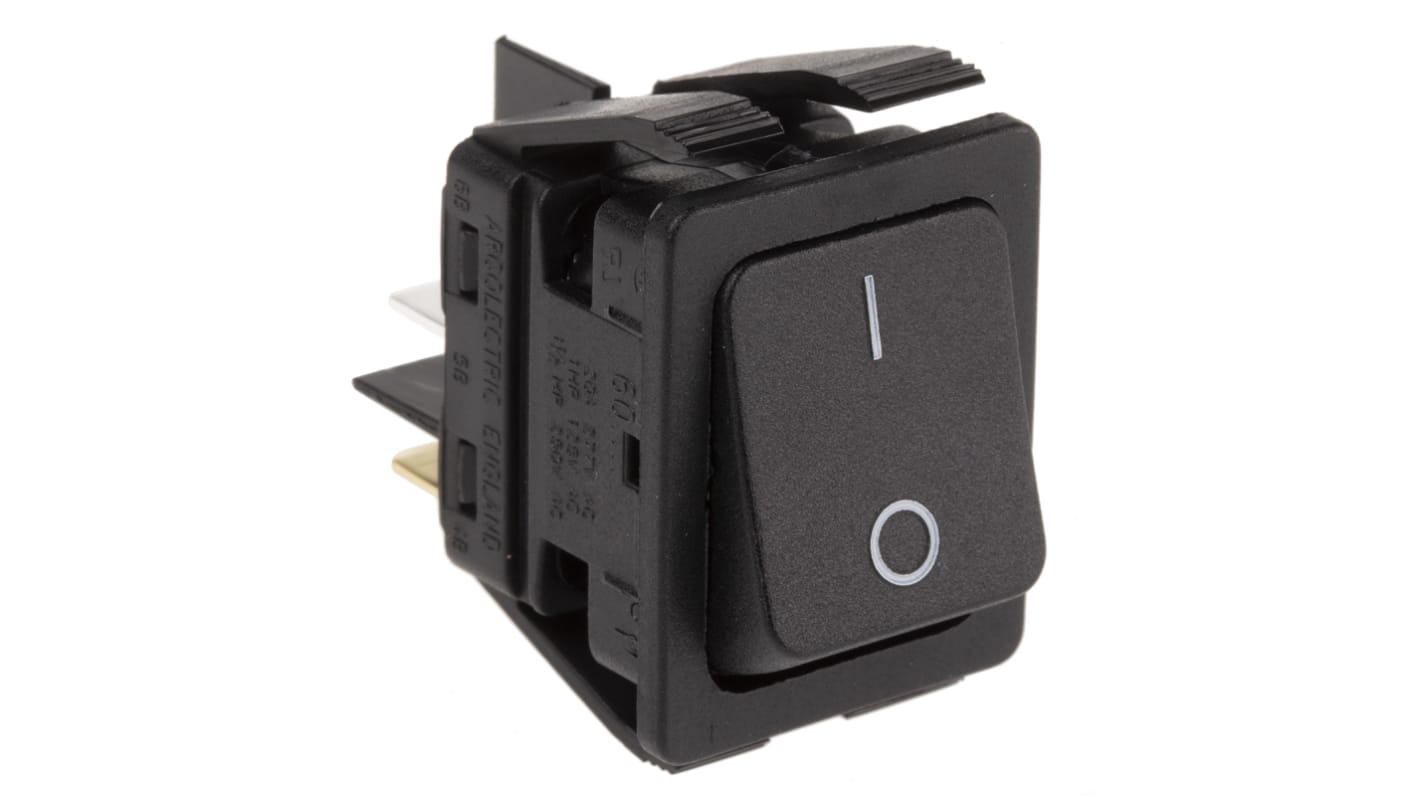

Arcolectric Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 377-9743
  • Mfr. Part No. C6050ALAAC
  • Manufacturer Arcolectric
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Splashproof, 6000 Series Rocker Switches

A range of splashproof double pole rocker switches designed for panel mounting. The IP44 rated switches feature clever channels at each side of the Soft-line actuator directing any moisture or water droplets away from current-carrying parts. This unique feature makes the 6000 series of splash-proof rocker switches ideal for environments where equipment is exposed to damp or wet conditions. The latching on-off switches are available with a black body in a choice of illuminated or non- illuminated depending on the application and design requirements.
Features and benefits
• I/O markings
• An option of red or green illumination
• 3 mm contact gap with positive break switching
• Easy touch rocker actuator
• Snap-in plastic prongs on the switch sides for secure panel retention
• 30 x 22.1 mm cut out
• Connection via push on receptacles
• DPST configuration
• AC Mains rated
Typical applications for rocker switches
Rocker switches are one of the most frequently used electrical switches in the market today. The splashproof 6000 series switches are ideal for applications where the presence of moisture is a possibility. Some of the most common areas are
• Medical equipment
• Laboratory appliances
• Kitchen equipment
FAQ
Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear, so the connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.


Approvals

ENEC; UL; CSA

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation On-Off
Panel Cut Out Width 22.1mm
Panel Cut Out Height 30mm
Contact Current Rating 16 A@ 250 V ac
Actuator Colour Black
Mounting Type Panel Mount
IP Rating IP44
Terminal Type Quick Connect
Actuator Shape Rectangular
Panel Cut Out Size 30 x 22.1mm
AC Voltage Rating 125 V, 250 V
34 Within 2 working day(s)
4121 Within 4 working day(s) (Global stock)
Price Each
MYR 7.51
units
Per unit
1 - 49
MYR7.51
50 - 99
MYR6.80
100 - 249
MYR6.18
250 - 499
MYR5.73
500 +
MYR5.48
