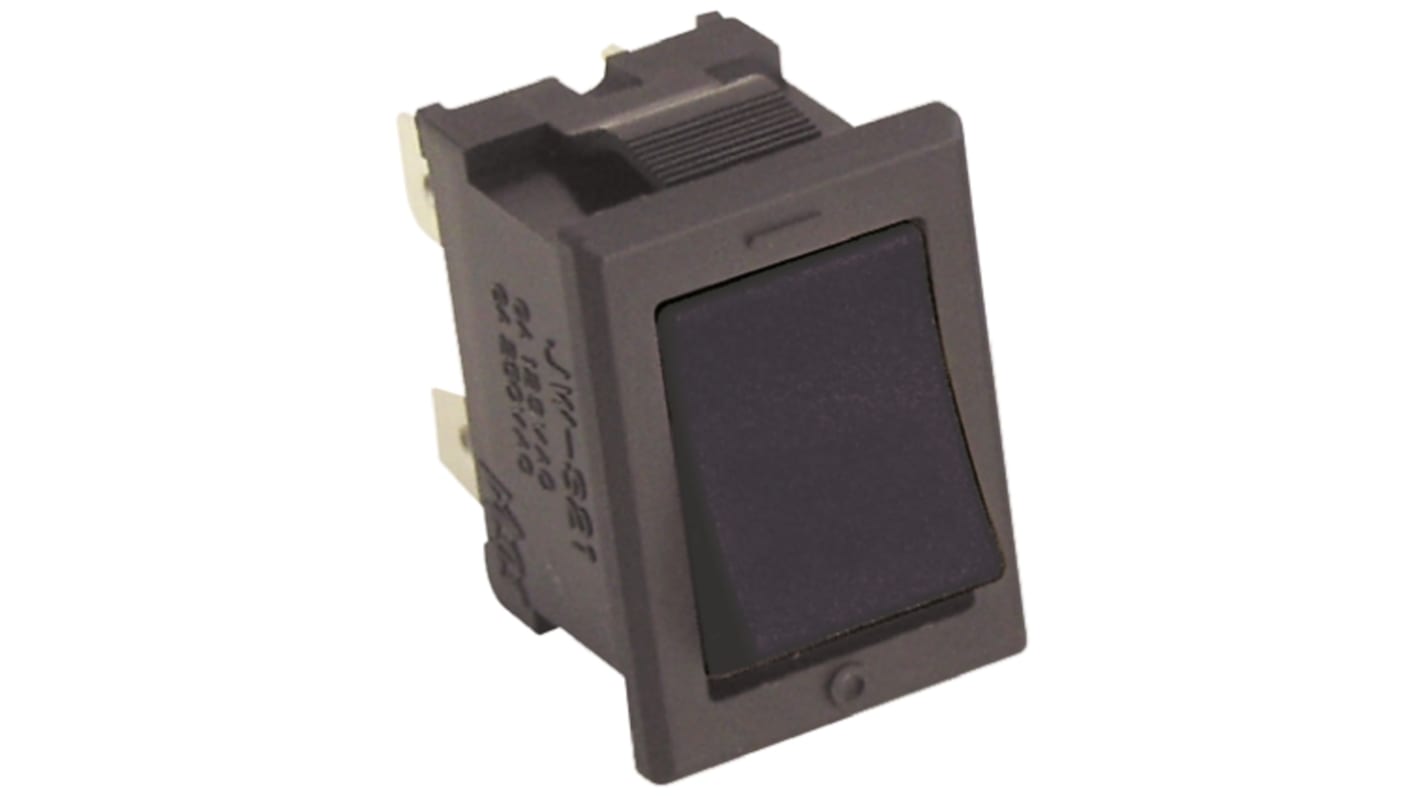

NKK Switches DPST, On-None-Off Rocker Switch Panel Mount

RS Stock No.:: 354-3780
Mfr. Part No.:: JW-S21RKK
Manufacturer:: NKK Switches

NKK Switches DPST, On-None-Off Rocker Switch Panel Mount

383 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR16.21

Units	Per Unit
1 - 49	MYR16.21
50 - 99	MYR15.88
100 - 249	MYR15.55
250 - 499	MYR15.23
500 +	MYR14.91

RS Stock No.:: 354-3780
Mfr. Part No.:: JW-S21RKK
Manufacturer:: NKK Switches

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Rocker switch JW series
(low capacity)

15 x 21 mm compact size (switch top face)
One-touch snap-in installation
Moulded material is UL 94V-0 certified with excellent self-extinguishing characteristics
Terminal insert moulding prevents flux penetration and loosening of terminals
Contact distance of at least 3 mm has excellent insulation / withstand voltage characteristics
Two types: partially illuminated and non-illuminated

Standards

UL CSA C-UL VDE

Nihon Kaiheiki Ind. Co. Range

Specifications

Attribute	Value
Contact Configuration	Double Pole Single Throw (DPST)
Switch Operation	On-None-Off
Panel Cut Out Width	12.9mm
Panel Cut Out Height	19.2mm
Contact Current Rating	10 A @ 125/250 V ac
Illuminated	No
Actuator Colour	Black
Mounting Type	Panel Mount
Terminal Type	Quick Connect, Solder
AC Voltage Rating	125 V, 250V
Panel Cut Out Size	19.2 x 12.9mm
Actuator Shape	Rectangular
Contact Resistance	10mΩ
Maximum Operating Temperature	+70°C
Mechanical Life	30000Operations
Case Material	Polyamide
Minimum Operating Temperature	-25°C
Contact Material	Silver
Operating Temperature Range	-25 → +70°C
