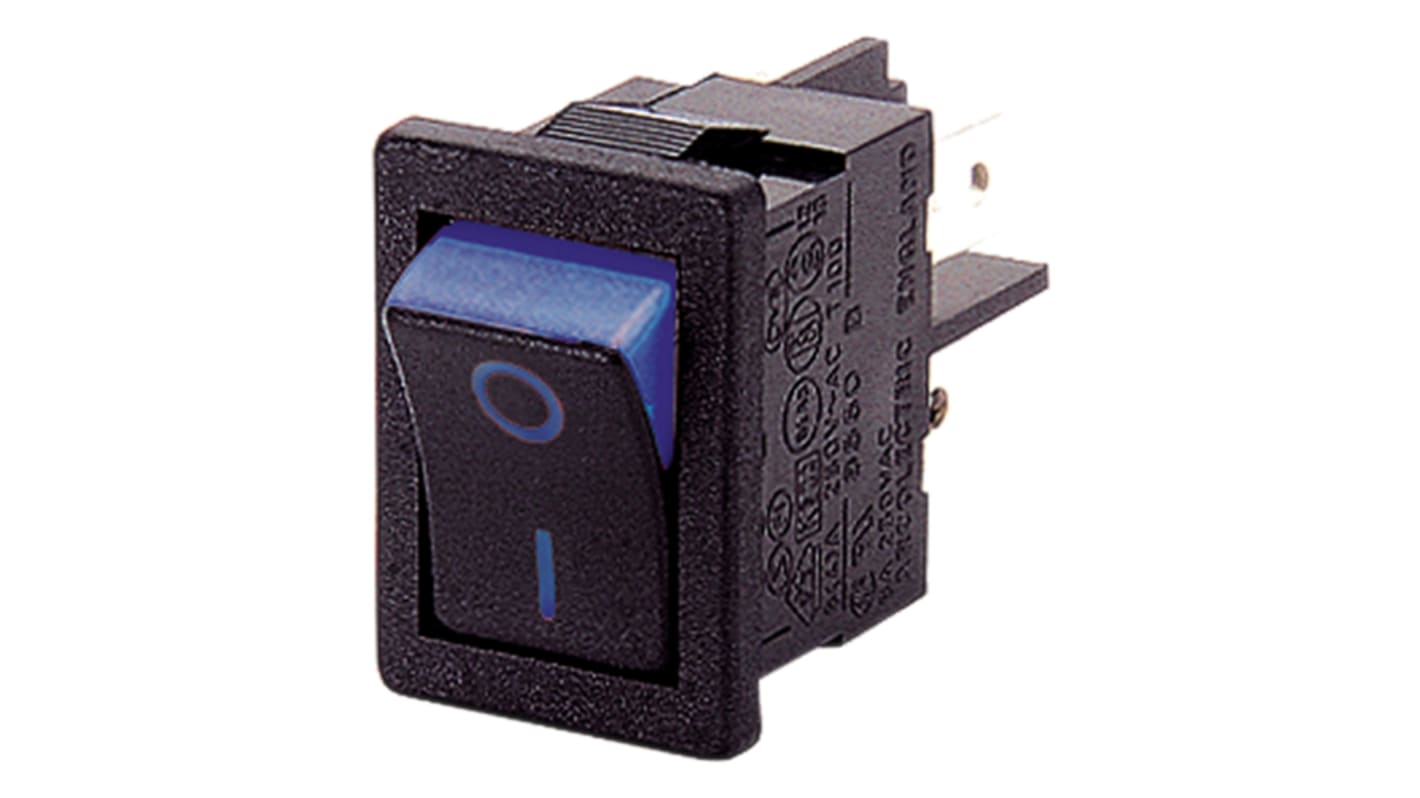

Arcolectric (Bulgin) Ltd DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 282-8232
- Mfr. Part No.:
- H8550XBAAD
- Manufacturer:
- Arcolectric (Bulgin) Ltd
102 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
203 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR14.99
| Units | Per Unit |
| 1 - 49 | MYR14.99 |
| 50 - 99 | MYR14.67 |
| 100 - 249 | MYR14.23 |
| 250 - 499 | MYR13.88 |
| 500 + | MYR13.57 |
- RS Stock No.:
- 282-8232
- Mfr. Part No.:
- H8550XBAAD
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Switches Series 8550
Miniature panel-mounted toggle switches.
Cutting tool to use: stock no. 600-155.
Front face position marking I-O.
Recommended for Class II equipment.
Faston 4.8 x 0.8 mm terminal connection.
Cutting tool to use: stock no. 600-155.
Front face position marking I-O.
Recommended for Class II equipment.
Faston 4.8 x 0.8 mm terminal connection.
Approvals
UL, CSA, VDE and NF USE
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.4mm |
| Contact Current Rating | 15 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Blue |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 19.4 x 12.9mm |
