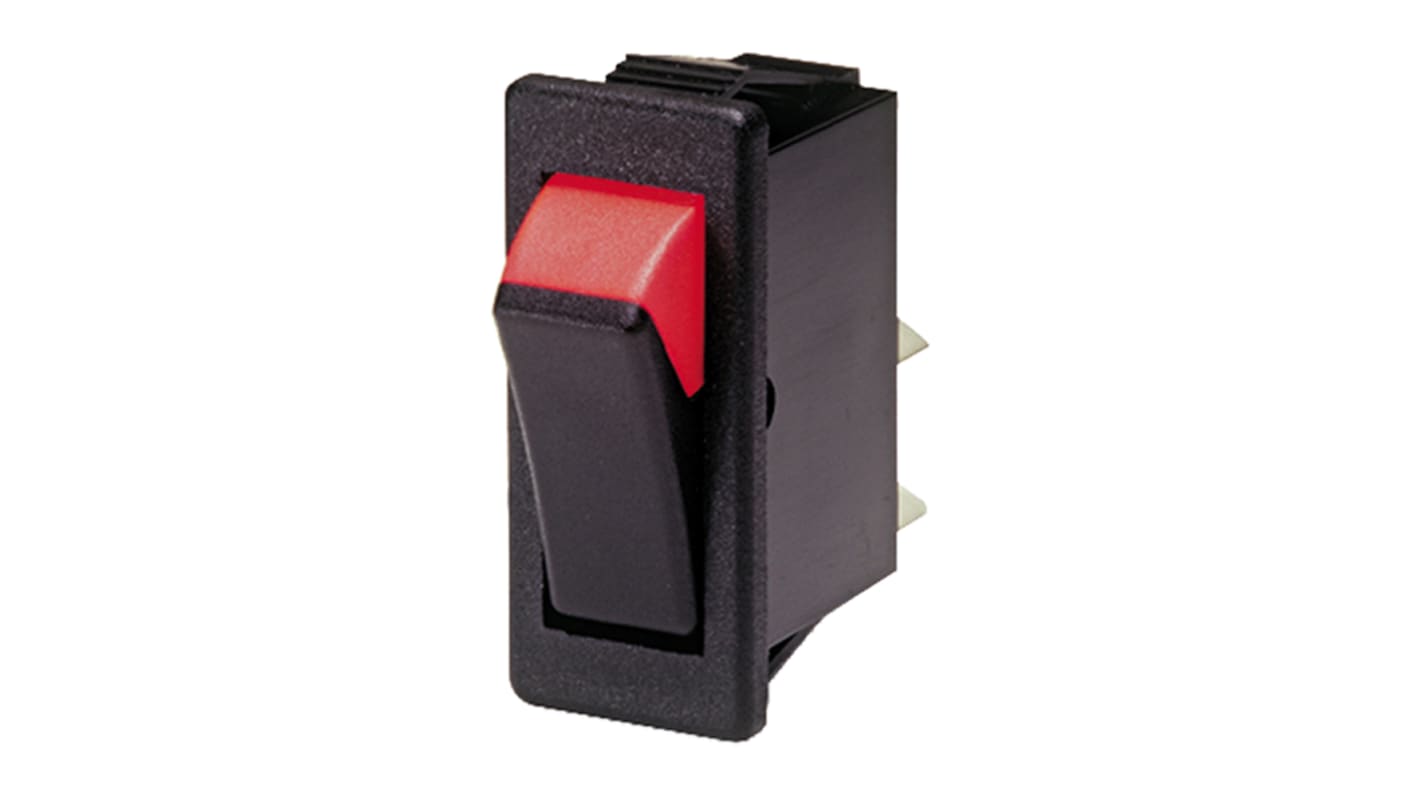

Arcolectric (Bulgin) Ltd SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 278-9806
- Mfr. Part No.:
- C1300XAAAA
- Manufacturer:
- Arcolectric (Bulgin) Ltd
629 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR13.53
| Units | Per Unit |
| 1 - 49 | MYR13.53 |
| 50 - 99 | MYR13.24 |
| 100 - 249 | MYR12.84 |
| 250 - 499 | MYR12.53 |
| 500 + | MYR12.26 |
- RS Stock No.:
- 278-9806
- Mfr. Part No.:
- C1300XAAAA
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Rocker switch cut-out dimension 12.2 x 27.2 Series 1300
Panel clip-on switches with high breaking capacity.
Black body and buttons with red or green indicator light.
Single pole normally open contact (ON-OFF).
Recommended for Class II equipment.
Faston 6.3 mm terminal connection.
Black body and buttons with red or green indicator light.
Single pole normally open contact (ON-OFF).
Recommended for Class II equipment.
Faston 6.3 mm terminal connection.
Approvals
UL, CSA, VDE and NF USE
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 12.2mm |
| Panel Cut Out Height | 27.2mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Illuminated | No |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Panel Cut Out Size | 27.2 x 12.2mm |
| AC Voltage Rating | 125 V, 250V |
| Actuator Shape | Rectangular |
