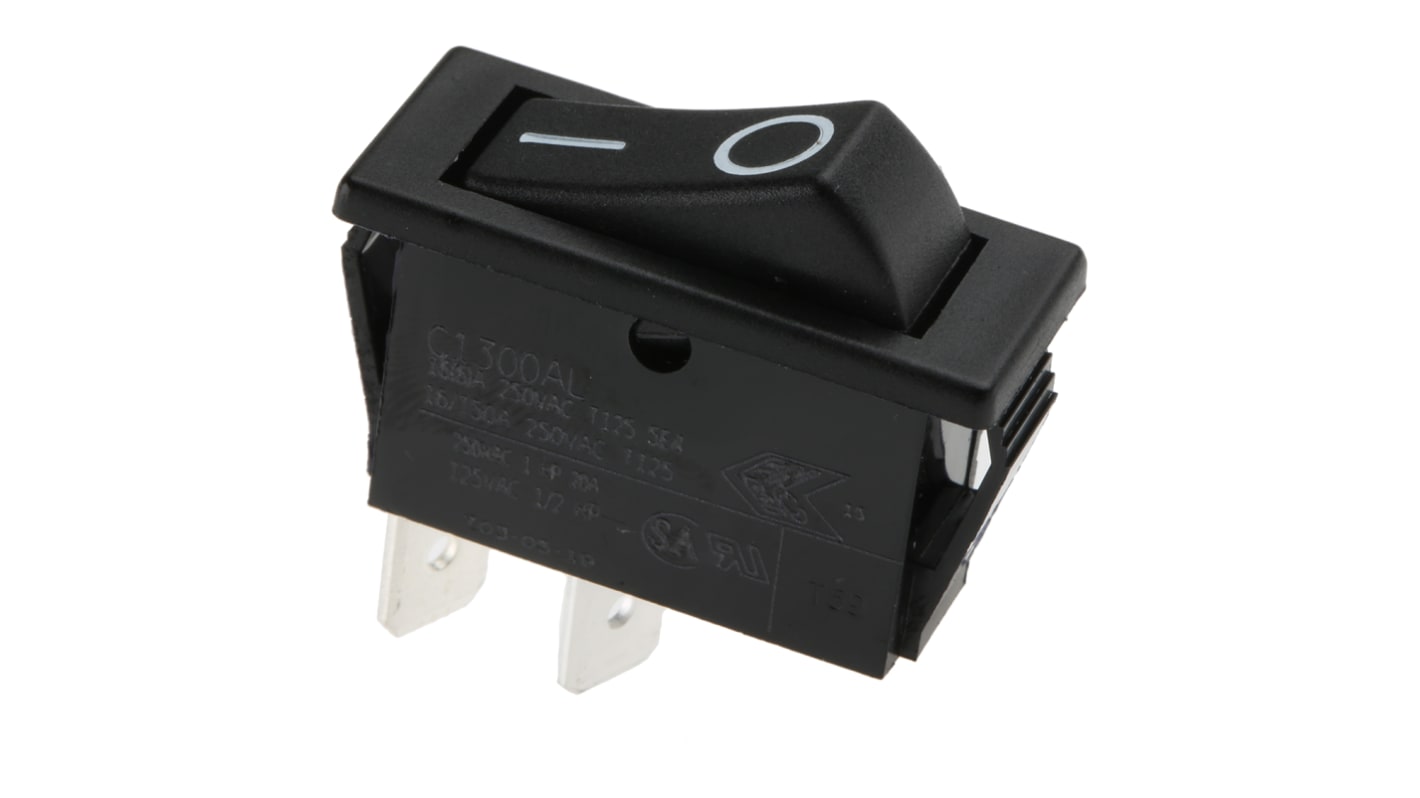

Arcolectric (Bulgin) Ltd SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 278-9733
- Mfr. Part No.:
- C1300ALAAA
- Manufacturer:
- Arcolectric (Bulgin) Ltd
22 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
395 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR13.13
| Units | Per Unit |
| 1 - 49 | MYR13.13 |
| 50 - 99 | MYR12.83 |
| 100 - 249 | MYR12.44 |
| 250 - 1249 | MYR12.14 |
| 1250 + | MYR9.98 |
- RS Stock No.:
- 278-9733
- Mfr. Part No.:
- C1300ALAAA
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
1300 Series High Inrush
Snap-in panel mounting rocker switches
Silver contacts with positive break switching action
High inrush current capability - 150A
Recommended for use in Class II equipment
Connection via .250in faston terminals
50000 operation electrical life
Nylon 6·6 (UL 94 V-2) actuator marked with 0-I legend to EN602
Silver contacts with positive break switching action
High inrush current capability - 150A
Recommended for use in Class II equipment
Connection via .250in faston terminals
50000 operation electrical life
Nylon 6·6 (UL 94 V-2) actuator marked with 0-I legend to EN602
Approvals
ENEC, UL recognised component, CSA certified
Approvals
ENEC, UL recognised component, CSA certified
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-Off |
| Panel Cut Out Width | 11mm |
| Panel Cut Out Height | 30mm |
| Contact Current Rating | 16 A@ 250 V ac |
| Illuminated | No |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 125 V, 250V |
| Panel Cut Out Size | 30 x 11mm |
