RS PRO SPST, On-None-Off Rocker Switch

RS Stock No.:: 185-8228
Manufacturer:: RS PRO

20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

364 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

Was MYR9.36

You pay

MYR8.89

Units	Per Unit
1 - 49	MYR8.89
50 - 99	MYR8.64
100 - 149	MYR8.30
150 - 749	MYR8.08
750 +	MYR6.65

RS Stock No.:: 185-8228
Manufacturer:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

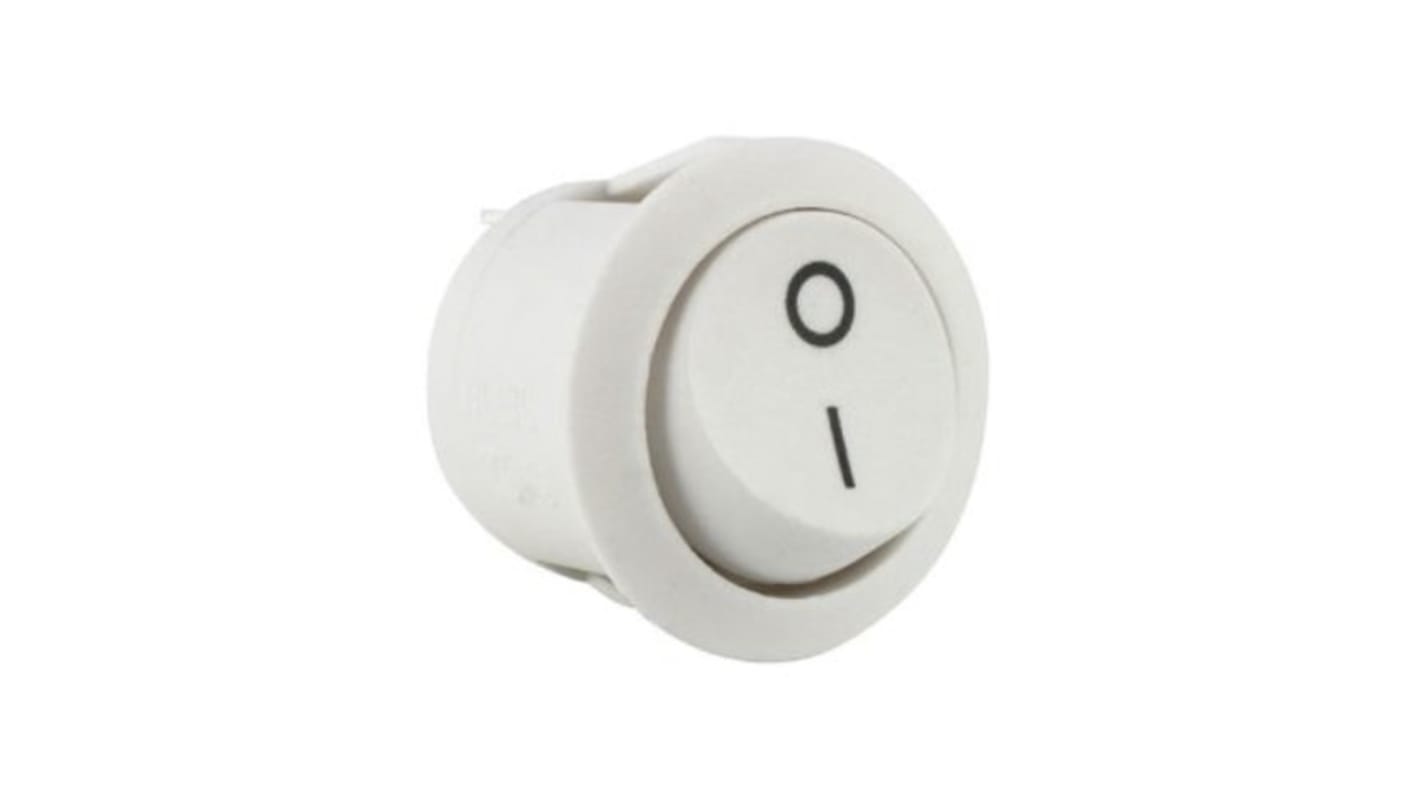

RS PRO SPST Rocker Switch

The RS PRO single pole single throw (SPST) rocker switch has on-off latching action and had an electrical rating of 250VAC and 10A. The round nylon case and button are white in colour with silver-plated copper terminals and has a panel cut-out of 20.6mm width and 20.8mm in height.

Features and Benefits

• 01 switch marking
• Electrical life is 10,000 cycles
• Maximum contact resistance is 30Mohm
• Operation force ranges between 300gf and 600gf
• Operation temperature ranges between -25°C and 125°C

Applications

• Computer peripherals
• Medical instrumentation

Certifications

• UL approved
• RoHS compliant

Specifications

Attribute	Value
Contact Configuration	SPST
Switch Operation	On-None-Off
Panel Cut Out Width	20.6mm
Panel Cut Out Height	20.8mm
Contact Current Rating	6 A
Illuminated	No
Actuator Colour	White
Legend Text	0; 1
Actuator Shape	Rectangular
Panel Cut Out Size	20.8 x 20.6mm
AC Voltage Rating	250V
Contact Material	AgNi (15) Alloy
Case Material	Nylon
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+125°C
Contact Resistance	30mΩ
Mechanical Life	10,000Cycles
Operating Temperature Range	-25 → +125°C
