RS PRO SPDT, On-Off-On Rocker Switch
- RS Stock No.:
- 185-8227
- Manufacturer:
- RS PRO
60 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
125 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR9.67
| Units | Per Unit |
| 1 - 49 | MYR9.67 |
| 50 - 99 | MYR9.41 |
| 100 - 149 | MYR9.05 |
| 150 - 749 | MYR8.82 |
| 750 + | MYR7.26 |
- RS Stock No.:
- 185-8227
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

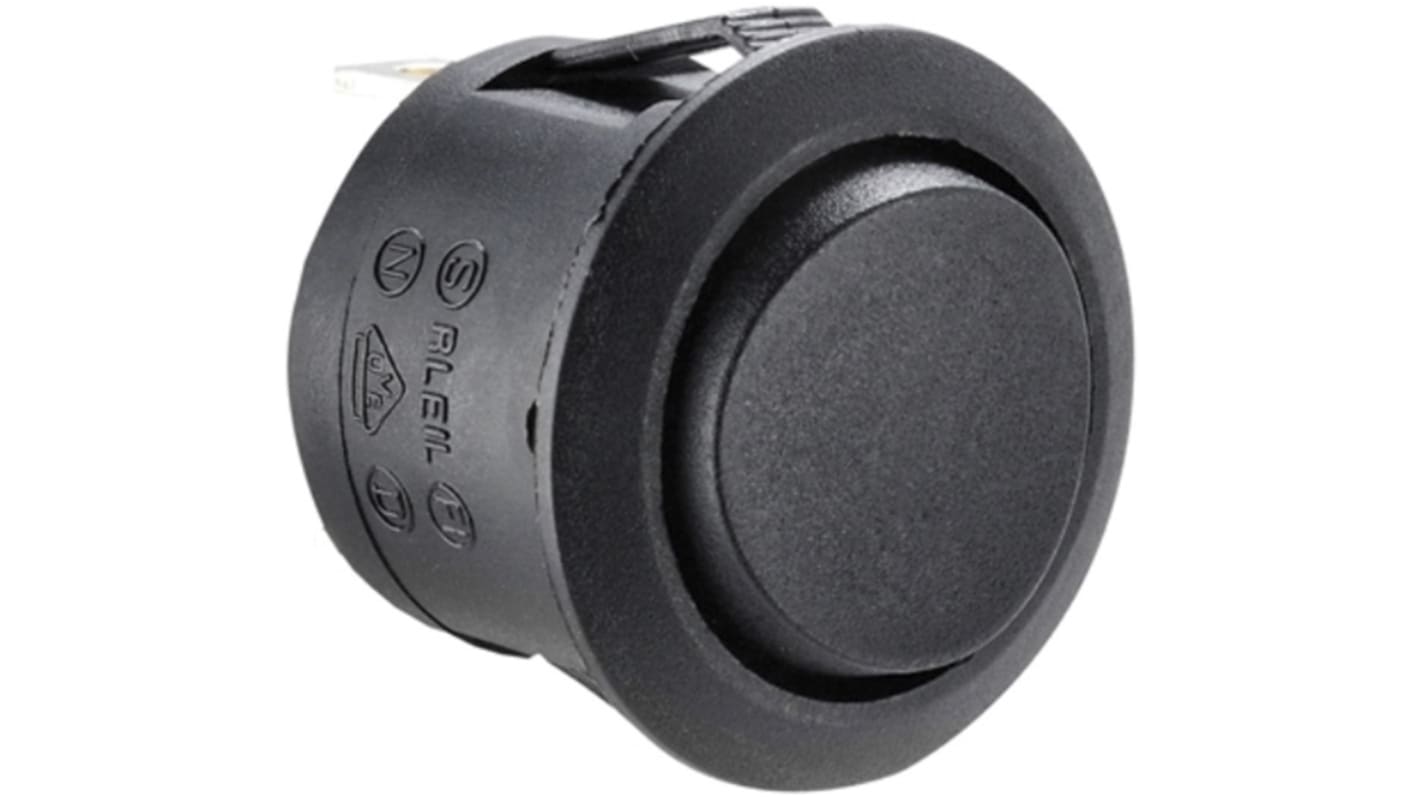

RS PRO SPDT Rocker Switch
The RS PRO single pole double throw (SPDT) rocker switch has on-off latching action and had an electrical rating of 250VAC and 16A. The round nylon case and button are black in colour with silver-plated copper terminals and has a panel cut-out of 20.6mm width and 20.8mm in height.
Features and Benefits
• Electrical life is 10,000 cycles
• Maximum contact resistance is 30Mohm
• Operation force ranges between 300gf and 600gf
• Operation temperature ranges between -25°C and 125°C
• Maximum contact resistance is 30Mohm
• Operation force ranges between 300gf and 600gf
• Operation temperature ranges between -25°C and 125°C
Applications
• Computer peripherals
• Medical instrumentation
• Medical instrumentation
Certifications
• UL approved
• RoHS compliant
• RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 20.6mm |
| Panel Cut Out Height | 20.8mm |
| Contact Current Rating | 6 A |
| Illuminated | No |
| Actuator Colour | Black |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 20.8 x 20.6mm |
| Mechanical Life | 10,000Cycles |
| Operating Temperature Range | -25 → +125°C |
| Case Material | Nylon |
| Contact Resistance | 30mΩ |
| Maximum Operating Temperature | +125°C |
| Contact Material | AgNi (15) Alloy |
| Minimum Operating Temperature | -25°C |
