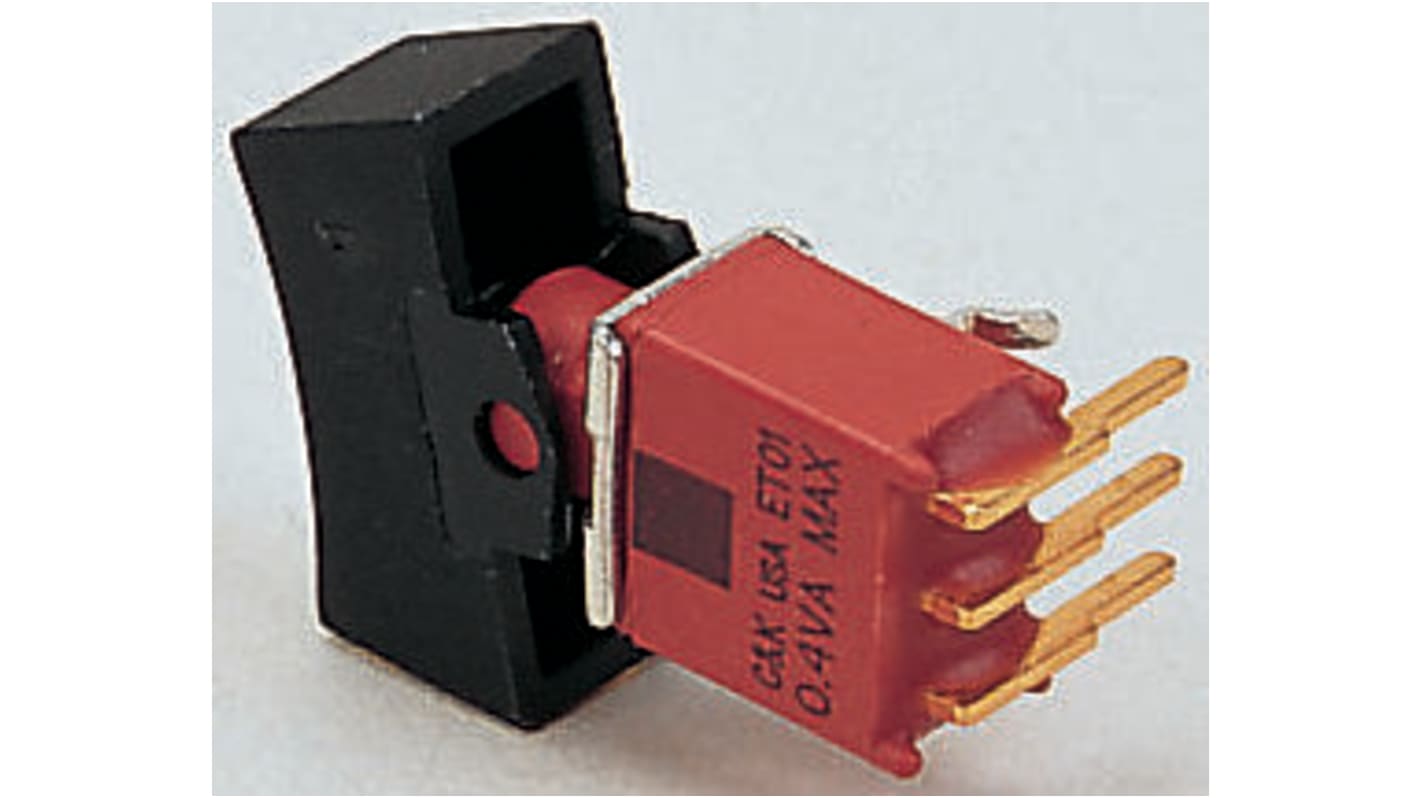

C & K Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel Mount

  • RS Stock No. 179-1117
  • Mfr. Part No. ET03J6ABE2
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
Non Compliant
Product Details

ET Series PCB Mounting

Single pole centre off switch suitable for PCB mounting
Right angled terminals (Through hole PCB mounting)
Sealed against solder and cleaning press contaminants
Gold-plated contacts suitable for low-level switching
Nylon 6.6 (UL 94 V-0) case, Nylon actuator

Approvals

UL; CSA

Approvals

UL; CSA

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation On-Off-On
Panel Cut Out Width 7.11mm
Panel Cut Out Height 15.75mm
Contact Current Rating 400 mA @ 20 V
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Right Angle PC Pin
Contact Material Gold Over Nickel Plated Copper Alloy
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
Panel Cut Out Size 15.75 x 7.11mm
Contact Resistance 20mΩ
Operating Temperature Range -30 → +85°C
52 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 37.62
units
Per unit
1 - 49
MYR37.62
50 - 99
MYR30.25
100 - 249
MYR24.73
250 - 499
MYR21.08
500 +
MYR19.22
