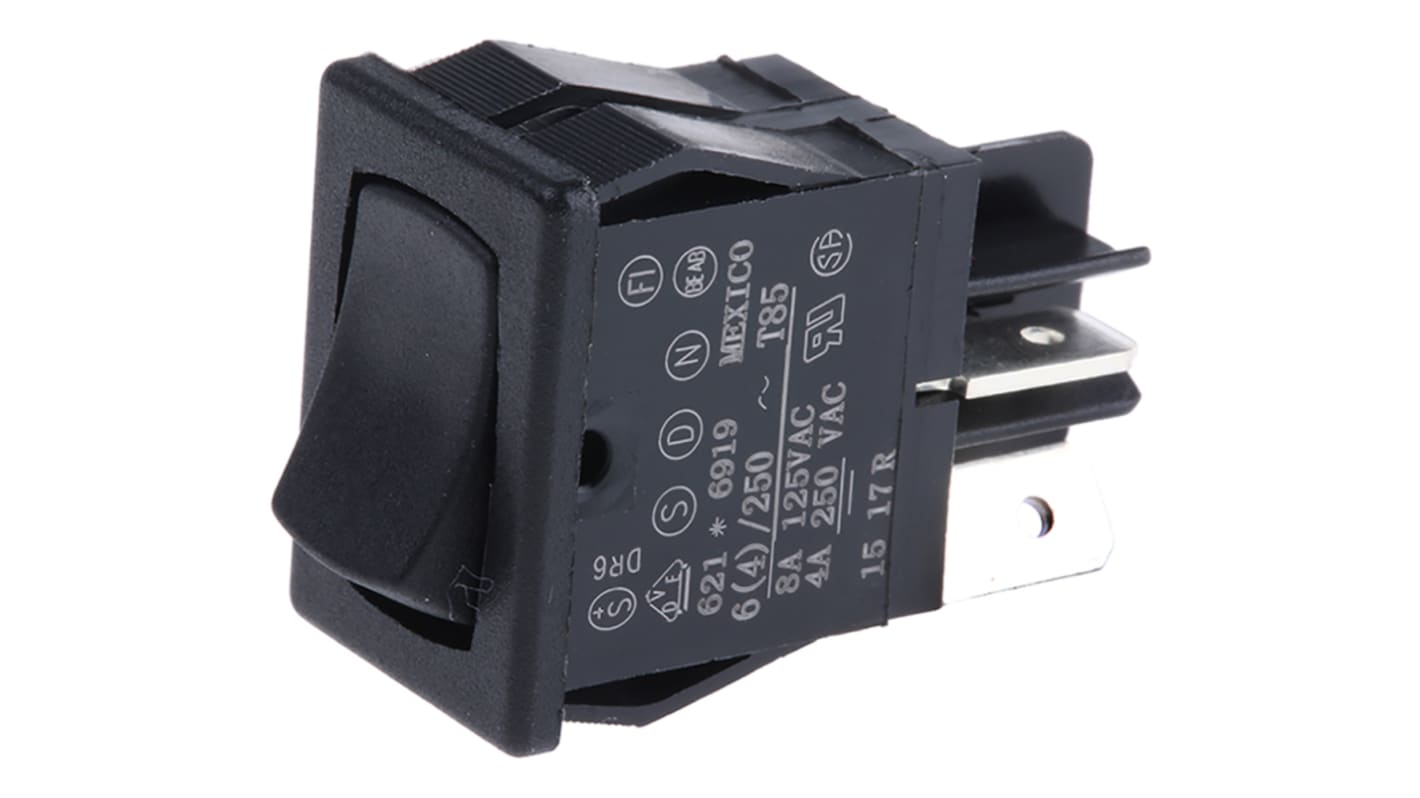

Carlingswitch SPST, On-None-Off Rocker Switch Panel Mount

RS Stock No.:: 119-0592
Mfr. Part No.:: 621-1691900NXRS
Manufacturer:: Carlingswitch

Carlingswitch SPST, On-None-Off Rocker Switch Panel Mount

2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR17.29

Units	Per Unit
1 +	MYR17.29

RS Stock No.:: 119-0592
Mfr. Part No.:: 621-1691900NXRS
Manufacturer:: Carlingswitch

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MX

Product Details

High Inrush Rocker Switches

Stock numbers 119-0592 and 198-8490 have a 100A high inrush capability and 3mm contact gap in the off position
The on/off position of the DPST version is marked ’I’ and ’O’
Connection is via 4.8x0.8mm blade terminals

Approvals

BEAB, NEMKO, SEMKO, DEMKO, FIMKO, VDE, UL, CSA

Approvals

ENEC; UL; CSA

Specifications

Attribute	Value
Contact Configuration	Single Pole Single Throw (SPST)
Switch Operation	On-None-Off
Panel Cut Out Width	12.9mm
Panel Cut Out Height	19.2mm
Contact Current Rating	8 A @ 125 V ac
Illuminated	No
Mounting Type	Panel Mount
Terminal Type	Quick Connect
AC Voltage Rating	125V
Actuator Shape	Rectangular
Panel Cut Out Size	19.2 x 12.9mm
Operating Temperature Range	0 → +85°C
Maximum Operating Temperature	+85°C
Mechanical Life	100000Operations
Minimum Operating Temperature	0°C
