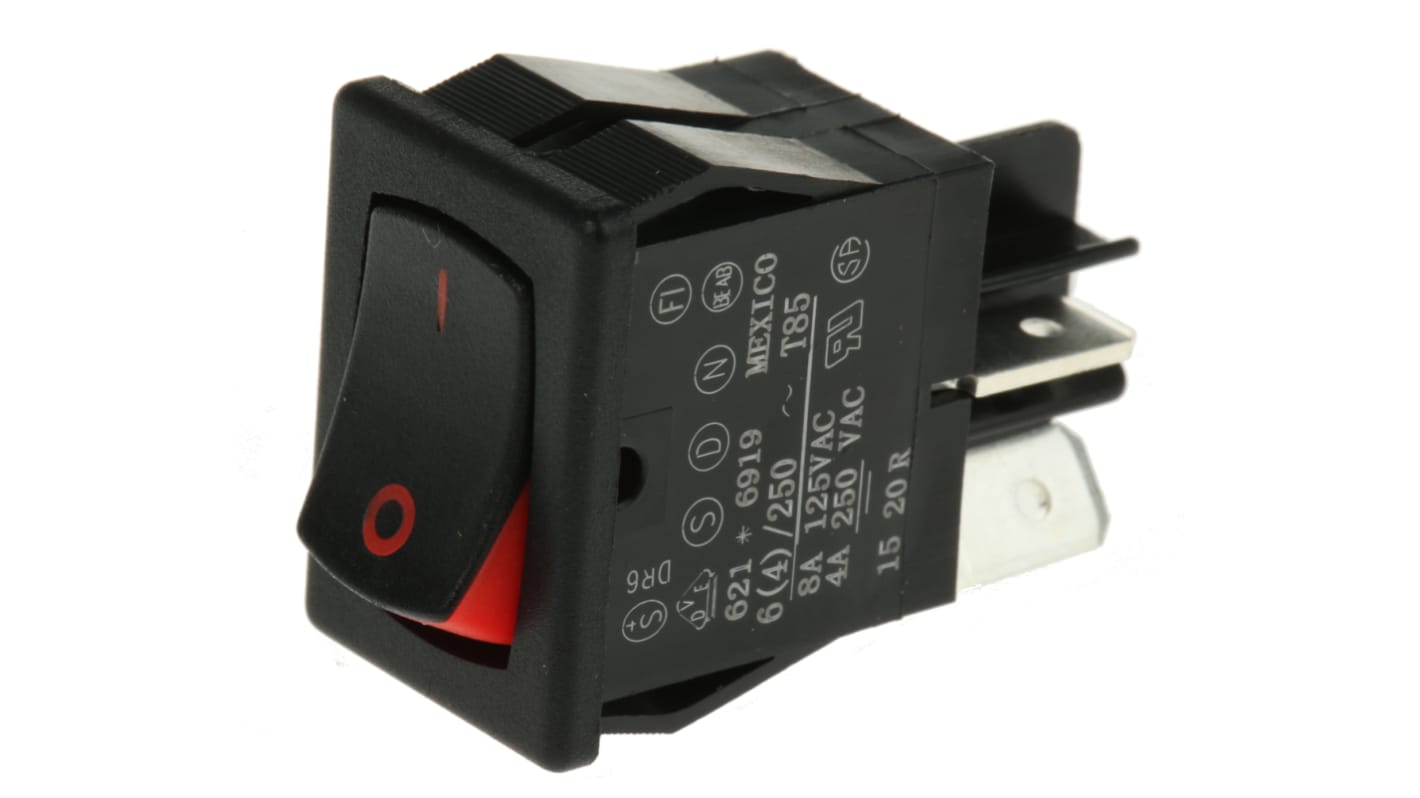

Carlingswitch SPST, On-None-Off Rocker Switch Panel Mount
- RS Stock No.:
- 664-525
- Mfr. Part No.:
- 621-1691909VXRS
- Manufacturer:
- Carlingswitch
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
136 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR6.09
| Units | Per Unit |
| 1 - 49 | MYR6.09 |
| 50 - 99 | MYR5.97 |
| 100 - 249 | MYR5.79 |
| 250 - 499 | MYR5.68 |
| 500 + | MYR5.57 |
- RS Stock No.:
- 664-525
- Mfr. Part No.:
- 621-1691909VXRS
- Manufacturer:
- Carlingswitch
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Mini Visi Rocker® Switches
2 shot moulded actuators, coloured sections become visible in the ON position
Inrush rating: 80A peak
3mm contact separation in off position
Mechanical life: >5x104 operations
Max. temperature: +85°C
Connection by 4.8 x 0.8 fast on terminals
Direct soldering not recommended
Inrush rating: 80A peak
3mm contact separation in off position
Mechanical life: >5x104 operations
Max. temperature: +85°C
Connection by 4.8 x 0.8 fast on terminals
Direct soldering not recommended
Approvals
VDE; UL; CSA; TUV; SEMKO; NEMKO
Approvals
VDE; UL; CSA; TUV; SEMKO; NEMKO
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.4mm |
| Contact Current Rating | 8 A @ 125 V ac |
| Illuminated | No |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 19.4 x 12.9mm |
| AC Voltage Rating | 125V |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | 0 → +85°C |
| Mechanical Life | 100000Operations |
| Minimum Operating Temperature | 0°C |
