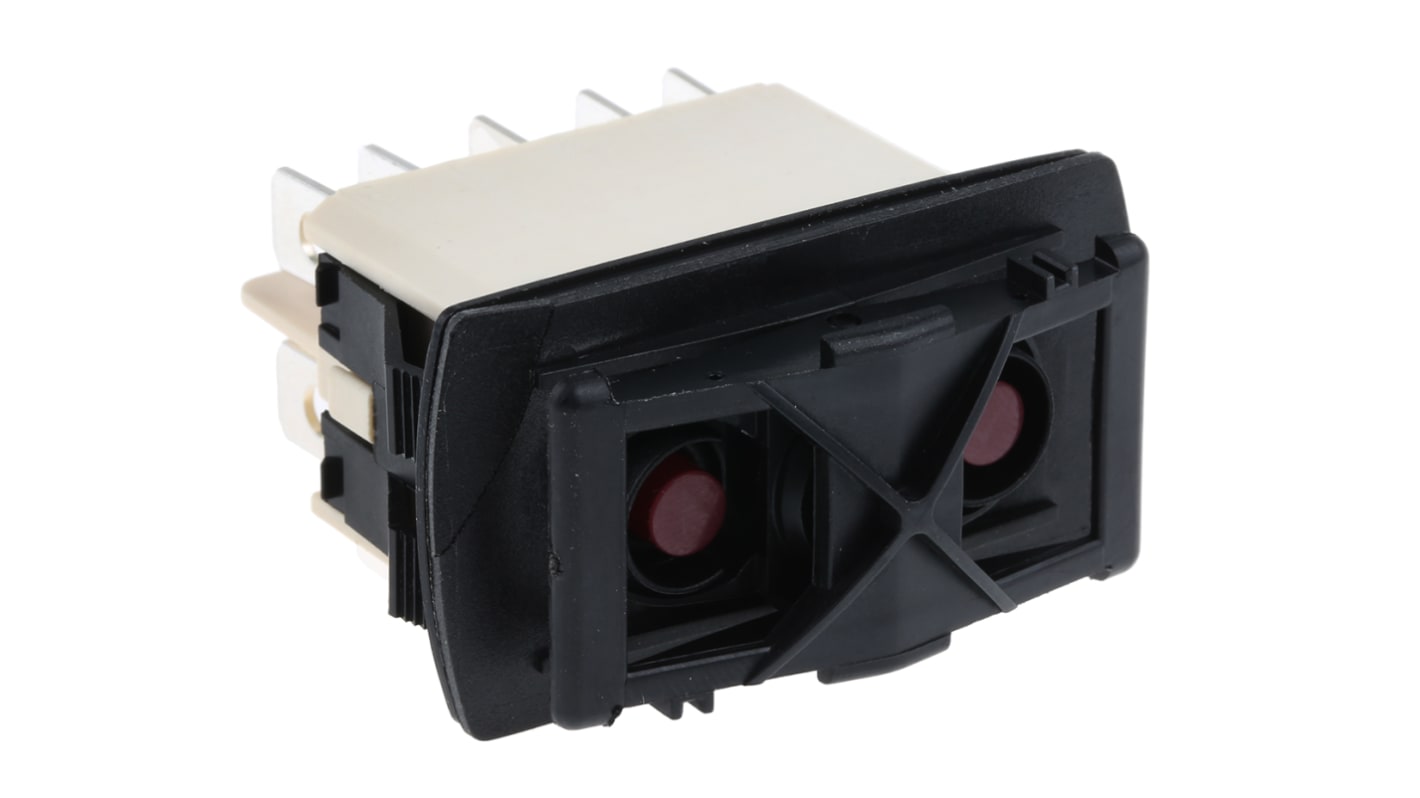

APEM Illuminated Double Pole Double Throw (DPDT), (On)-Off-(On) Rocker Switch Panel Mount

  • RS Stock No. 507-324
  • Mfr. Part No. KR47CAKDDG
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

KR Rocker Cases - Double Pole

Double pole 10A/24Vdc 'snap-in' rocker switch cases, fitted with 6.35x0.8mm quick connect terminals
Available in non illuminated or LED illuminated versions (with 12V or 24V red, green or amber single or twin LED's)
A large variety of switch configurations and actuator colours/markings available
Suitable actuators should be ordered separately (see typically 507-267 and range)
To facilitate wiring harness preparation and quick panel assembly, all double pole switch cases can also be used with rear crimp connector housing 507-576, accepting up to 10 crimps terminals (except for 507-431, which can be used with connector housing 507-560)
Other accessories include switch case housings 507-611 & 507-615, panel blanking plugs 507-318 and actuator removal tool 507-312
Switch case panel knockout 36.80x21.08mm
Operating Temperature -40 to +85 °C
Contact Resistance 10 mΩ
Dielectric Strength 2,000 Vrms 50 Hz min. between terminals

//media.rs-online.com/t_line/L0507277-01.gif
//media.rs-online.com/t_line/L0507520-01.gif

IP68 Modular KR Series

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation (On)-Off-(On)
Panel Cut Out Width 21.08mm
Panel Cut Out Height 36.8mm
Contact Current Rating 5 A @ 24 V dc
Illuminated Yes
Mounting Type Panel Mount
IP Rating IP68
Terminal Type Quick Connect, Solder
Panel Cut Out Size 36.8 x 21.08mm
Mechanical Life 150000Operations
Operating Temperature Range -40 → +85°C
Case Material Nylon 66
Contact Material Silver
Contact Resistance 10mΩ
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
136 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 74.85
units
Per unit
1 - 49
MYR74.85
50 - 99
MYR62.35
100 - 249
MYR58.44
250 - 499
MYR55.88
500 +
MYR53.42
