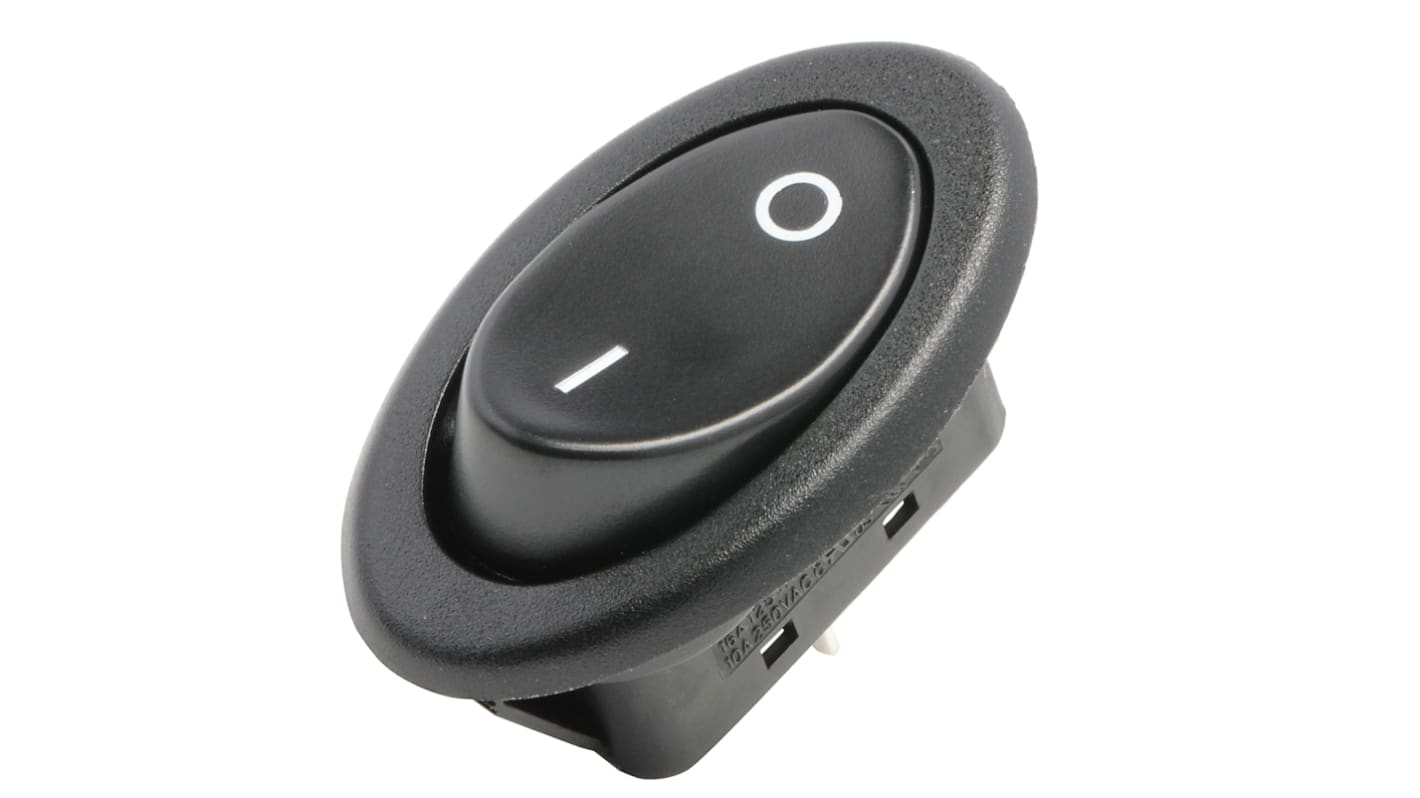

RS PRO Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 419-823
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Oval Rocker Switches (non-illuminated)

Convenient snap-in front mounting SPST oval switches
Attractive, ergonomic design available in un-marked or O/I marked options
Nylon Housing to UL 94V-2 with silver plated brass terminals
Fitted with 6.35mm blade style terminals
Panel cut-out 35.2 x 17.8mm

Approvals

VDE, ENEC, UR

//media.rs-online.com/t_line/L0419823-01.gif
//media.rs-online.com/t_line/L0419833-01.gif
Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Panel Cut Out Width 35.2mm
Panel Cut Out Height 17.8mm
Contact Current Rating 10 A @ 125 V ac
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Actuator Shape Round
Minimum Operating Temperature -20°C
Maximum Operating Temperature +85°C
AC Voltage Rating 125 V, 250 V
Contact Resistance 50mΩ
Case Material Nylon
Operating Temperature Range -20 → +85°C
Contact Material Silver Plated Copper
Panel Cut Out Size 17.8 x 35.2mm
27 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 7.72
units
Per unit
1 - 49
MYR7.72
50 - 99
MYR7.00
100 - 249
MYR6.37
250 - 499
MYR5.94
500 +
MYR5.74
