Carlingswitch SPST Rocker Switch Panel Mount
- RS Stock No.:
- 320-231
- Mfr. Part No.:
- RCR-30086000
- Manufacturer:
- Carlingswitch
154 In Local stock for delivery in 2-3 working days, delivery time may vary for certain locations or FTZ
619 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR31.37
| Units | Per Unit |
| 1 - 49 | MYR31.37 |
| 50 - 99 | MYR30.73 |
| 100 - 249 | MYR30.10 |
| 250 - 1249 | MYR29.50 |
| 1250 + | MYR24.28 |
- RS Stock No.:
- 320-231
- Mfr. Part No.:
- RCR-30086000
- Manufacturer:
- Carlingswitch
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

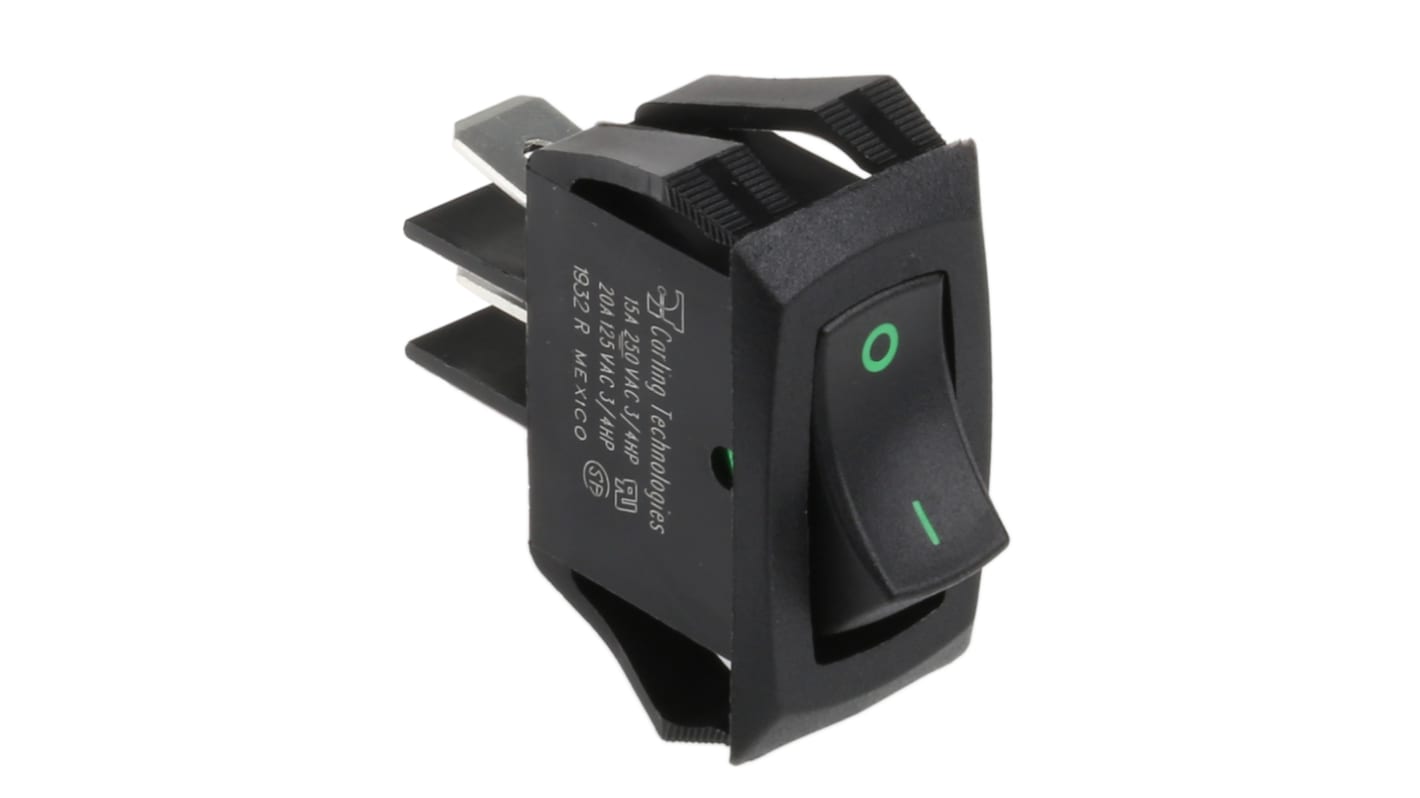

Midi Visi Rocker®
Shot moulded actuators with red or green sections, which become visible in the ON position
SPST silver-cadmium oxide contacts
Connection via .250in push-on receptacles
Retention barb design enables the switches to fit a range of cut-outs
Polyester/Nylon actuator, Nylon case
Ideal where illuminated switches are unsuitable
Suitable hole cutter see stock no. 614-334
SPST silver-cadmium oxide contacts
Connection via .250in push-on receptacles
Retention barb design enables the switches to fit a range of cut-outs
Polyester/Nylon actuator, Nylon case
Ideal where illuminated switches are unsuitable
Suitable hole cutter see stock no. 614-334
Approvals
VDE; UL; CSA
Approvals
VDE; UL; CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Panel Cut Out Width | 28.58mm |
| Panel Cut Out Height | 13.97mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Actuator Colour | Black/Green |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 13.97 x 28.58mm |
| Minimum Operating Temperature | 0°C |
| Case Material | Nylon |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | 0 → +85°C |
| Contact Material | Silver Cadmium Alloy |
