RS PRO Illuminated SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 273-299
- Manufacturer:
- RS PRO
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
309 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR13.82
You pay
MYR11.55
| Units | Per Unit |
| 1 - 49 | MYR11.55 |
| 50 - 99 | MYR11.32 |
| 100 - 249 | MYR11.09 |
| 250 - 1249 | MYR10.86 |
| 1250 + | MYR8.94 |
- RS Stock No.:
- 273-299
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details

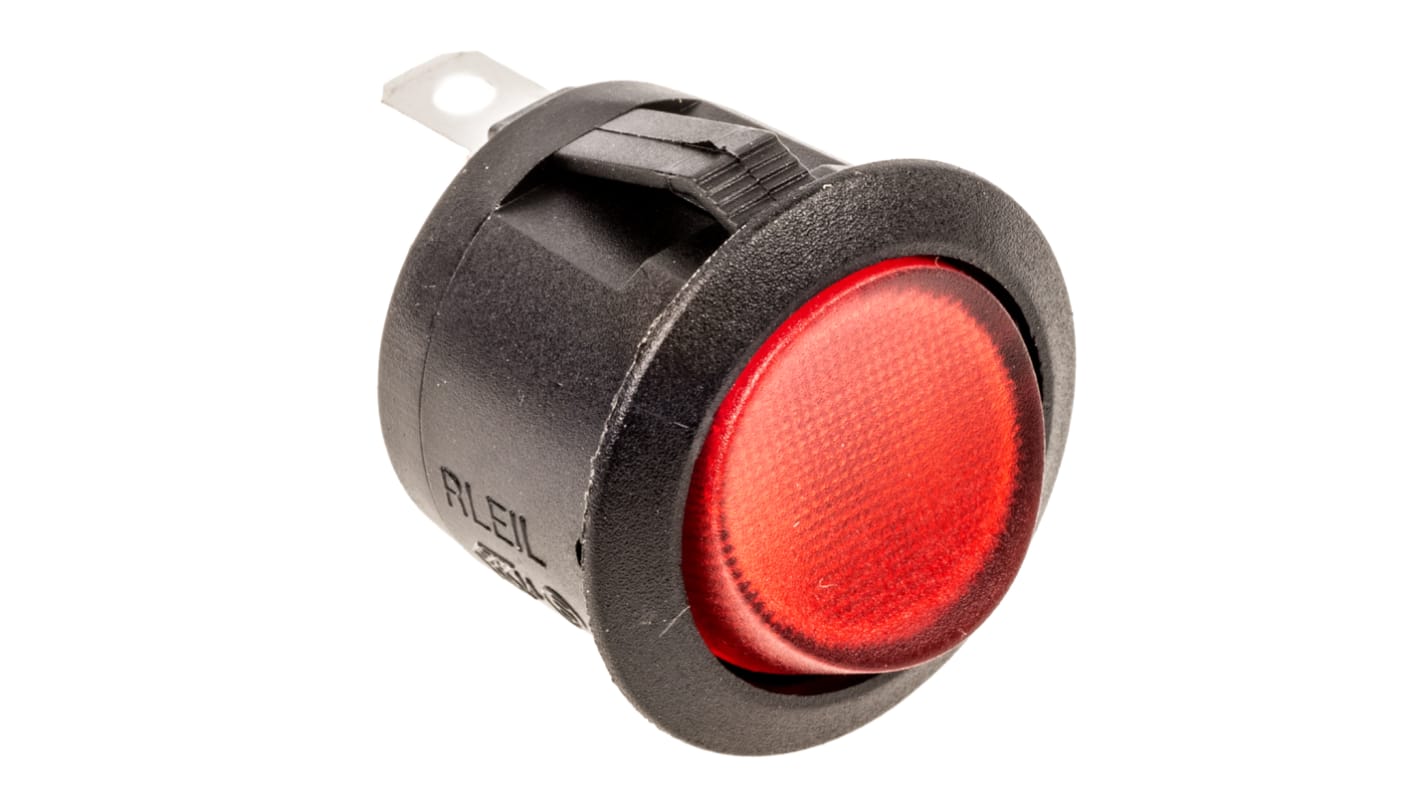

RS PRO SPST Non-Latching Red Illuminated Rocker Switch 250V ac
A robust and reliable illuminated non latching rocker switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with an impact and flame retardant Nylon 66 case featuring a tough Polycarbonate button for a rocker switch fit for industrial and commercial environments.
The RS PRO illuminated rocker switch features a black body with red illumination when in the on position and Silver plated Copper terminals for easy panel mounting in a 20mm panel cut out.
The red on off switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and reliable rocker switch fit for a wide range of environments and applications.
Features and Benefits
- Illuminated red rocker switch
- Non latching
- On-Off action
- SPST contact configuration
- Flame retardant Nylon case
- Polycarbonate button
- Operational force of 300 to 600 gf
- Silver plated Copper terminals
- Quick connect terminals (4.8 x 0.8mm)
- Insulation resistance of 500 Vdc @ 100 mΩ
- Silver contacts
- Contact diameter of 2.3mm
- Panel mount
- Operational life of 10,000 cycles
Splash Proof Cap
For a clear splash-proof protective cap providing a IP55 sealed rating please see RS PRO 793-2569
Standards and Approvals: VDE, UL, RoHS compliant
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-Off |
| Panel Cut Out Diameter | 20mm |
| Contact Current Rating | 6 A @ 250 V ac |
| Illuminated | Yes |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Panel Cut Out Size | 20mm |
| AC Voltage Rating | 250V |
| Actuator Shape | Round |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +125°C |
| Mechanical Life | 10000Cycles |
| Contact Resistance | 30mΩ |
| Contact Material | Silver Nickel Alloy |
| Case Material | Nylon |
