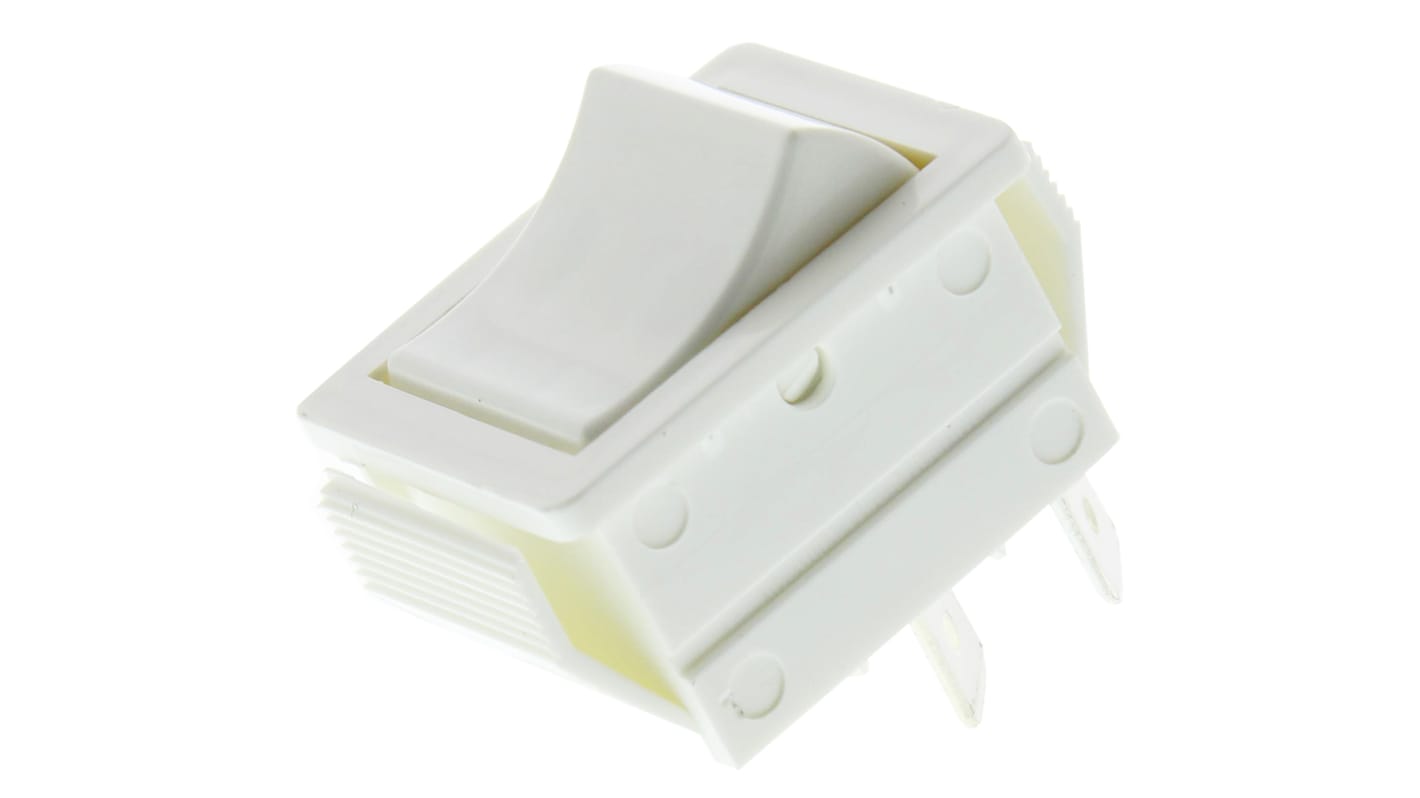

Arcolectric Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 199-138
  • Mfr. Part No. C1350VQAAA
  • Manufacturer Arcolectric
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

Non-Illuminated

Snap-mounting switches with silver contacts
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345

Approvals

ENEC

Approvals

ENEC

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation Latching
Panel Cut Out Width 22.5mm
Panel Cut Out Height 28.2mm
Contact Current Rating 16 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Quick Connect
Panel Cut Out Size 28.2 x 22.5mm
93 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 10.59
units
Per unit
1 - 49
MYR10.59
50 - 99
MYR9.57
100 - 249
MYR8.70
250 - 499
MYR8.08
500 +
MYR7.72
