- RS Stock No.:
- 199-100
- Mfr. Part No.:
- C1300VQAAC
- Manufacturer:
- Arcolectric (Bulgin) Ltd
13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
210 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
Was MYR7.02
You pay
MYR6.67
units | Per Unit |
1 - 4 | MYR6.67 |
5 - 9 | MYR6.39 |
10 - 24 | MYR6.12 |
25 + | MYR5.99 |
- RS Stock No.:
- 199-100
- Mfr. Part No.:
- C1300VQAAC
- Manufacturer:
- Arcolectric (Bulgin) Ltd
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TN

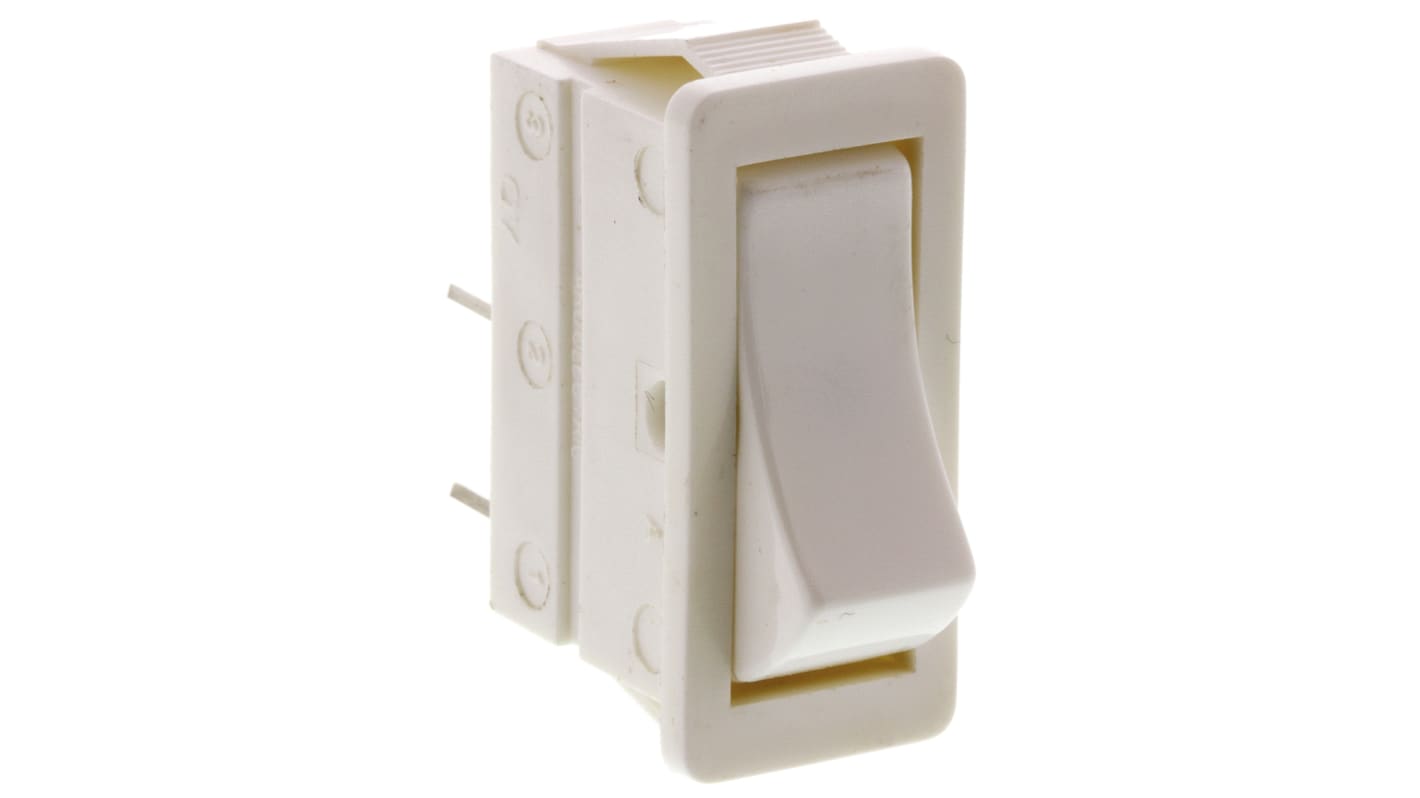

Product Details
Non-Illuminated
Snap-mounting switches with silver contacts
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345
Connection via .250in push-on receptacles
Contact rating 16 (4)A @ 250Vac
Contact resistance <100mΩ
Inrush rating 150A
Nylon 6.6; Polycarbonate actuator, Nylon 6.6 case
Dielectric Strength >1kV (Across Open Contacts); >3kV (Between Poles); >4kV (Between Live Parts and Accessible Metal)
Insulation Resistance >20mΩ
IP Rating IP40
Number Of Operations >104
Hole cutters; single-pole 543-721; double-pole 545-345
Approvals
ENEC
Approvals
ENEC
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-Off |
Panel Cut Out Width | 11.5mm |
Panel Cut Out Height | 28.2mm |
Contact Current Rating | 16 A @ 250 V ac |
Illuminated | No |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
AC Voltage Rating | 125 V, 250V |
Panel Cut Out Size | 28.2 x 11.5mm |
Actuator Shape | Rectangular |
