Molex, Avikrimp Insulated Ring Terminal, M3 Stud Size, 1mm² to 2.5mm² Wire Size
- RS Stock No.:
- 790-6911
- Mfr. Part No.:
- 19324-0006
- Manufacturer:
- Molex
50 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
550 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 50)
MYR1.862
| Units | Per Unit | Per Pack* |
| 50 - 200 | MYR1.862 | MYR93.10 |
| 250 + | MYR1.532 | MYR76.60 |
| *price indicative | ||
- RS Stock No.:
- 790-6911
- Mfr. Part No.:
- 19324-0006
- Manufacturer:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

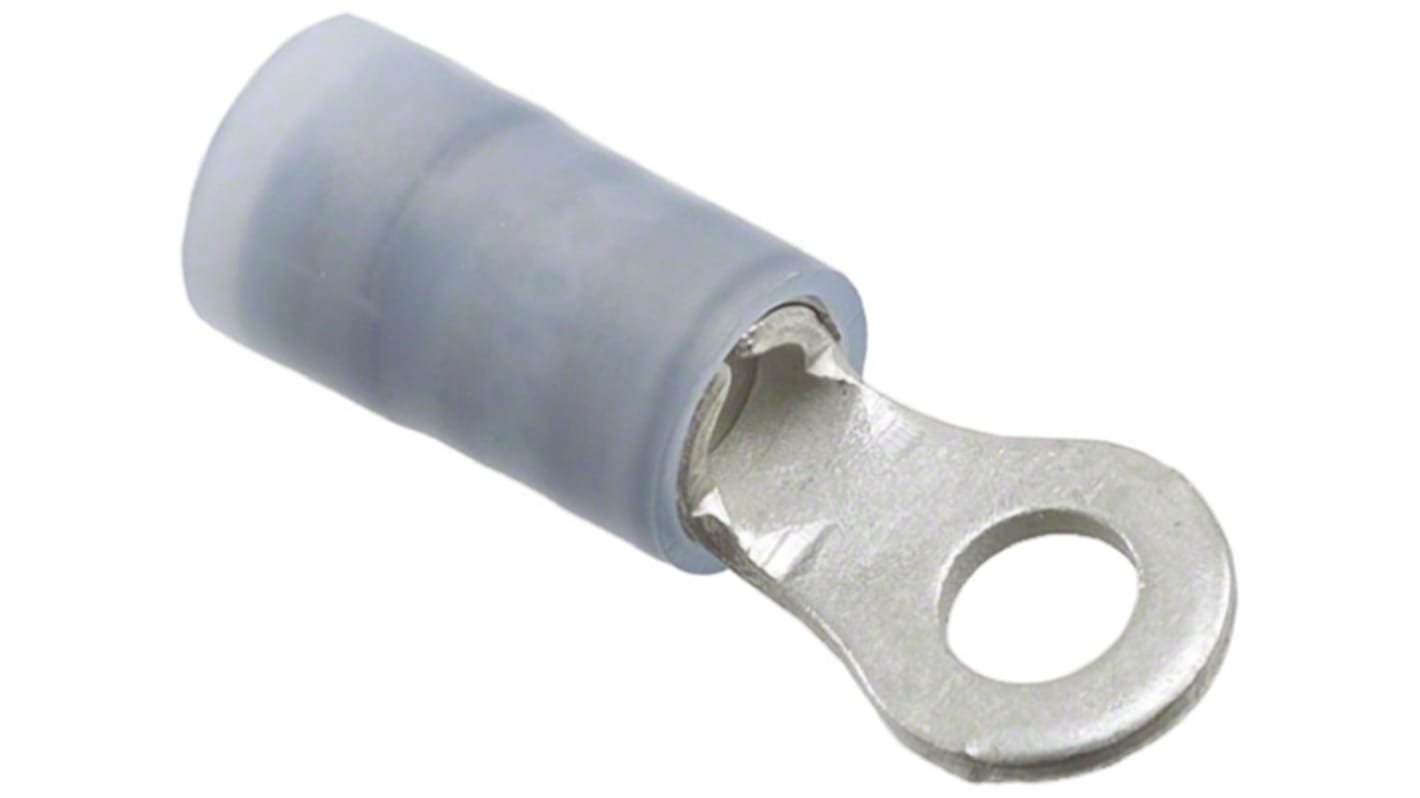

Molex Avikrimp Insulated Crimp Ring Terminals
Avikrimp™ insulated crimp ring terminals with a seamless barrel and halogen free nylon insulation. These Avikrimp™ insulated crimp ring terminals are made from copper with tin plating and have a tin plated brass ferrule. The seamless barrel of these Avikrimp™ crimp ring terminals enables easier crimping by allowing the barrel to rotate in the crimping jaws and are also available in different wire and stud sizes.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Series | Avikrimp |
| Insulation | Insulated |
| Insulation Material | Polyamide |
| Inner Ring Diameter | 3.29mm |
| Outer Ring Diameter | 6.35mm |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size mm² | 1mm² |
| Stud Size | M3 |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Thickness | 0.79mm |
| Overall Length | 16.8mm |
