TE Connectivity, XCT Uninsulated Ring Terminal, 12mm Stud Size, 95mm² to 95mm² Wire Size

RS Stock No.:: 718-7696
Mfr. Part No.:: 709819-5
Manufacturer:: TE Connectivity

TE Connectivity, XCT Uninsulated Ring Terminal, 12mm Stud Size, 95mm² to 95mm² Wire Size

25 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR54.07

Units	Per Unit
1 - 4	MYR54.07
5 - 24	MYR52.94
25 - 74	MYR51.33
75 - 374	MYR50.08
375 +	MYR41.21

RS Stock No.:: 718-7696
Mfr. Part No.:: 709819-5
Manufacturer:: TE Connectivity

Technical data sheets

Legislation and Compliance

Product Details

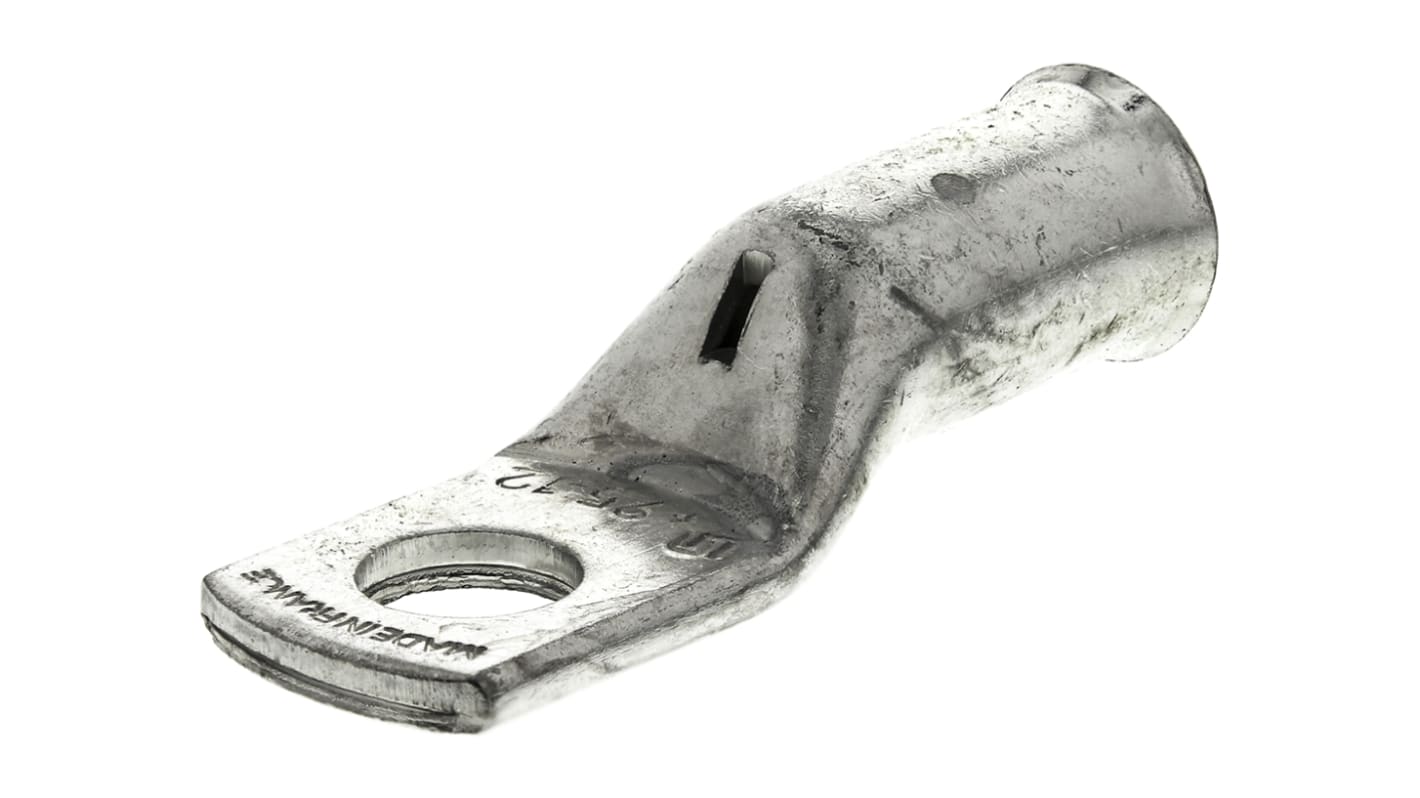

TE Connectivity XCT Type Tubular Ring Terminals

XCT type tubular ring terminals for connecting electrical copper conductors to equipment terminals. These XCT type tubular ring terminals are made from highly conductive electrolytic copper with a bright tin finish for resistance against oxidation and corrosion. The barrels of these XCT type tubular ring terminals have a funnel entry design which allows the wires to be inserted easily. The barrels also have an inspection hole in them for viewing the positioning of the conductor. These XCT type tubular crimp terminals can be crimped by hexagonal compression or indent.

Features and Benefits

• Highly conductive electrolytic copper
• Bright tin finish for resistance against oxidation and corrosion
• Funnel entry barrel for easy wire insertion
• Inspection window in barrel

Standards

Designed to comply with NF C 20 130 French standard

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

TE Connectivity AMPOWER Crimp Terminals

Specifications

Attribute	Value
Series	XCT
Insulation	Uninsulated
Inner Ring Diameter	12.8mm
Minimum Wire Size mm²	95mm²
Maximum Wire Size mm²	95mm²
Maximum Wire Size AWG	4/0AWG
Minimum Wire Size AWG	3/0AWG
Stud Size	12mm
Contact Material	Copper
Contact Plating	Tin
Overall Length	70mm
