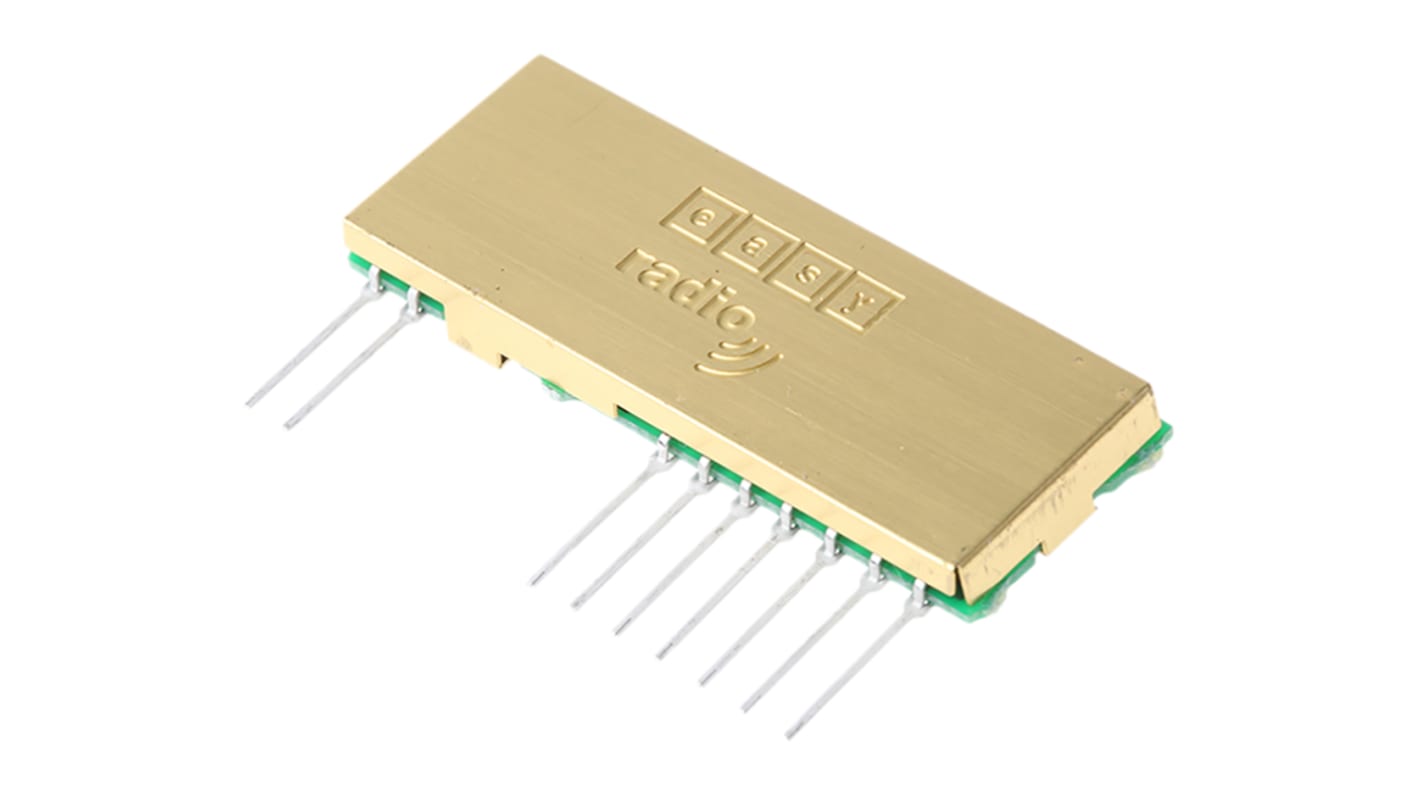

Easy Radio ER400RS-02 RF Receiver Module 433 MHz, 3.3 → 5.5V

  • RS Stock No. 532-4373
  • Mfr. Part No. ER400RS-02
  • Manufacturer Easy Radio
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

ER400RS-02 easyRadio Receiver Module

The ER400RS-02 easyRadio receiver is a complete system-on-module that combines a high performance very low power RF receiver, a microcontroller and a voltage regulator.

RF Carrier Frequency: 433MHz ISM band
Modulation: FSK
Receiver Sensitivity: -103dBm @ 19.2kbps, 0.1% BER
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Rx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 checking
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Approvals

ETSI

Wireless Modules - Low Power Radio Solutions

Specifications
Attribute Value
Module Type Receiver
Supported Frequency Bands 433 MHz
Modulation Technique FSK
Maximum RF Data Rate 38.4kbit/s
Maximum Output Power +10dBm
Receiver Sensitivity -105dBm
Supported Bus Interfaces RS232
Supply Voltage 3.3 → 5.5V
Dimensions 38 x 4 x 14mm
Height 14mm
Length 38mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Width 4mm
10 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 146.20
units
Per unit
1 - 9
MYR146.20
10 - 49
MYR134.55
50 +
MYR130.50
